Chapter 4
36 John Deere 7X00/7X10 Series SmarTrax™ Installation Manual

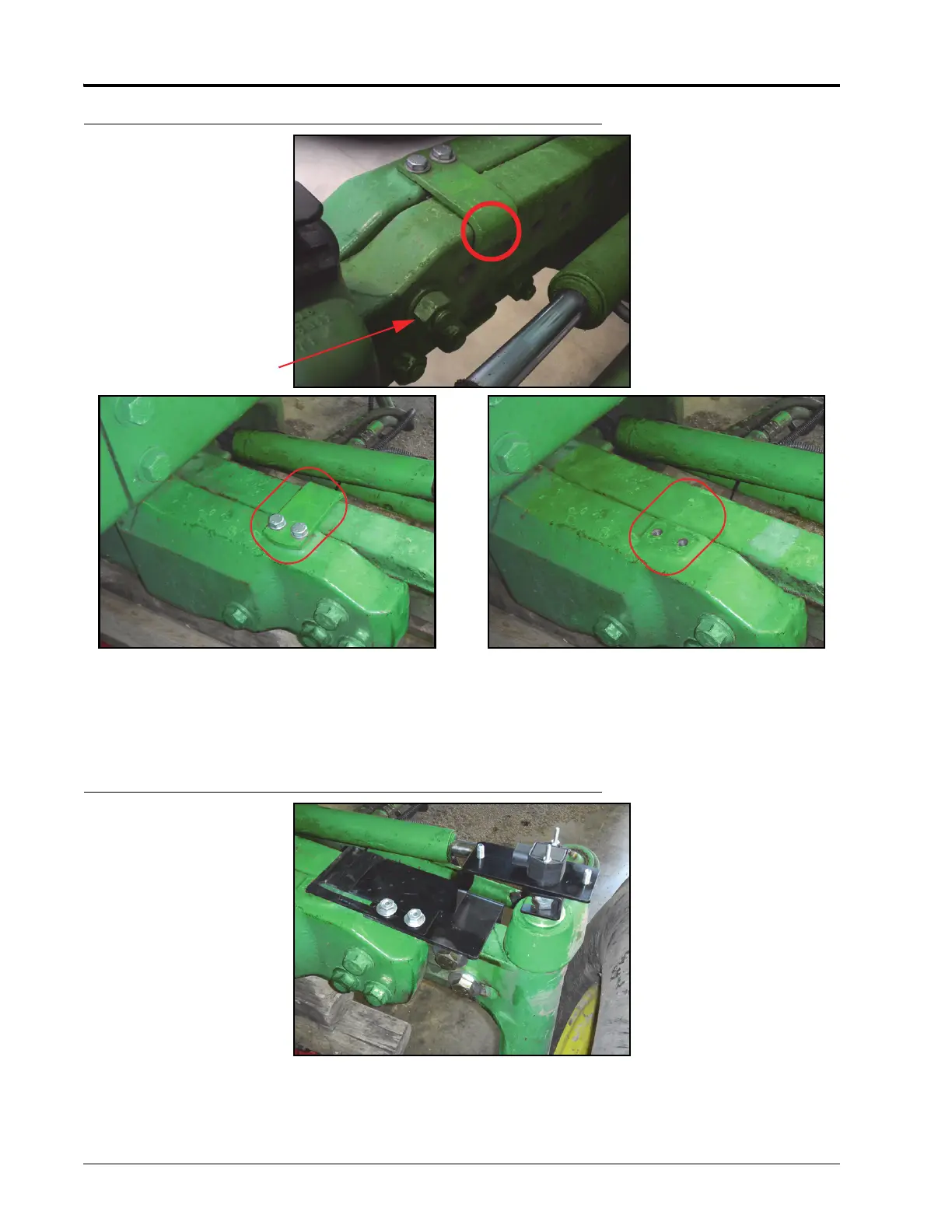

FIGURE 23. Axle Clamp Removed for 3rd Axle Bolt Setting
19. IF THE AXLE BOLT IS ON SETTING 3 ONLY - Remove the axle clamp and bolts.
Note: Keep the axle clamp and bolts for future use. They will be needed if the machine’s axle tread
setting ever needs to be changed.
FIGURE 24. Sensor Bracket Installed
20. Align the sensor mounting bracket over the bolt holes and axle mounting bracket so that the sensor is
positioned above the kingpin.
1
2
3
4
5
6
7
Top
Axle
Bolt
