Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C3000XZ~RFL-C12000XZ
b) The dimensions of the RFL-3000/3000-ABP，RFL-2000/4000-ABP，RFL-4000/2000-ABP，RFL-
4000/4000-ABPare shown in Figure 2 (taking RFL-4000/4000-ABP as an example)

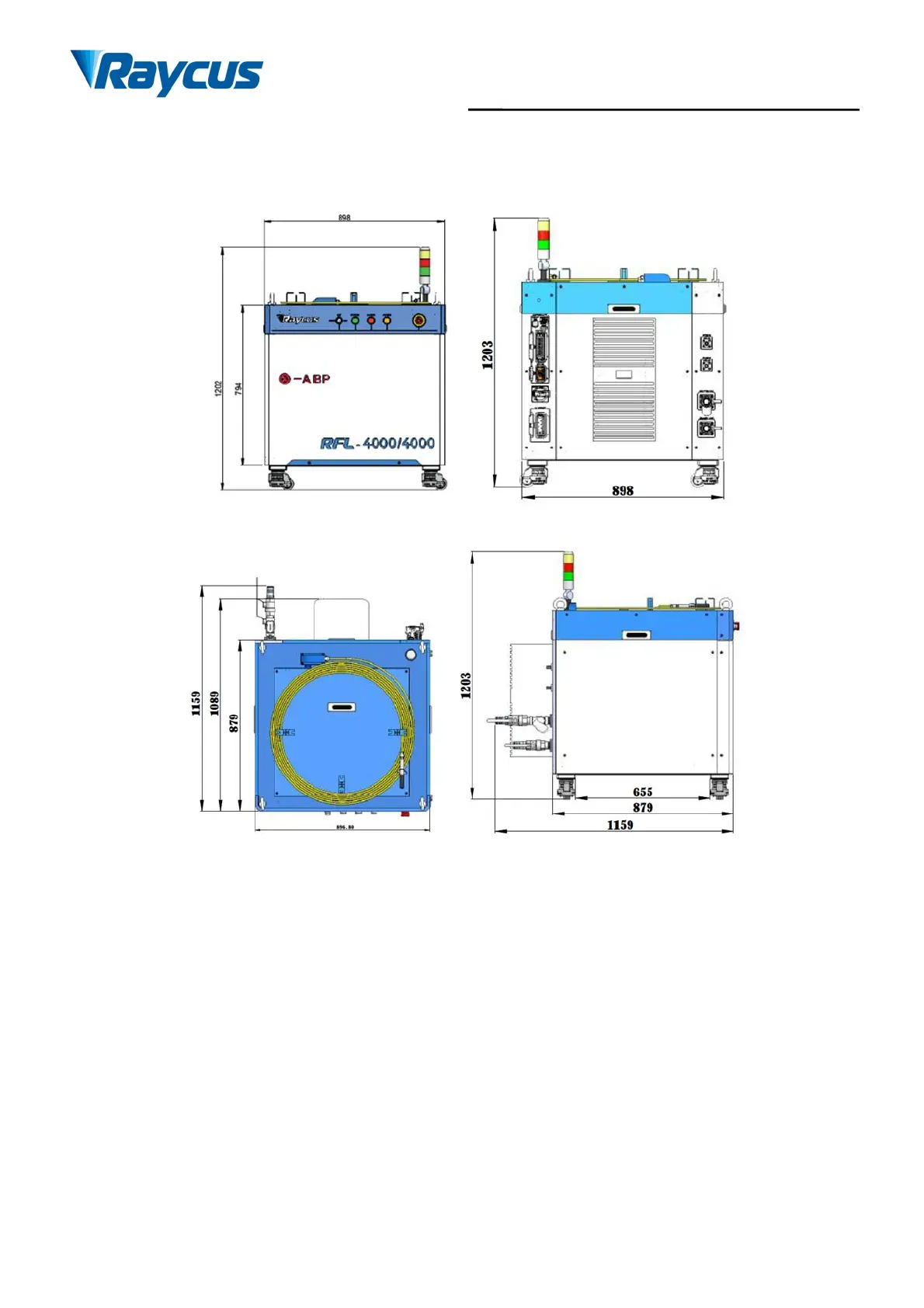

Figure 2.a - Front and rear view
Figure 2.b -Top and left side view
Figure 2 Dimensions of RFL-4000/4000-ABP
RFL-3000/3000-ABP ， RFL-4000/2000-ABP ， RFL-2000/4000-ABPand RFL-4000/4000-ABP
share a same cabinet, and henceforth the same dimensions of 900×960×1160 mm (width × depth ×
height, casters and rings, excluding alarm lights), and the weight is less than 400kg for all four types
of laser.
c) dimensions of the RFL-6000/6000-ABP are shown in Figure 3:
