Raycus ABP Series User Manual

Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C3000XZ~RFL-C12000XZ
36
6 Laser Wiring Mode and Operation Steps
6.1 Internal Control in ON Mode

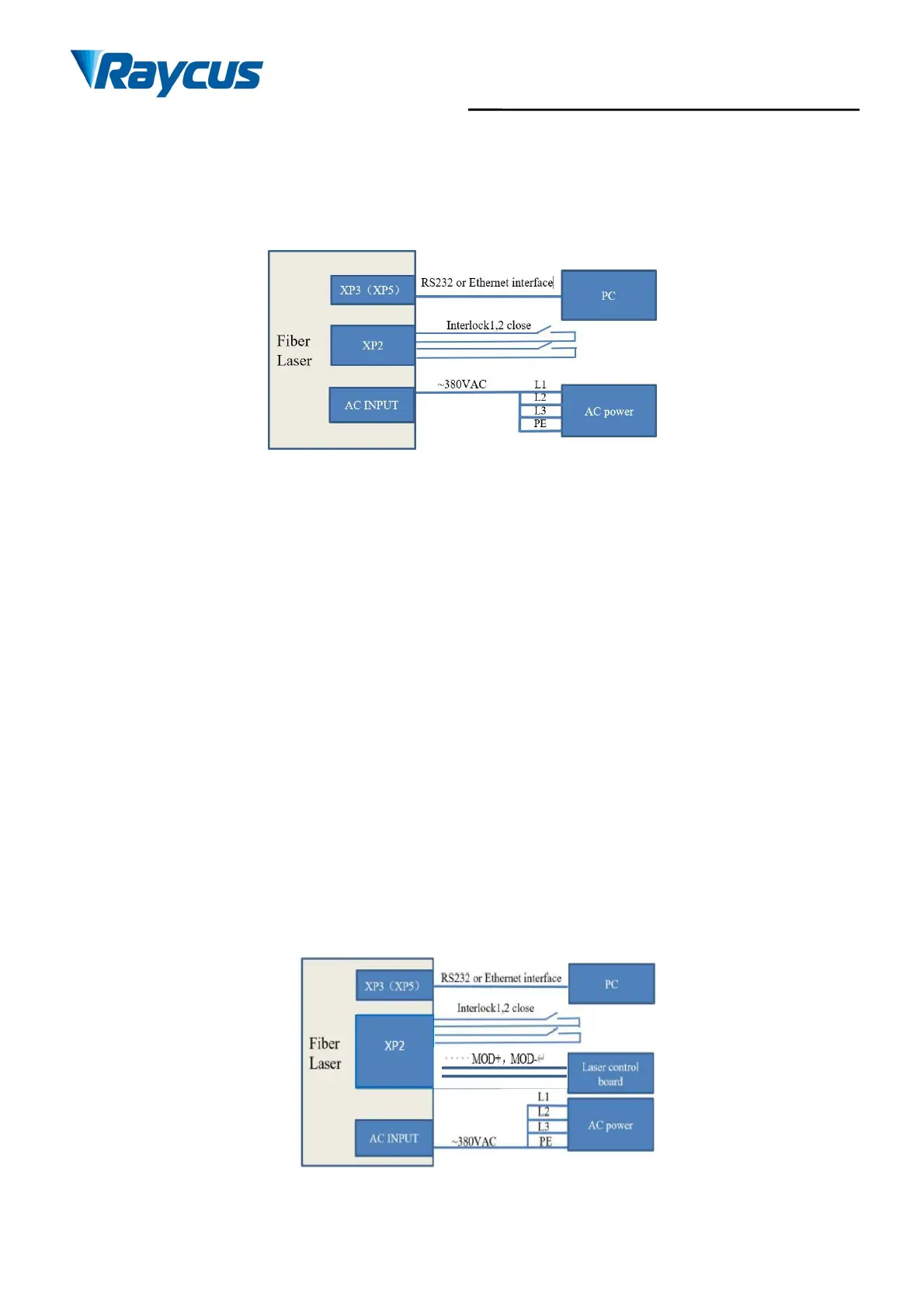

Figure 21 Key switch at “ON” position software mode wiring diagram
Operation method:
a) Turn the knob switch on the rear panel to “ON”;
b) Turn the key switch to “ON”;
c) Open the Raycus Laser Control System;
d) Click the guide laser “ON” button to view the guide laser;
e) Turn off “AD” mode and turn off external control mode; (this mode can be memorized when
power off)
f) Click the main power “ON”;
g) Waiting for “Ready”;
h) Set laser emission parameters;
i) Click the laser “ON”.
6.2 Laser Operating in External Control Mode
Figure 22 Wiring diagram of powerinternal and external control of laser emission by MODE
