8.13 Programming Settings (Waveform Editing)
The laser programming settings interface is as Figure 67.
Figure 67 The programming interface in waveform editing mode
8.13.1 View the Number of WaveBarsInside the CurrentLaser

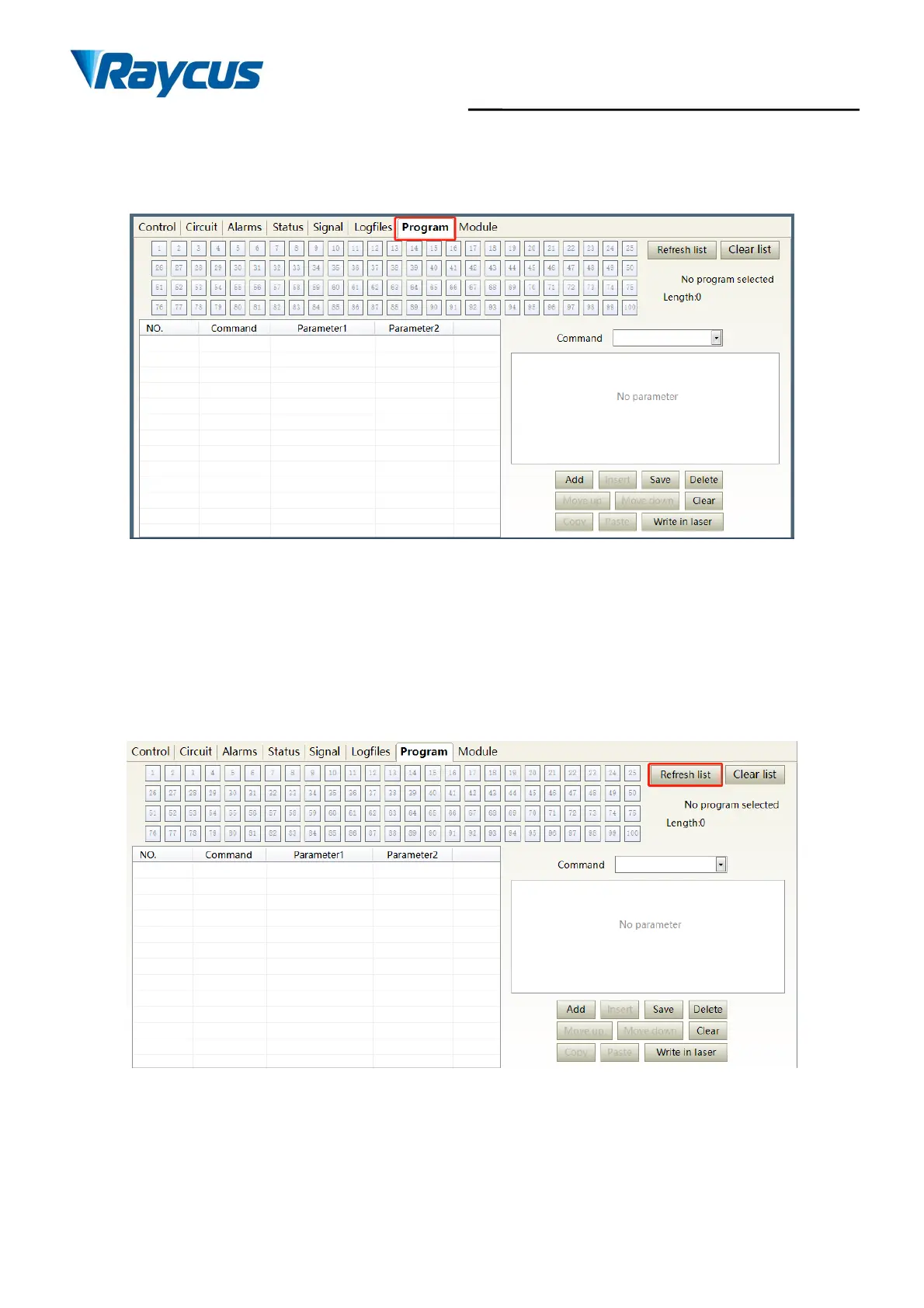

Operating interfaces of view the number of wave bar stored inside the current laser is as Figure 68.
The software automatically lists the number of wavelength bars that have been saved by click on the
“Refresher List” button. Green indicates the bar already has a program and white indicates that the bar is
empty.
Figure 68 Operating interfaces of wavebarstoredinside the currentlaser
8.13.2 Check WaveformContent
To check the waveform contents in the current laser waveform mode is as Figure 69. The program
automatically lists the original waveforms by click the waveform number that needs to be checked.
