Raycus ABP Series User Manual

Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C3000XZ~RFL-C12000XZ
37
Operation method:
a) Turn the knob switch on the rear panel to “ON”;
b) Turn the key switch to “ON”;
c) Open the Raycus Laser Control System;
d) Click the guide laser “ON” button to view the guide laser;
e) Turn off “AD” mode and turn on “External Control” mode; (this mode can be memorized after
power off)
f) Click the main power “ON”;
g) Waiting for “Ready”;
h) Set the percentage of laser emission power;
i) MOD signal output high level to turn on the laser.
6.3 In ON Mode, the LaserEmission Poweris ExternallyControlledby AnalogSignal

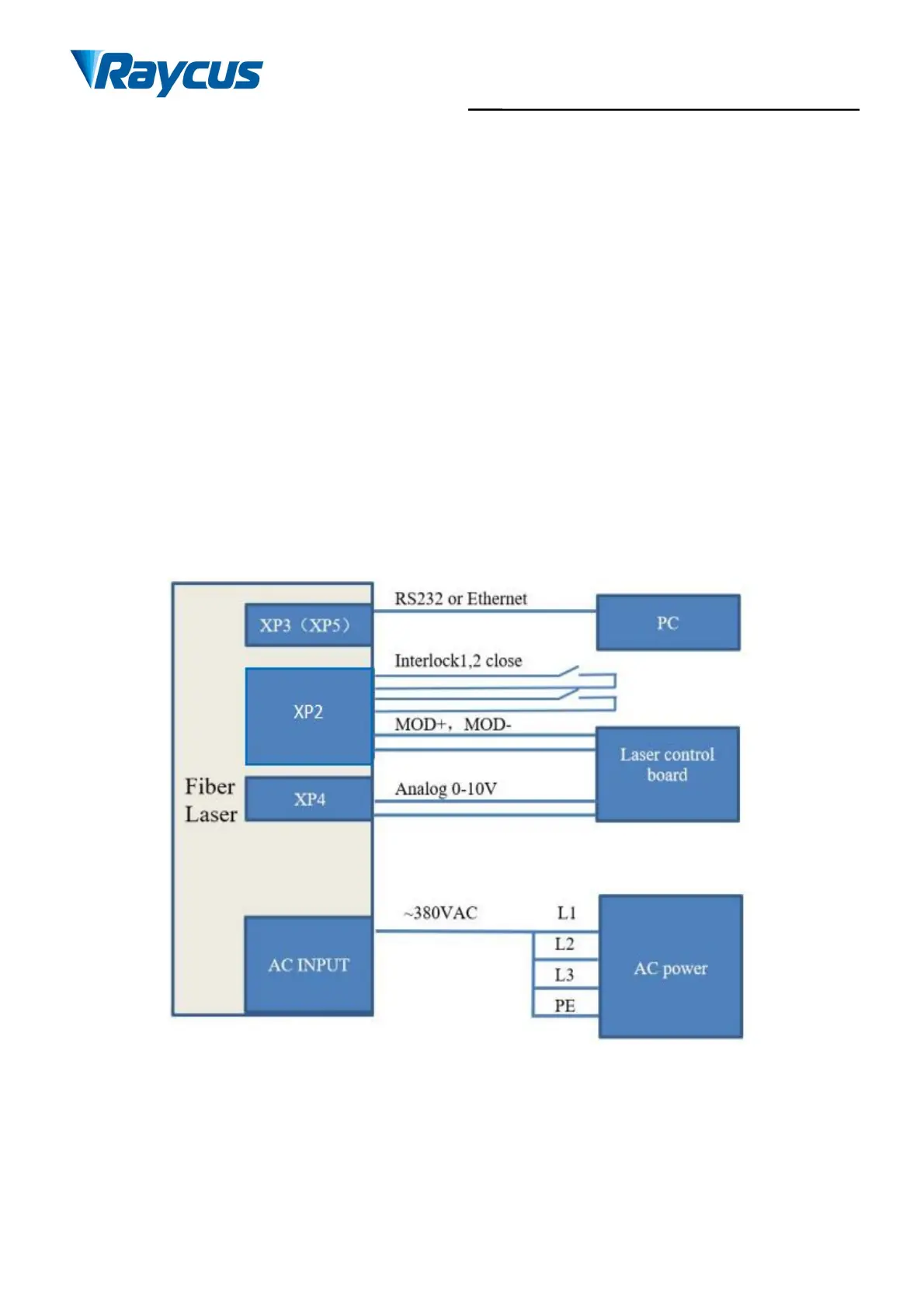

Figure 23 In ON mode, the power and laser emission controlled by analog wiring diagram
Operation method:
a) Turn the knob switch on the rear panel to “ON”;
b) Turn the key switch to “ON”;
c) Open the Raycus Laser Control System;
