User Guide of RFL-C3000XZ~RFL-C12000XZ
65

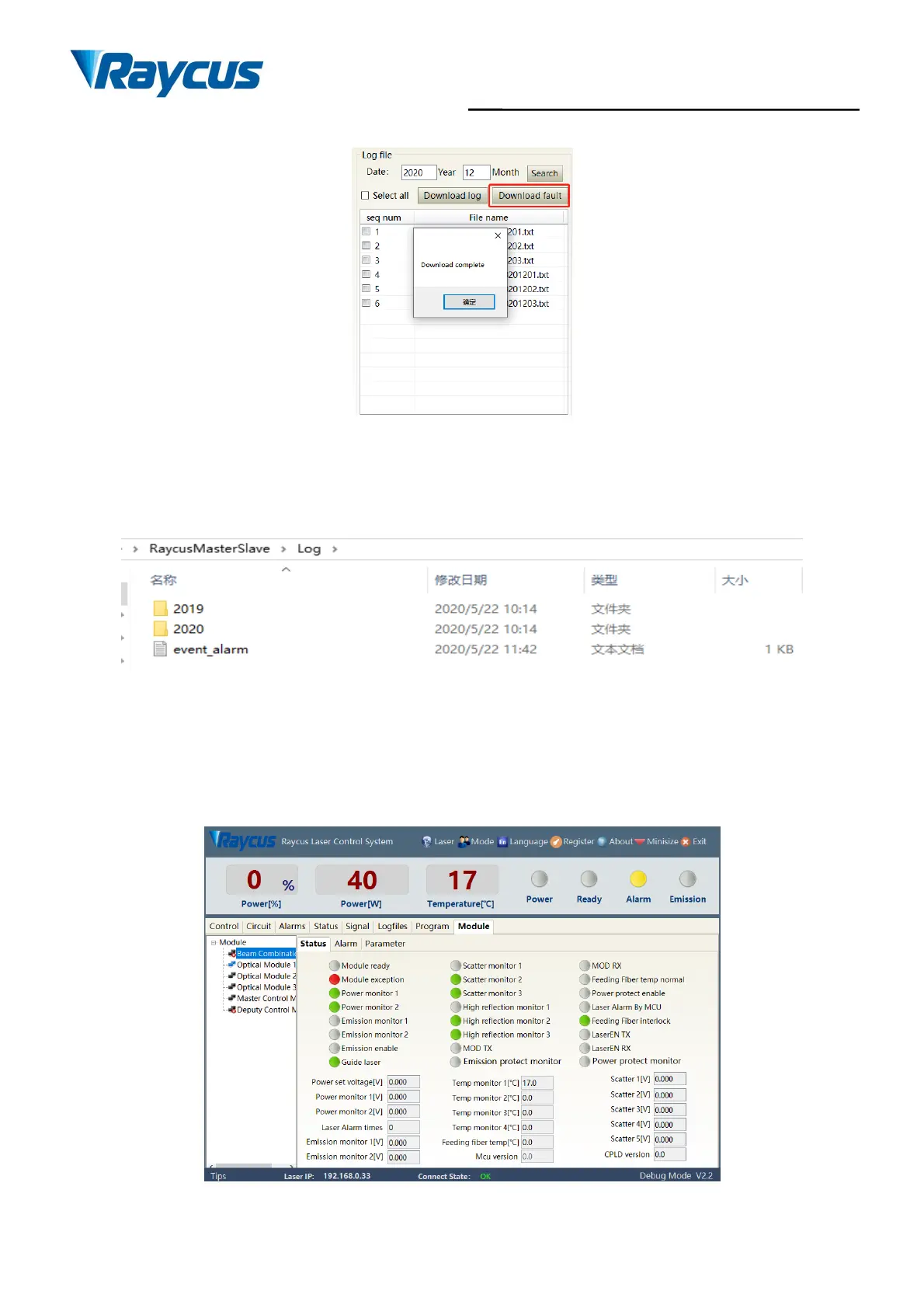

Figure 64 Historical faultrecorddownloadinterface
8.11.3 Downloaded FileAddress
The file address query interface for all download information is as Figure 65.
Figure 65 Thefileaddressqueryinterface for alldownloadedinformation
8.12 Module Parameters (in DiagnosticMode)
Laser module parameter query interface is as Figure 66. The interface is for the parameter query in
diagnostic mode from which Raycus technicians can analyze the cause of laser anomalies.
Figure 66 Module parameters query interface in diagnostic mode
