User Guide of RFL-C3000XZ~RFL-C12000XZ
54

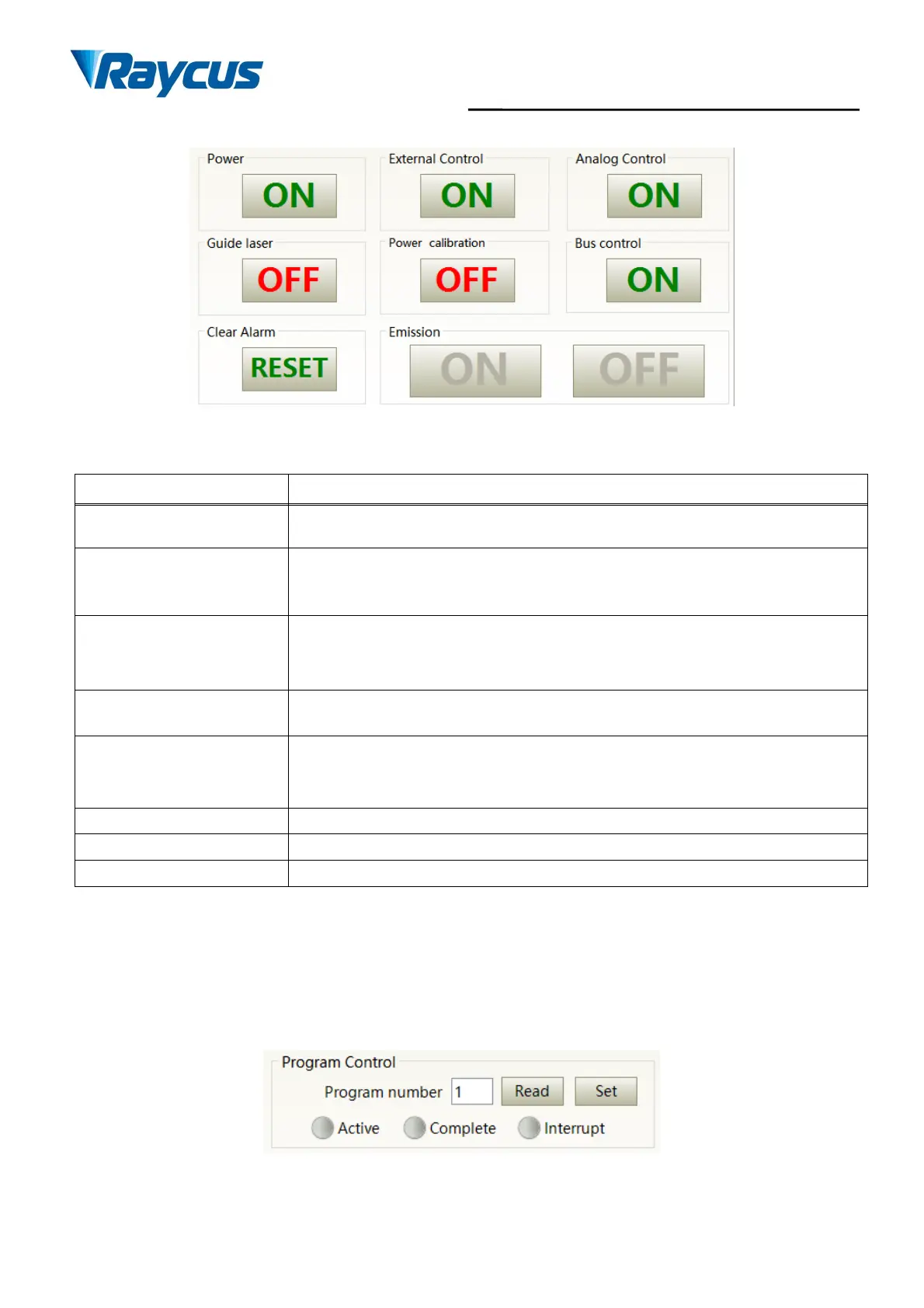

Figure 41 Laserpower-on, mode selection, laseremission controldisplayarea
Table 14 Laserpower-on, mode selection, laseremission controldisplayarea explanation
Display Content
Explanation
Main power button
Click ON, main power on
Click OFF, main power off
External control mode
Click ON, activate laser external control
Click OFF, shut laser external control
Mode power-off memory automatically
AD mode
Click ON, AD analog mode on
Click OFF, AD analog mode off
Mode power-off memory automatically
Red guide beam
Click ON, guide laser on
Click OFF, guide laser off
Power correction
Click ON, activate laser power correction mode
Click OFF, shut laser power correction mode
Mode power-off memory automatically
Eliminate alarm
Eliminate current laser alarm
Laser ON
Laser is in output
Laser OFF
Laser is off
8.3.4 Programming Mode Test Area
The laser programming mode test area interface is as Figure 42, in which the “Set” button is used to
test the waveform of the programming mode. This function can only run internal mode (when external
mode is turned off). Enter the current pre-tested waveform number in the digital text box and click the “Set”
button.
Figure 42 Laser programming mode testarea display interface
