User Guide of RFL-C3000XZ~RFL-C12000XZ
25

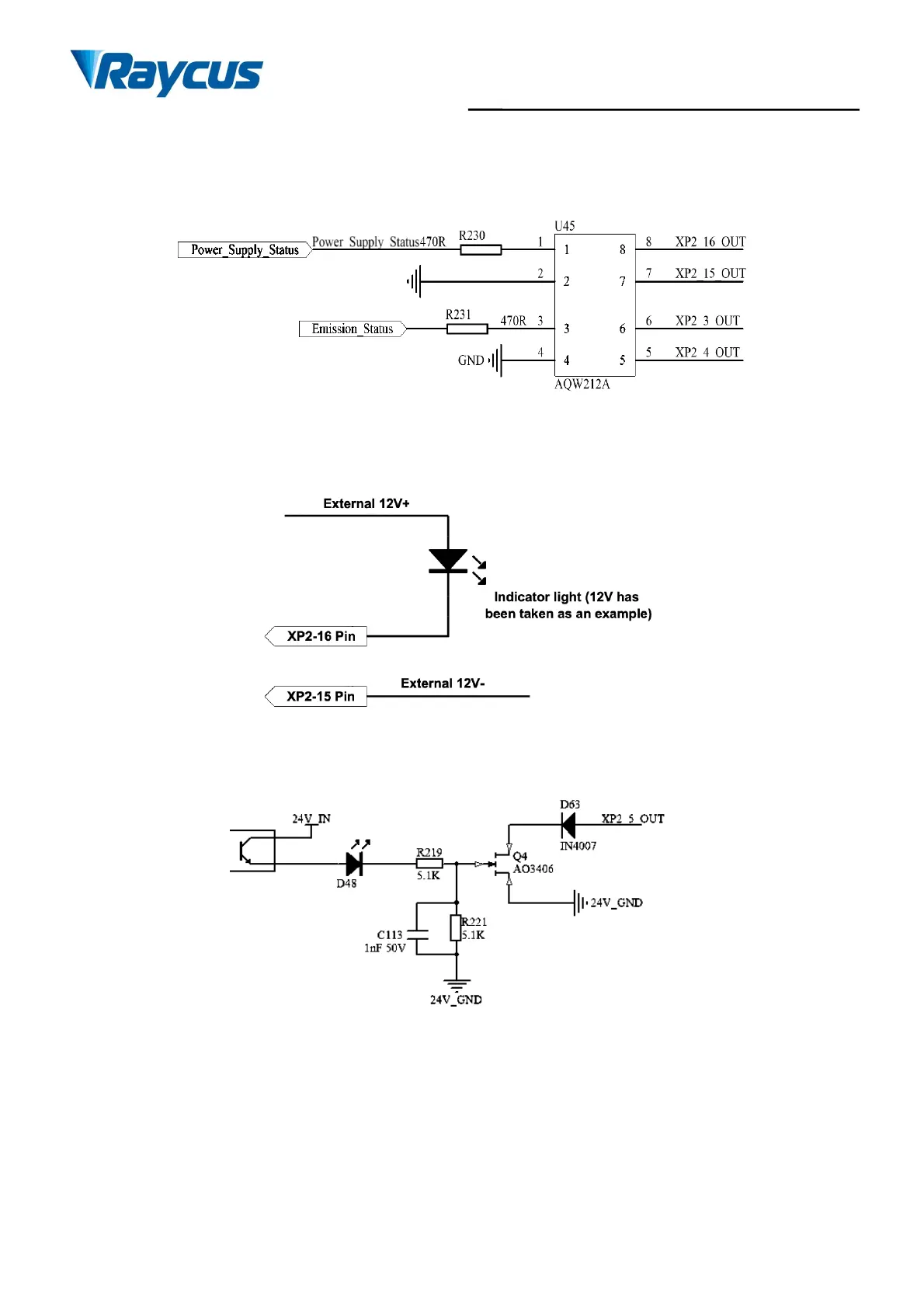

XP2's 3/4 laser emission indication, 15/16 is the main power supply output indication, the internal
circuit diagram is shown in Figure 13.
Figure 14 Internal schematic diagram
Recommended wiring diagram (12V has been taken as an example)
Figure 15 Recommended wiring diagram
c) Active Light Indicator and Main Power on Indicator
Figure 16 Internal circuit diagram
