Raymarine Autohelm ST7000 Installation Instructions

Solenoid Valve Power Supply
Cable Length,
Course
computer to
Power Pack
Cable
Type
Copper
Area
Cable
Gauge
Up to 7m 50/0.25 2.5mm
2
12 AWG
Up to 12m 56/0.3 4.0mm
2
10 AWG
Up to 17m 84/0.3 6.0mm
2
8 AWG
The solenoid valve connectors can only accept
cable up to 2.5mm
2
copper area. If larger cable is
required a 0.5m tail of 2.5mm
2
cable should be
used to wire to the connectors.
Hydraulic Power Pack Motor
The power supply to the motor of the constant
running hydraulic power pack should be
connected to the vessel's central distribution
panel using cable selected from the following
table.
Cable
Length
Cable
Type
Copper
Area
Cable
Gauge
Up to 5m 84/0.3 6mm
2
8 AWG
Up to 8m 84/0.4 10mm
2
7 AWG
An isolator switch and circuit breaker (Fig 40)
should be installed to supply power to the
complete system. The lighter power supply leads
for the electronic power supply and solenoid drive
amplifier should be independently fused (see Fig.
40).

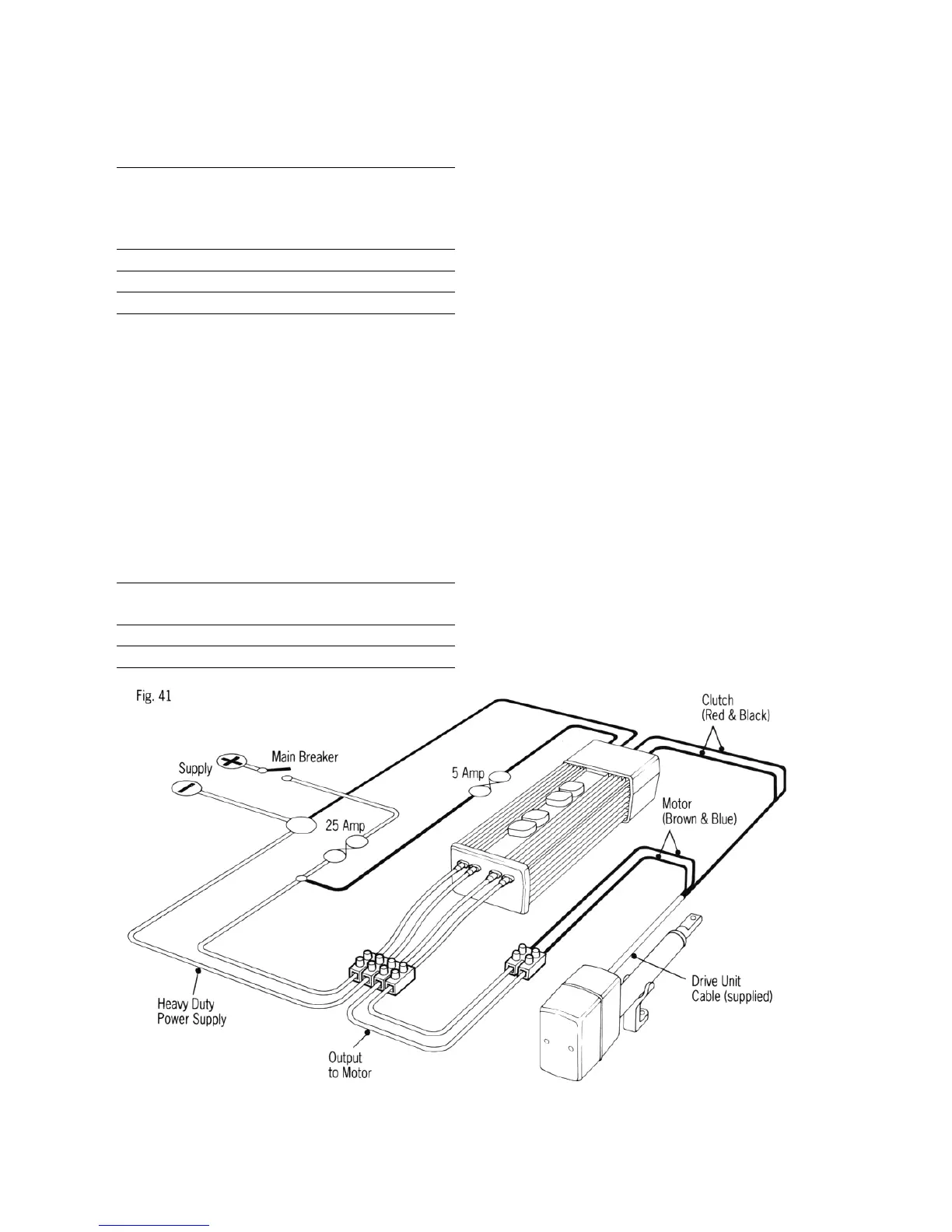

2.3.6 Sterndrive Installations
The stern drive actuator is supplied with 6m (20ft)
of 4 core cable.
The blue and brown cores are fitted with spade
connectors (Fig. 41) and should be connected to
'motor 1' and 'motor 2' course computer spade
connectors. The remaining two cores (red and
black) drive the actuator clutch and should be
connected into the connector box.
31
