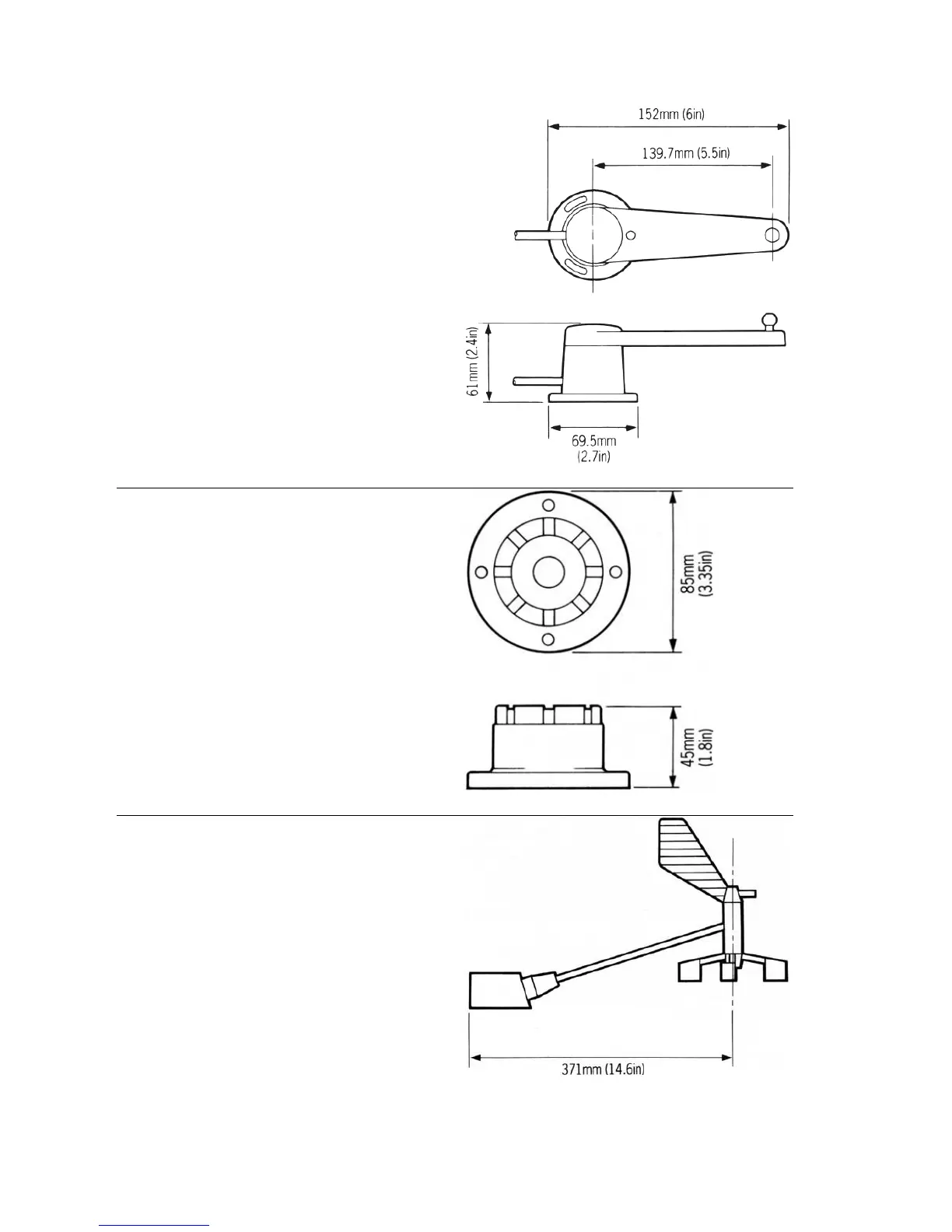

1.1.4 Rudder Reference Transducer
(Cat. No. Z131)
The rudder reference transducer provides the
course computer with a precise rudder position. It
is mounted on a suitable base adjacent to the
rudder stock. The interconnecting cable connects
directly to the course computer connector unit.
1.1.5 Auxiliary Alarm
(Cat. No. Z035)
The autopilot is provided with an automatic off
course alarm system which sounds from all
control units and provides sufficient audible
warning under most conditions. In cases where a
high power alarm is necessary, an auxiliary alarm
can be fitted. The auxiliary alarm is connected to
the main connector unit via a two core cable.
1.1.6 Masthead Transducer (Sail Only)
(Cat. No. Z080)
If the installation does not include an Autohelm
ST50 Wind Instrument the masthead transducer
can be connected directly to the course computer
to supply wind angle information.
