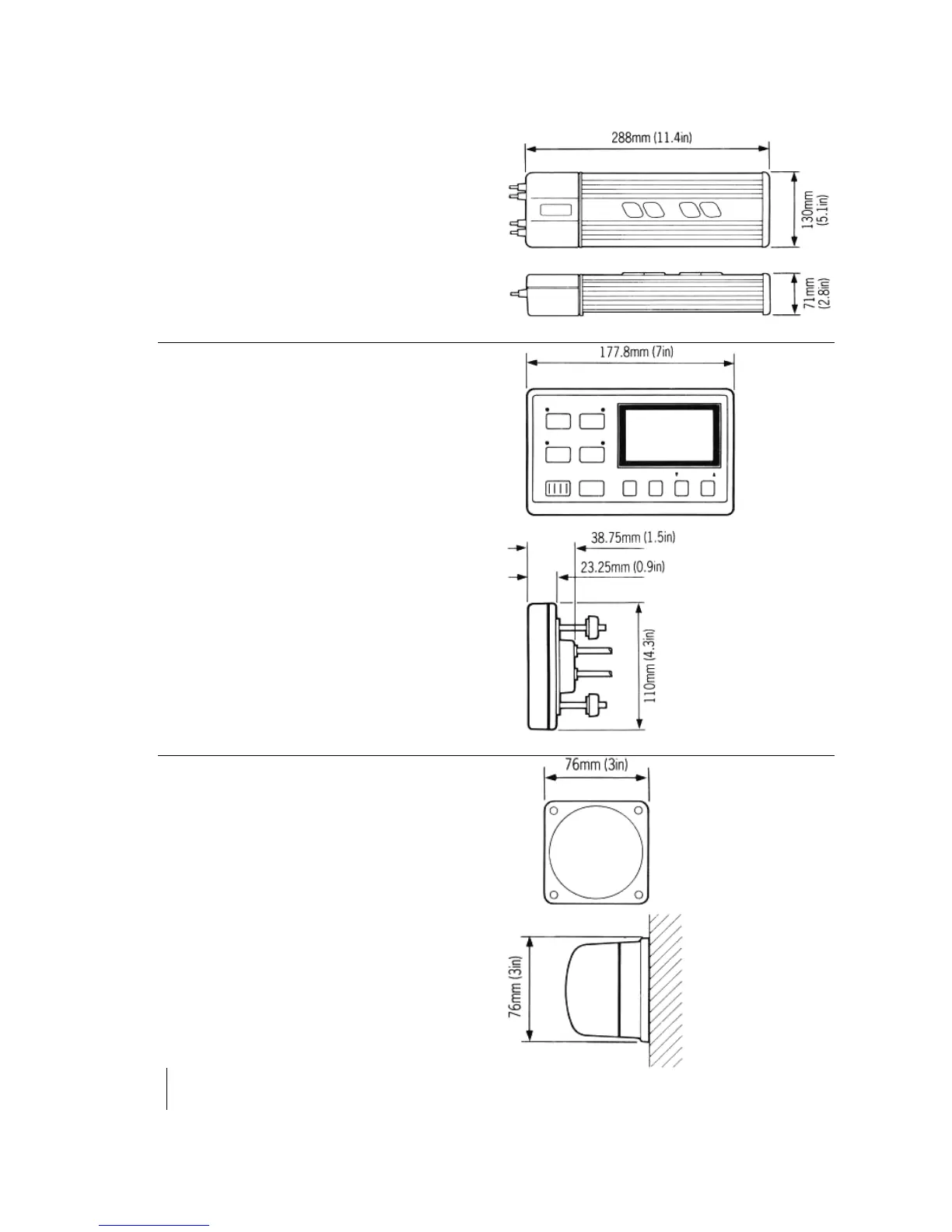

1.1.1 Course Computer
(Cat. No. Z083-12V Cat. No. Z084-24V)
The course computer houses the microprocessor,
electronic control circuitry and power amplifier for
the drive unit. The course computer is splash
proof only and must be mounted in a dry and
protected position. The course computer is
available for operation with 12V and 24V power
supply.
1.1.2 Control Unit (Cat. No. Z082)
The control unit is designed for above or below
deck mounting. The control unit accepts NMEA
0183 navigation and wind angle data input.
1.1.3 Fluxgate Compass (Cat. No. Z130)
The fluxgate compass has been especially
developed for marine application. The compass
contains a gimbal mechanism to permit accurate
readings with pitch and roll movements up to +35
deg. The compass is bulkhead mounted below
decks and connects directly to the course
computer.
The fluxgate compass may be mounted above
deck on steel vessels however autopilot
performance may be degraded due to the
increased motion.
3
