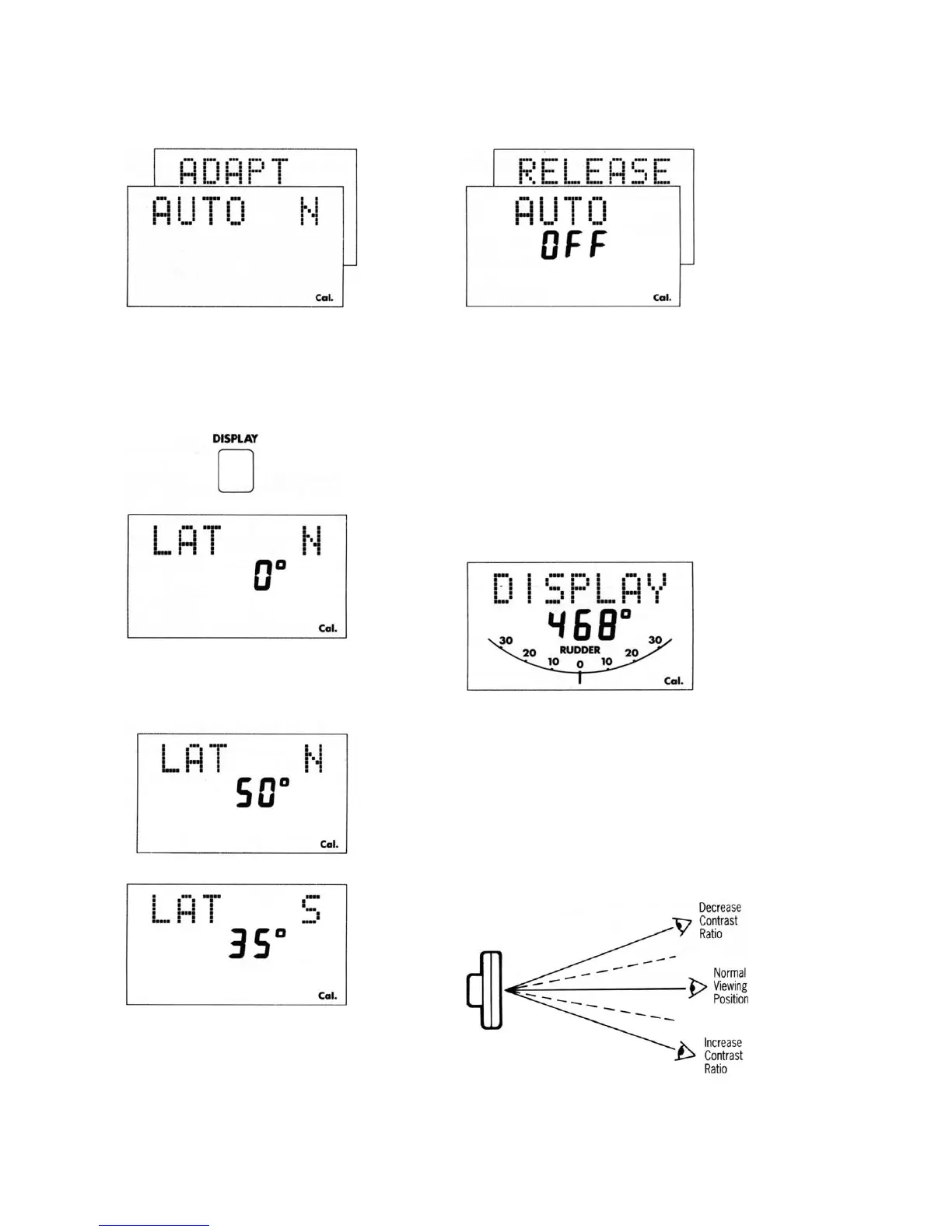

• Northerly/Southerly Heading Instability
Select Hemisphere
0 (OFF)
N (North)
S (South)
Enter Local Latitude using Response Keys.
A typical display in the Northern Hemisphere
would be:
and in the Southern Hemisphere
• Auto Release (see 3.8 & 5.7)
OFF
1 = ON
The Auto Release facility is designed to provide
Emergency Manual Override when used with the
Autohelm Stern Drive Actuator.
For all other Drive Systems Auto Release must be
selected "OFF".
4.4 Display Contrast Adjustment
The LCD Contrast can be adjusted to suit a wide
range of control unit viewing angles.
• Push display and track together momentarily.
• Push response ▲ to increase contrast (suits
viewing from below).
• Push response ▼ to decrease contrast (suits
viewing from above).
Adjust the display for optimum viewing.
• Push display and track together momentarily
to store selection and return to previous
operating mode.
37
