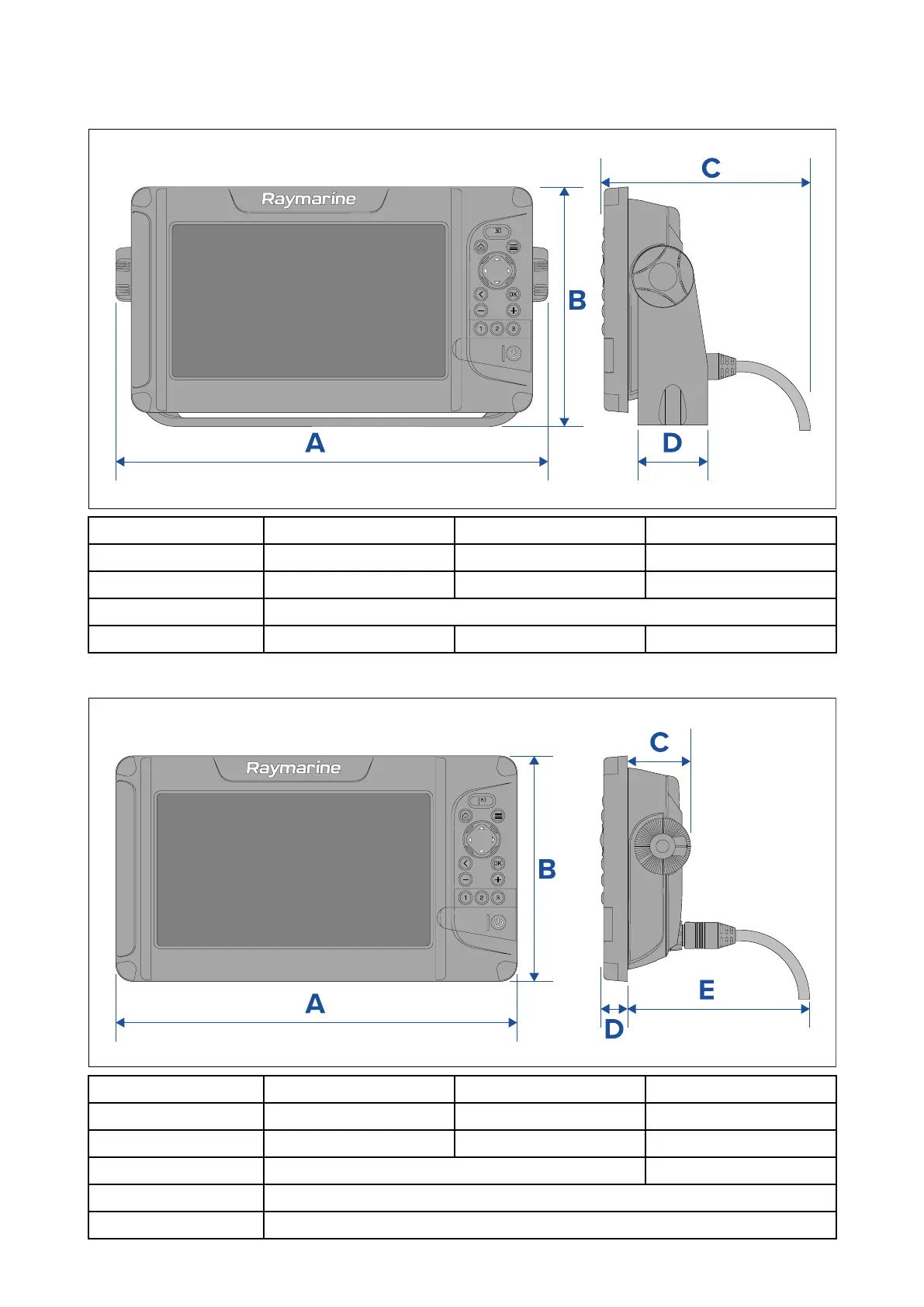

3.2Productdimensions
Trunnion
mountdimensions
Element7Element9Element12
A
263.85mm(10.39 in)308.40mm(12.14in)373.40mm(14.70in)
B
162.59mm(6.40in)171.00mm(6.73 in)225.19mm(8.87in)
C
149.40 mm(5.88in)
D
60.84 mm(2.40in)50.11mm(1.97in)55.00mm(2.17in)
Surfacemountdimensions
Element7Element9Element12
A
239.60 mm(9.43in)286.50mm(11.28in)357.20mm(14.06in)
B
135.10 mm(5.32in)161.00mm(6.34in)215.20mm(8.47in)
C
45.00mm(1.77 in)46.00mm(1.81in)
D
19.40 mm(0.76in)
E
130.00 mm(5.12in)
Installation29
