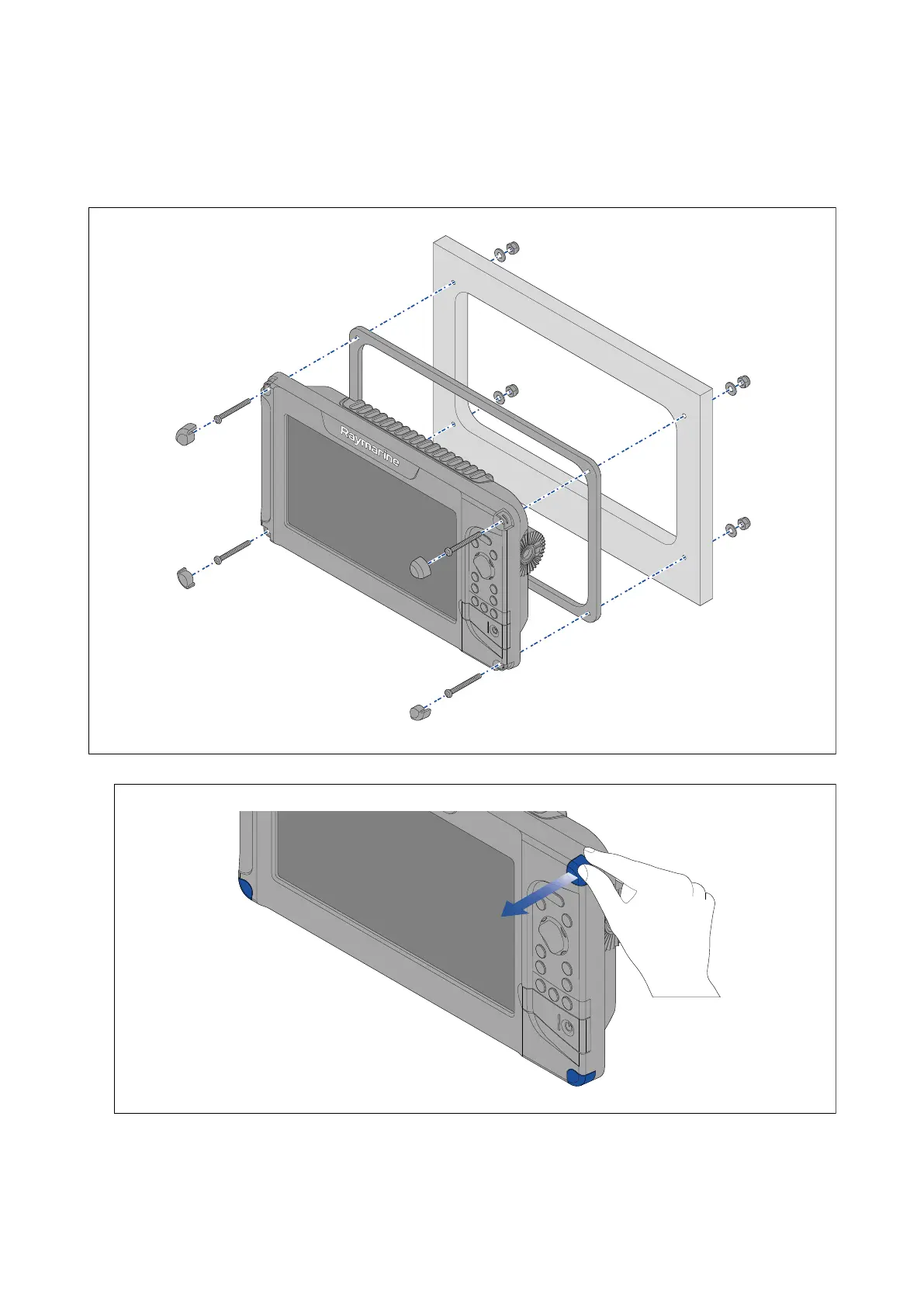

3.5Surfacemounting
Thesuppliedmountinggasket
andfixingscanbeusedtosurfacemountthedisplay.
Beforemountingthedisplay,ensurethatyouhave:
•chosenasuitablelocation,usingtheguidanceprovided;
•identifiedtherequiredcableconnectionsandroutedthecablestothemountinglocation.
1.Remove the4screwcoversfromthecornersofthedisplay.
2.Checkthechosenmountinglocation.Aclear, flatareawithsuitableclearancebehindthepanelis
required.
3.Fixthesuppliedmountingtemplatetothechosenlocationusingmaskingorself-adhesivetape.
4.Usingasuitableholesaw(thesizeisindicatedonthetemplate),makeaholeineachcorner
ofthecut-outarea.
5.Usingasuitablesaw,cutalongtheinsideedgeofthecut-outline.
