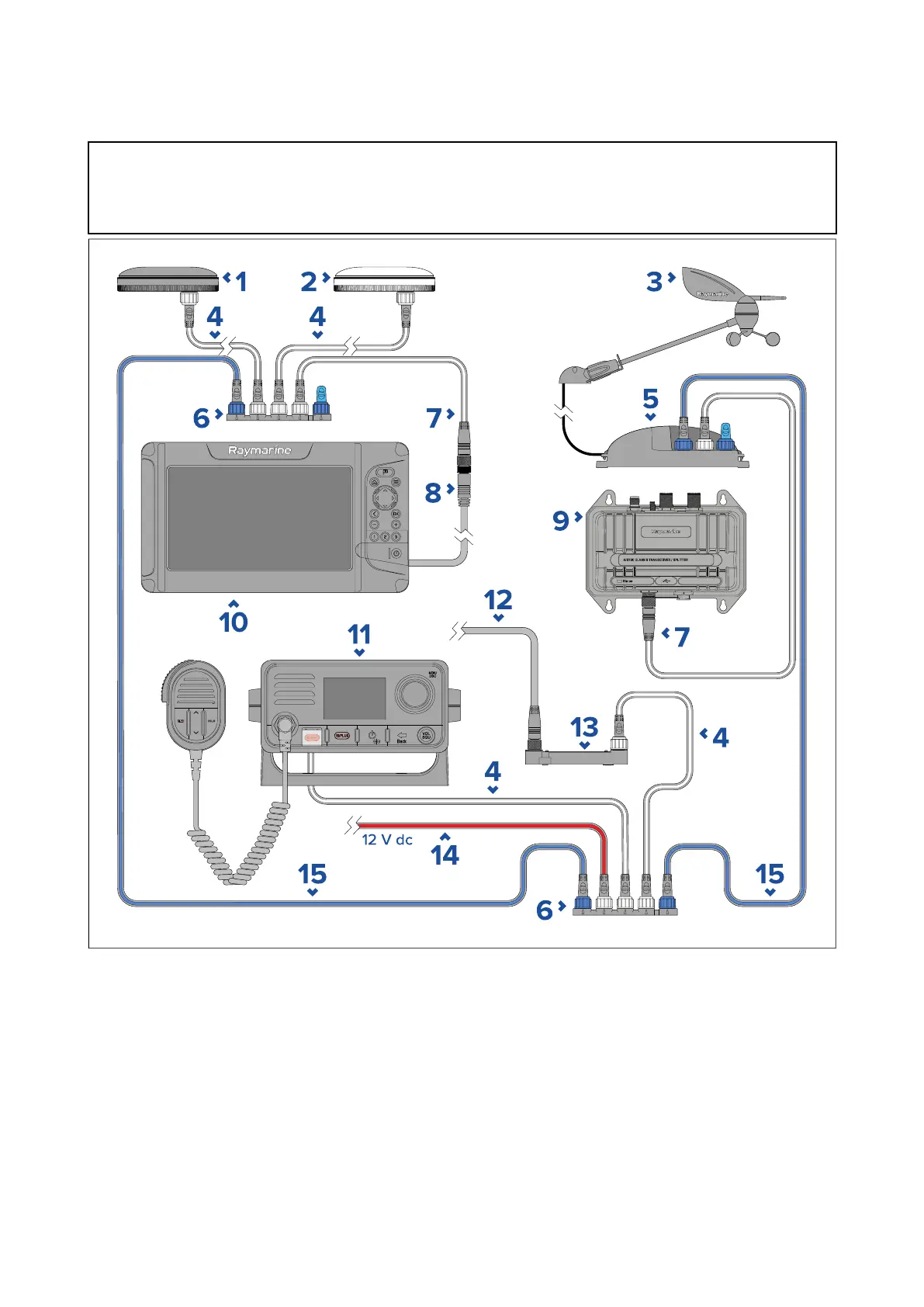

AnexampleSea Talkng®systemisprovidedbelow.Connectiontoanetworkprovidesthedisplay
withdatafromotherconnecteddevices.
Note:
Thedetailsbelowareprovidedasanexample
onlyanddoesnotreflectallproductsthatmaybe
presentontheSea Talkng®network;e.g.:inordertocalibratewinddataaninstrumentdisplay
wouldberequired.
1.EV-1headingsensor.
2. RS150GNSSreceiver.
3.Windvanetransducer.
4.SeaTalkng®spurcables.
5.iTC-5convertor.
6.SeaTalkng®5-wayconnectorblock.
7.DeviceNettoSea Talkng®adaptorcable.
8.DeviceNetconnectionondisplay’spower/NMEA2000cable.
9.AIS700.
10.Element™display.
11.SeaTalkng®/NMEA2000VHFDSCRadio(GPS/GNSSpositiondatacanbetransmittedfrom
thedisplayandusedbyacompatibleVHFDSCradio).
