Raymarine SmartPilot X5 Installation & Setup Guide

4 SmartPilot X-5 Tiller & GP Tiller Installation & Setup Guide
1.4 Equipment & Tools
Before you begin ensure you have all the necessary components and tools to install
your system.

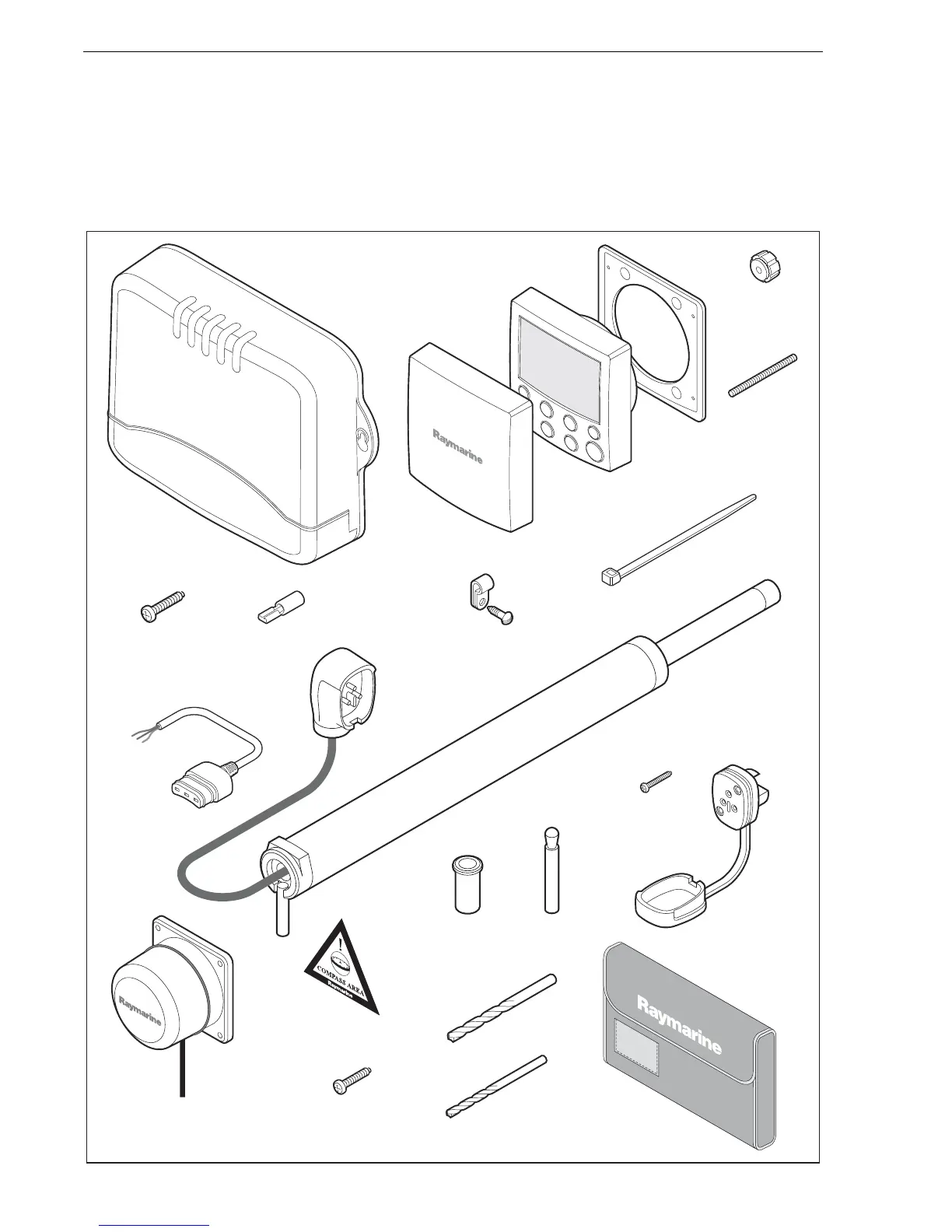

Parts supplied
D10615-1
Mounting
socket
Tiller
pin
Plug
Socket screw
No 4 x 3/4 in (x2)
Tiller drive
Socket
6 mm drill bit
4 mm drill bit
Cable clip
and screw,
No 6 x 1/2 in
No 8 x 3/4 inch
Pan head screw (x3)
Connectors
SeaTalk Cable
Sun Cover
SmartPilot
ST6002
Controller
Panel Seal
Cable tie
Stud (x2)
Finger
Nut (x2)
Course
Computer
Bracket screw,
No 10 x 3/4 in (x4)
Compass
warning label
Fluxgate compass
with 8 m (26 ft) cable
User documents
in wallet
