Chapter 2: Installing the system 9
CAUTION: Power cable
Using an incorrect size of power cable could reduce the power
supplied to the drive unit and therefore cause your SPX-5 Tiller
system to malfunction. Ensure the correct cable size is used. If in
doubt, use a heavier gauge cable.
The requirement for power cables depends on the total length of the power circuit.
That is the total length of Cable A + Cable B + Cable C.
The correct cable dimensions for various cable lengths are given in the following
table.

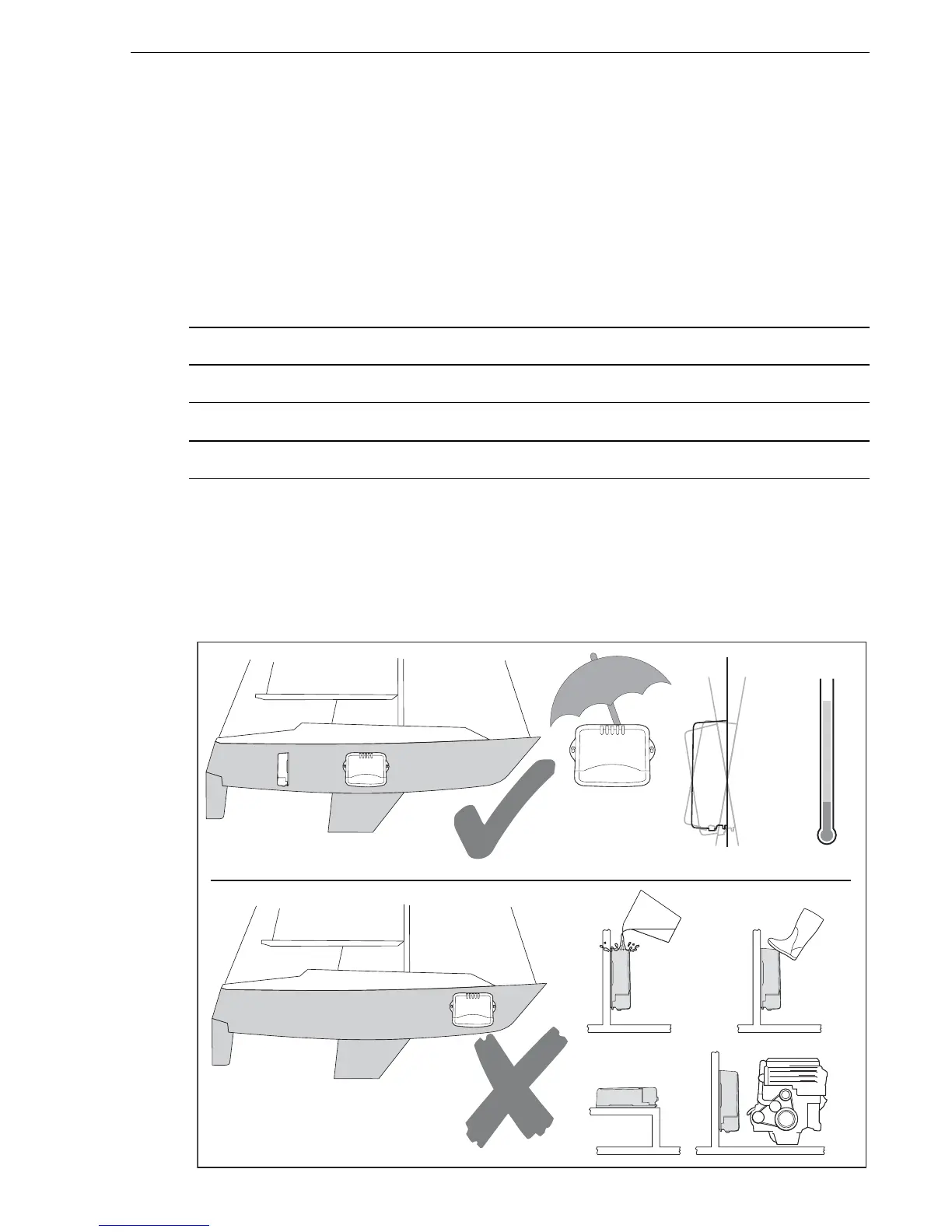

2.3 SPX-5 Tiller system Course Computer
Mounting
The Course Computer must be mounted on a secure vertical surface, free from
vibration.
Total cable length (A + B + C) Copper area AWG
Up to 2.5 m (8 ft)
1.0 mm
2
18
Up to 4.0 m (13 ft)
1.5 mm
2
16
Up to 6.0 m (22 ft)
2.5 mm
2
14
or
Min
Max
-10
55
14
130
°F°C
10°
10°
D10629-1
