Raymarine SmartPilot X5 Installation & Setup Guide

Chapter 2: Installing the system 29
2.11Final checks
When you have completed all necessary installation procedures, but before you
apply power to the system, ensure all equipment and connections are properly
secured.

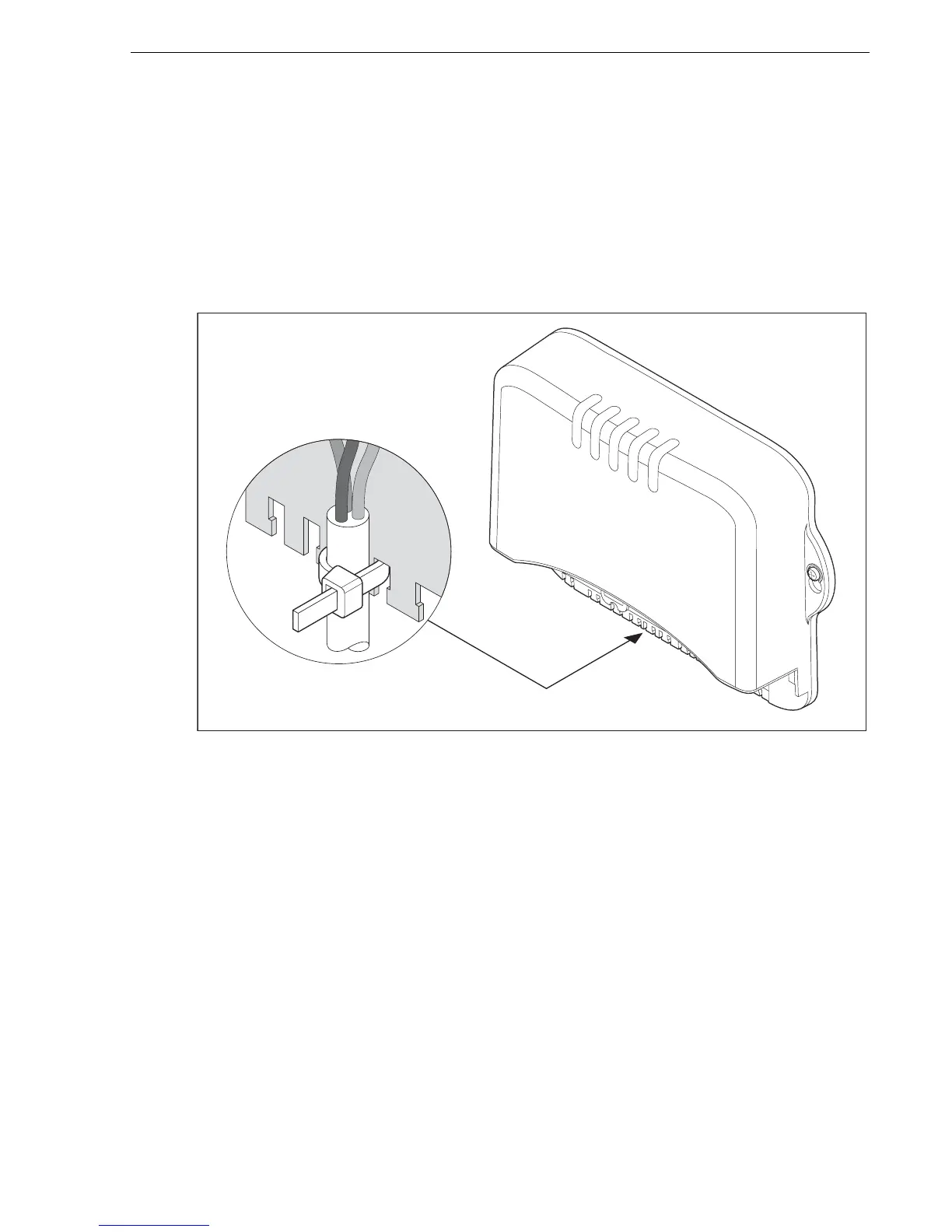

Secure all cables
To prevent strain on the connector blocks, secure the cables to the Course Computer
with cable ties as shown below.
2.12Commission the system before use
The SPX-5 Tiller system must be commissioned prior to use, in accordance with the
instructions in
Chapter 3: Commissioning & setup . For new systems this involves
calibrating the system, which is a safety-critical action.
D10396-1

Raymarine SmartPilot X5 Specifications

General

Type	Autopilot
Control Type	Tiller
Power Supply	12V
Waterproof Rating	IPX6
Heading Sensor	Internal
Power Consumption	1.5 A
Current Draw	1.5A (standby), 5A (max)
