22 SmartPilot X-5 Tiller & GP Tiller Installation & Setup Guide

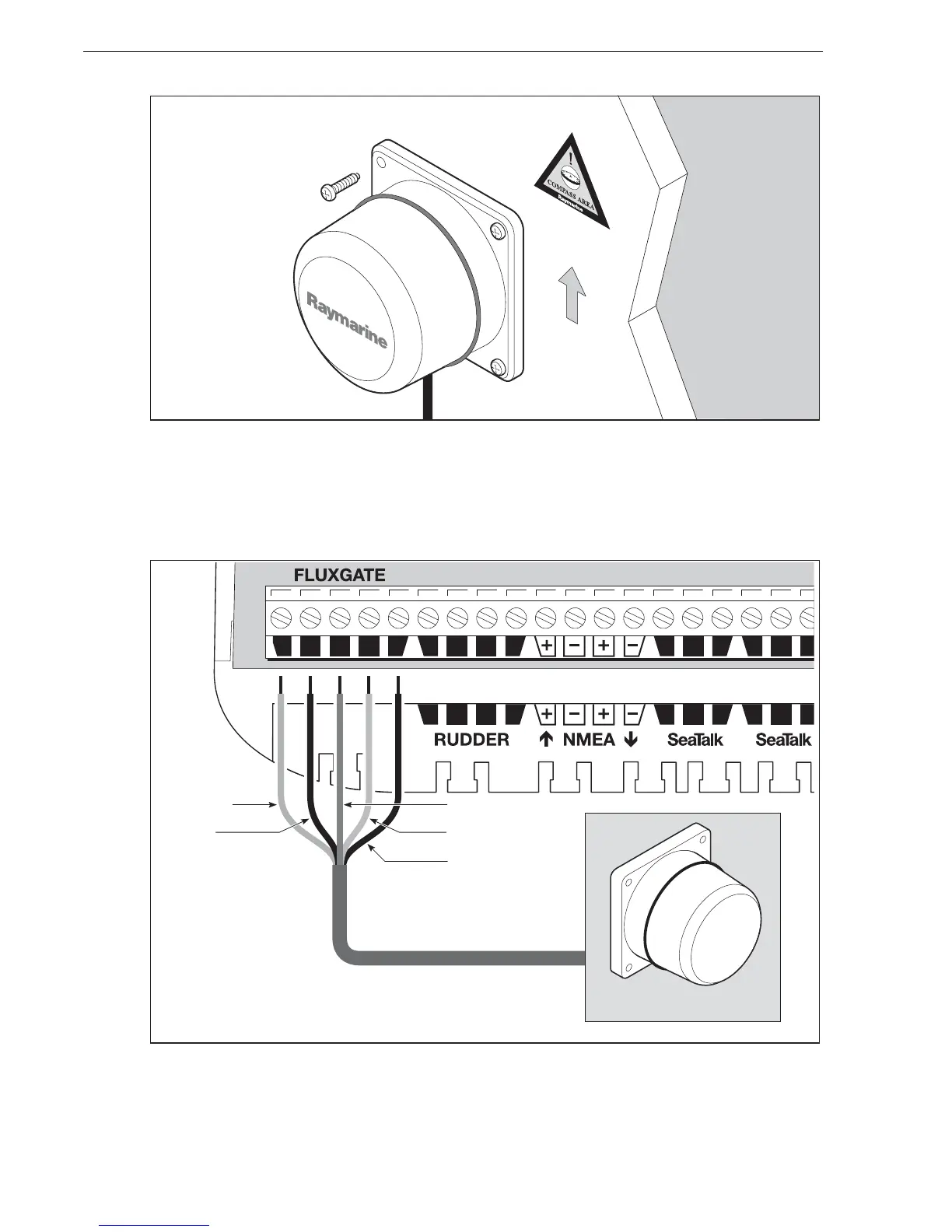

Compass connection

Route the compass cable to the Course Computer, securing it at regular intervals with

suitable cable clips/ties.

Connect to the Course Computer as in the following illustration.

D10618-1

Vertical

D10388-1

Cable, 8 metres (26 ft)

Screen

Red

Green

Yellow

Blue

Fluxgate compass
