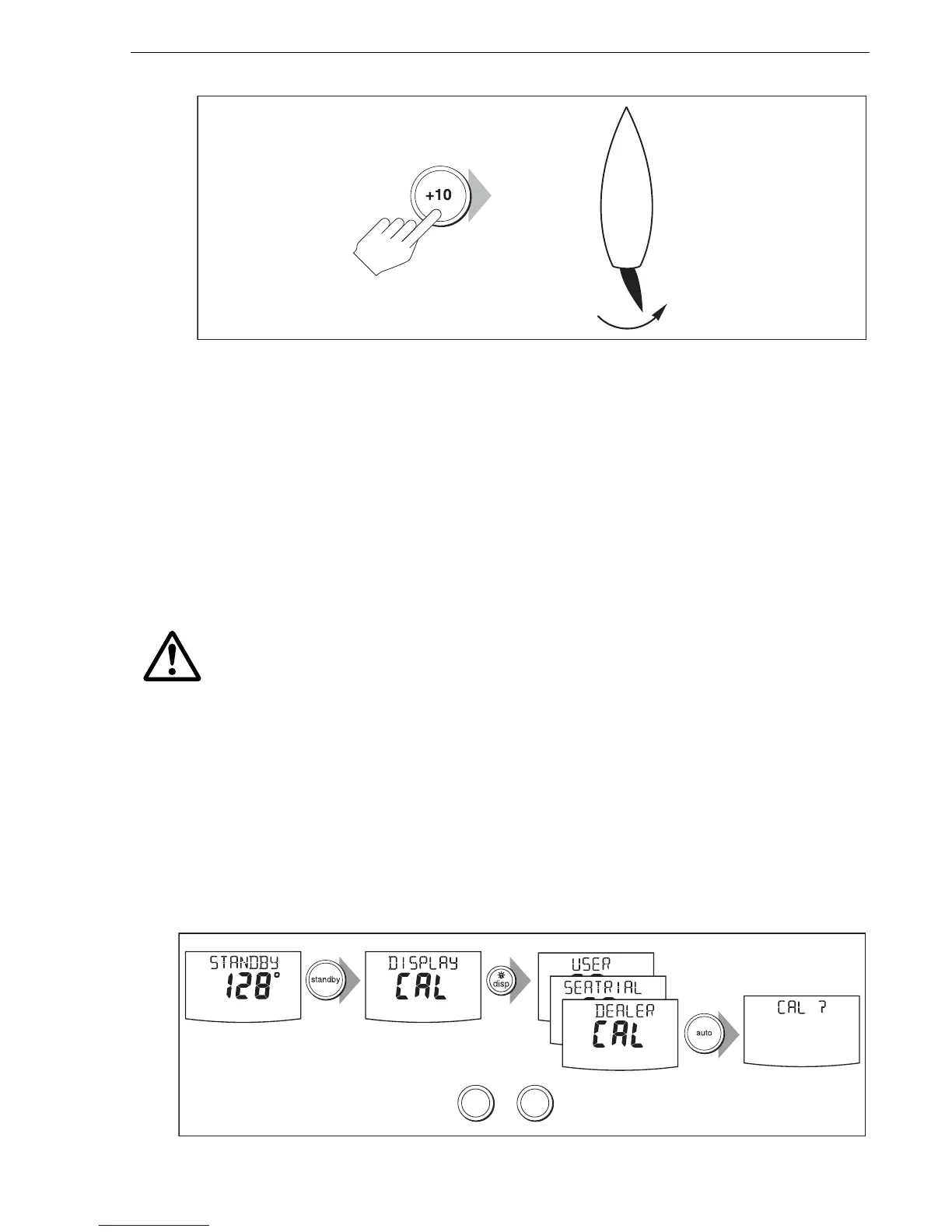

Chapter 3: Commissioning & setup 33
4. If the rudder moves to port or the rudder drives hard over:
i. Press standby.
ii. Turn off the power.
iii. Reverse the motor wires connected to the SPX-5 Tiller system computer.
iv. Switch on the power and re-check.
Note:
If the rudder overshoots and has to drive back or starts to hunt back and forth, increase
the rudder damping level manually (See
page 54
).
Setting the vessel and drive type
in order to set up the vessel type and drive type, you need to enter the Dealer
calibration mode.
To enter the Dealer calibration mode:
1. Ensure the autopilot is in Standby mode.
2. Hold down
standby
for two seconds to enter the Calibration mode.
3. When the screen shows
DISPLAY CAL
, press
disp
until the
DEALER CAL
screen
is displayed.
4. Press
auto
. The display will change to
CAL?
.
5. Press -1 and +1 together to enter Dealer calibration.
WARNING: Use Dealer calibration correctly
Improper use of Dealer calibration can seriously impair SPX-5
Tiller system performance and therefore adversely affect the
steering capability. Do not change Dealer calibration settings
other than as described in the product documentation.
D10646-1
At the CAL ? screen, press + together to enter DEALER CAL
2 sec
x3
-1 +1
D10540-1
