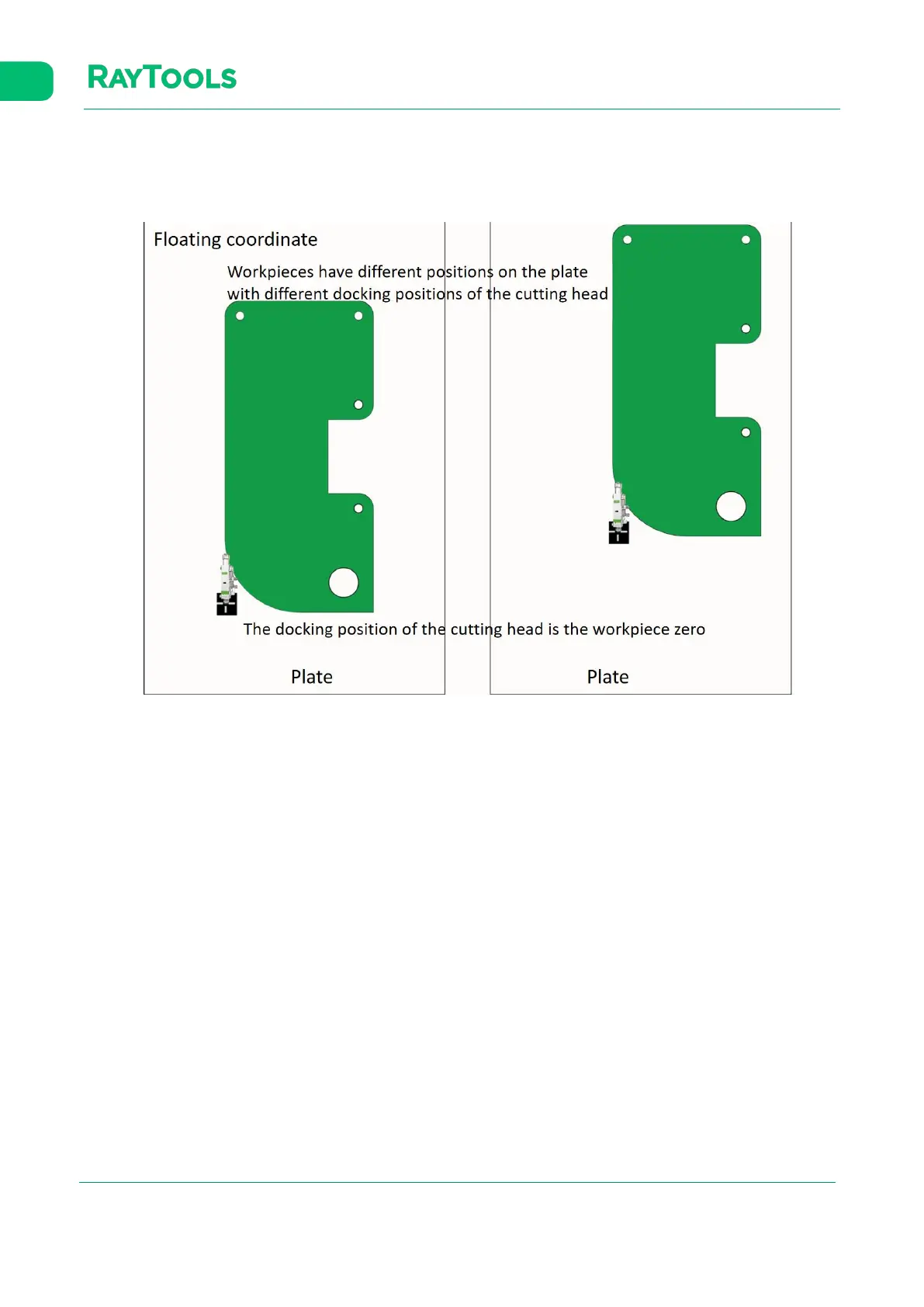

The floating coordinate system is generally used for informal processing and can be regarded as starting processing from
wherever the laser head moves. The zero point of the floating system is automatically set to the current position of the
laser head when the user clicks on Frame, Dry run, or Start button in the control panel, as shown below:
