Record 6100 Series User Manual

SERVICE STG
Configure System >
Learning System >
Parameter >
Maintenance >
Functions >
Operation Mode >
PARAMETER
Driving cycle >
Time delay open >
Drive >
Entrance system >
Manual control >
Control panel >
3
Increasing the Opening Speed value
will increase the door open speed.
Increasing the setting
increases the rate of acceleration.
Increasing the setting
increases the latch position
NOTE: If any of the Driving Cycle
parameters are changed, a calibration
cycle should be initiated.

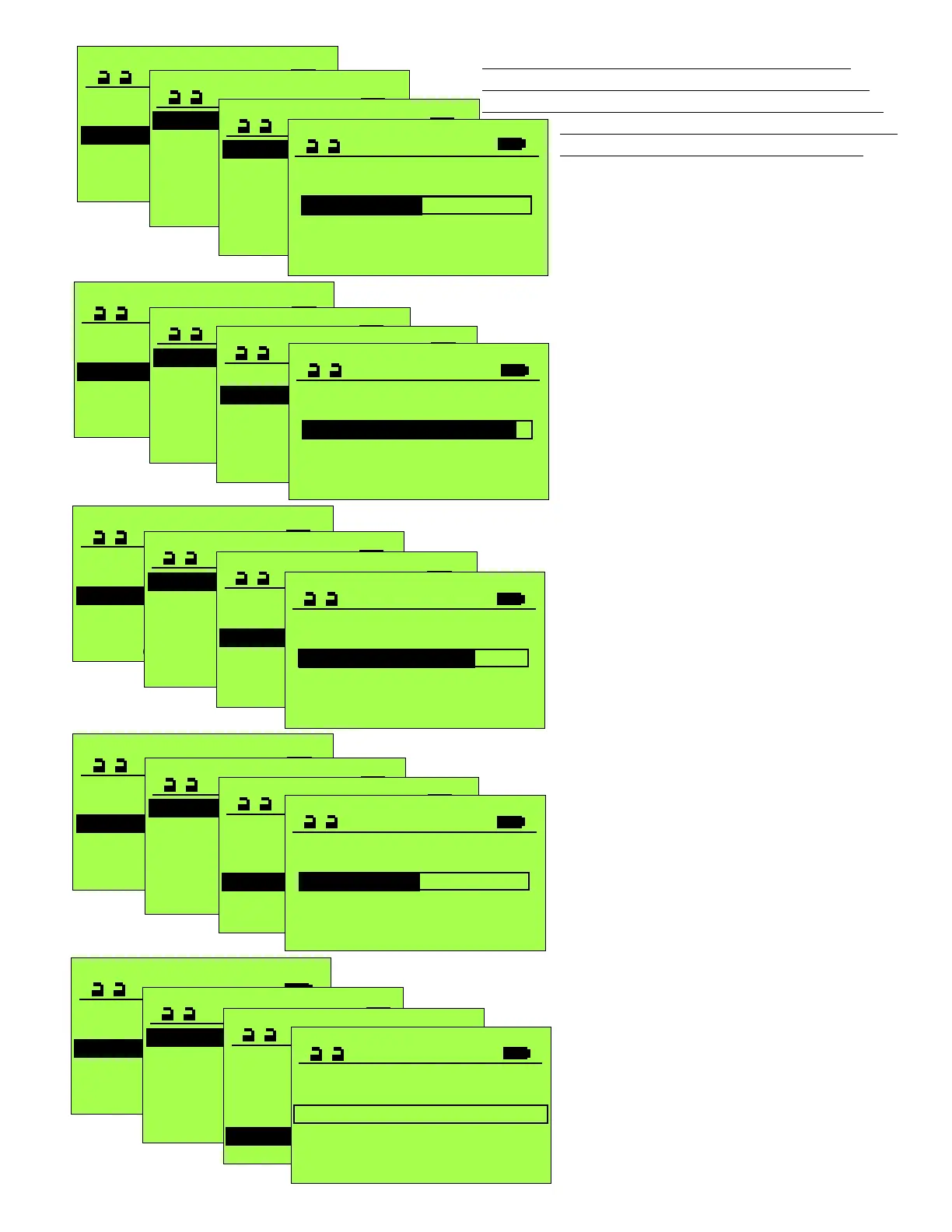

DRIVING CYCLE
Closing speed 20
Opening speed 36
Acceleration 30
Latch Check 20
Force when closing 0
CLOSING SPEED
20
NOTE: If this operator is to be set up for low
energy operation, opening and closing speeds
must be adjusted to conform to the requirements
of ANSI A156.19; full power installations
must be adjusted per ANSI A156.10.
Increasing the value will increase the
closing speed. If “Manual Control”
has been enabled (see page 8), this
adjustment will be superceded by the
Closing Speed adjustment in Manual
Control (see page 9).
SERVICE STG
Configure System >
Learning System >
Parameter >
Maintenance >
Functions >
Operation Mode >
PARAMETER
Driving cycle >
Time delay open >
Drive >
Entrance system >
Manual control >
Control panel >
DRIVING CYCLE
Closing speed 20
Opening speed 36
Acceleration 30
Latch Check 20
Force when closing 0
OPENING SPEED
36
SERVICE STG
Configure System >
Learning System >
Parameter >
Maintenance >
Functions >
Operation Mode >
PARAMETER
Driving cycle >
Time delay open >
Drive >
Entrance system >
Manual control >
Control panel >
DRIVING CYCLE
Closing speed 20
Opening speed 36
Acceleration 30
Latch Check 20
Force when closing 0
ACCELERATION
30
SERVICE STG
Configure System >
Learning System >
Parameter >
Maintenance >
Functions >
Operation Mode >
PARAMETER
Driving cycle >
Time delay open >
Drive >
Entrance system >
Manual control >
Control panel >
DRIVING CYCLE
Closing speed 20
Opening speed 36
Acceleration 30
Latch Check 20
Force when closing 0
LATCH CHECK
20
SERVICE STG
Configure System >
Learning System >
Parameter >
Maintenance >
Functions >
Operation Mode >
PARAMETER
Driving cycle >
Time delay open >
Drive >
Entrance system >
Manual control >
Control panel >
DRIVING CYCLE
Closing speed 20
Opening speed 36
Acceleration 30
Latch Check 20
Force when closing 0
Force when closing
0
Default = 0
Increases the motorized force
during closing.
Recommended setting: 0
If the value is increased from 0, a
fixed safety sensor must be
installed in the closing direction.
