Record 6100 Series User Manual

0 thru 20 are in 1 sec. intervals;
21 thru 40 are in 2 sec. intervals
providing 60 sec. maximum delay.
4
This sets the sensitivity of the unit
to obstructions during the closing
cycle. It is normally set automatic-
ally during the learn cycle, but can
be modified as desired. (20)
Decreasing the setting increases
the sensitivity during closing.
In abusive environments, it is
suggested the mechanical open stop
be adjusted to greater than 90° and
the Open Angle adjusted to less than
40, setting a soft stop at 90°.
This sets the sensitivity of the unit
to obstructions during the opening
cycle. It is normally set automatic-
ally during the calibration cycle with
a nominal value of (20), but can be
modified as desired.
Increasing the setting increases the
force required to stop the door.
SERVICE STG
Parameter >
Maintenance >
Functions >
Operation mode >
Diagnostics >
0 thru 20 are in 1 sec. intervals; 21 thru
40 are in 2 sec. intervals providing 60
sec. maximum delay.
If this operator is to be set up for low
energy operation, the time delay must
be set to 5 seconds, minimum, to con-
Operation Mode >
form to ANSi A156.19.
PARAMETER
Driving cycle >
Time delay open >
Drive >
Entrance system >
Manual control >
Control panel >

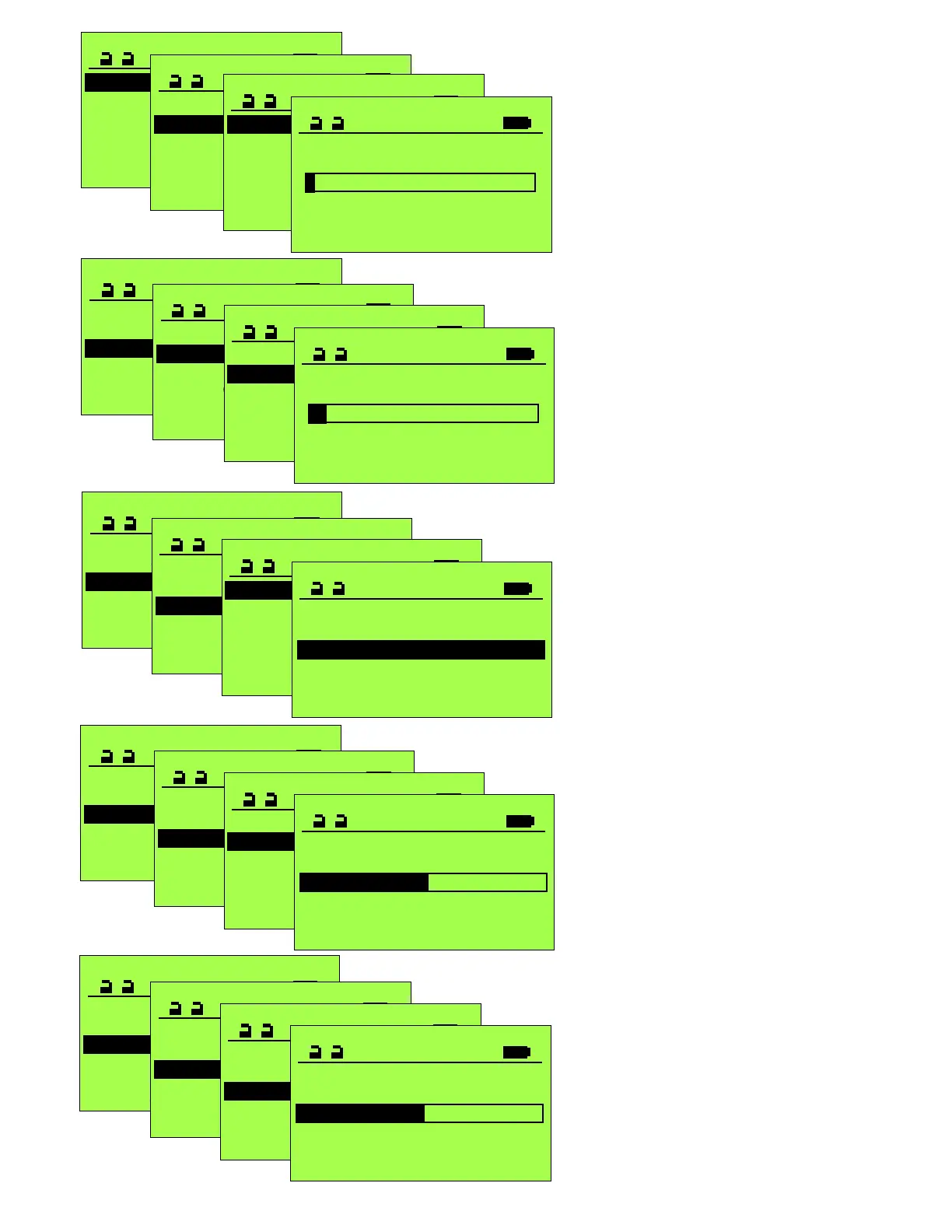

TIME DELAY OPEN
Time delay open 2
Time delay Rem. Sw 4
TIME DELAY OPEN
2
SERVICE STG
Configure System >
Learning System >
Parameter >
Maintenance >
Functions >
Operation Mode >
PARAMETER
Driving cycle >
Time delay open >
Drive >
Entrance system >
Manual control >
Control panel >
TIME DELAY OPEN
Time delay open 2
Time delay Rem. Sw 4
TIME DELAY REM. SW
4
SERVICE STG
Configure System >
Learning System >
Parameter >
Maintenance >
Functions >
Operation Mode >
PARAMETER
Driving cycle >
Time delay open >
Drive >
Entrance system >
Manual control >
Control panel >
DRIVE
Opening angle 40
Obstruction 20
Obstruction 20
Brake 0
Types of arms 0
Invers 0
OPENING ANGLE
40
SERVICE STG
Configure System >
Learning System >
Parameter >
Maintenance >
Functions >
Operation Mode >
PARAMETER
Driving cycle >
Time delay open >
Drive >
Entrance system >
Manual control >
Control panel >
DRIVE
Opening angle 40
Obstruction 20
Obstruction
Brake 0
Types of arms 0
Invers 0
OBSTRUCTION CLOSE
20
SERVICE STG
Configure System >
Learning System >
Parameter >
Maintenance >
Functions >
Operation Mode >
PARAMETER
Driving cycle >
Time delay open >
Drive >
Entrance system >
Manual control >
Control panel >
DRIVE
Opening angle 40
Obstruction close 20
Obstruction open 20
Brake 0
Types of arms 0
Invers 0
OBSTRUCTION OPEN
20
