RED SCARLET-X - Side SSD Module

COPYRIGHT © 2012 RED Digital Cinema 955-0003_v3.2, Rev-A1
20
• Record Status LED: Indicates record status:
o LED Off = No Media present.
o LED Green = Ready to Record
o LED Red Constant = Recording
o LED Red Slow Blink = Recording, 25% Media Left
o LED Red Fast Blink = Recording, 5% Media Left
o LED Yellow = Finalizing
• Both LEDs: Indicates camera status:
o Both LEDs Green Blink = firmware update in Progress

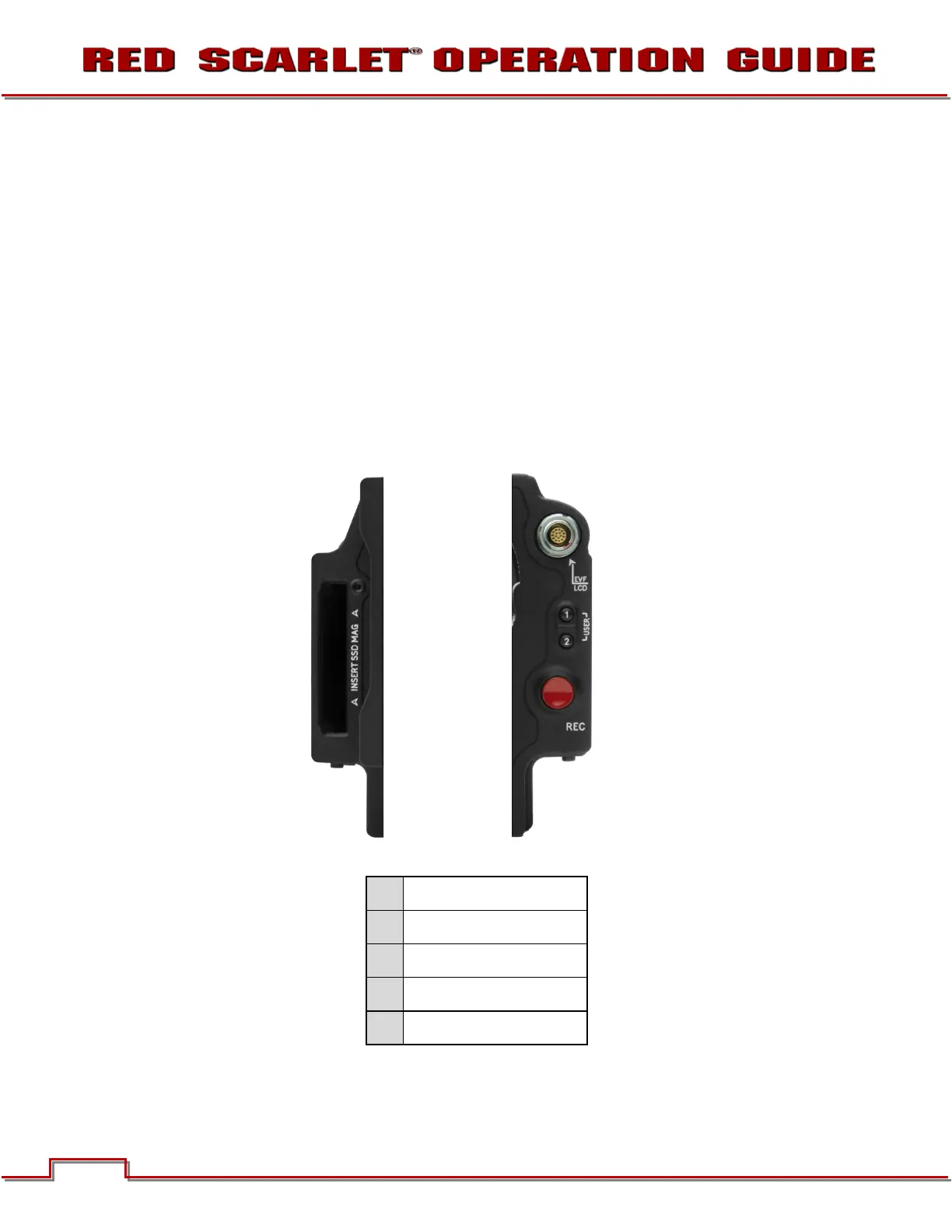

SIDE SSD MODULE
A
SSD Slot
B
User Key 1
C
User Key 2
D
Focus / Record Button
E
Media Indicator
Side SSD Module Controls
B
C
A
D
FRONT
REAR
E
