QUAD BATTERY MODULE
The optional QUAD BATTERY MODULE accepts up to four REDVOLT or up to two REDVOLT XL
batteries, which can power the camera and typical accessories.

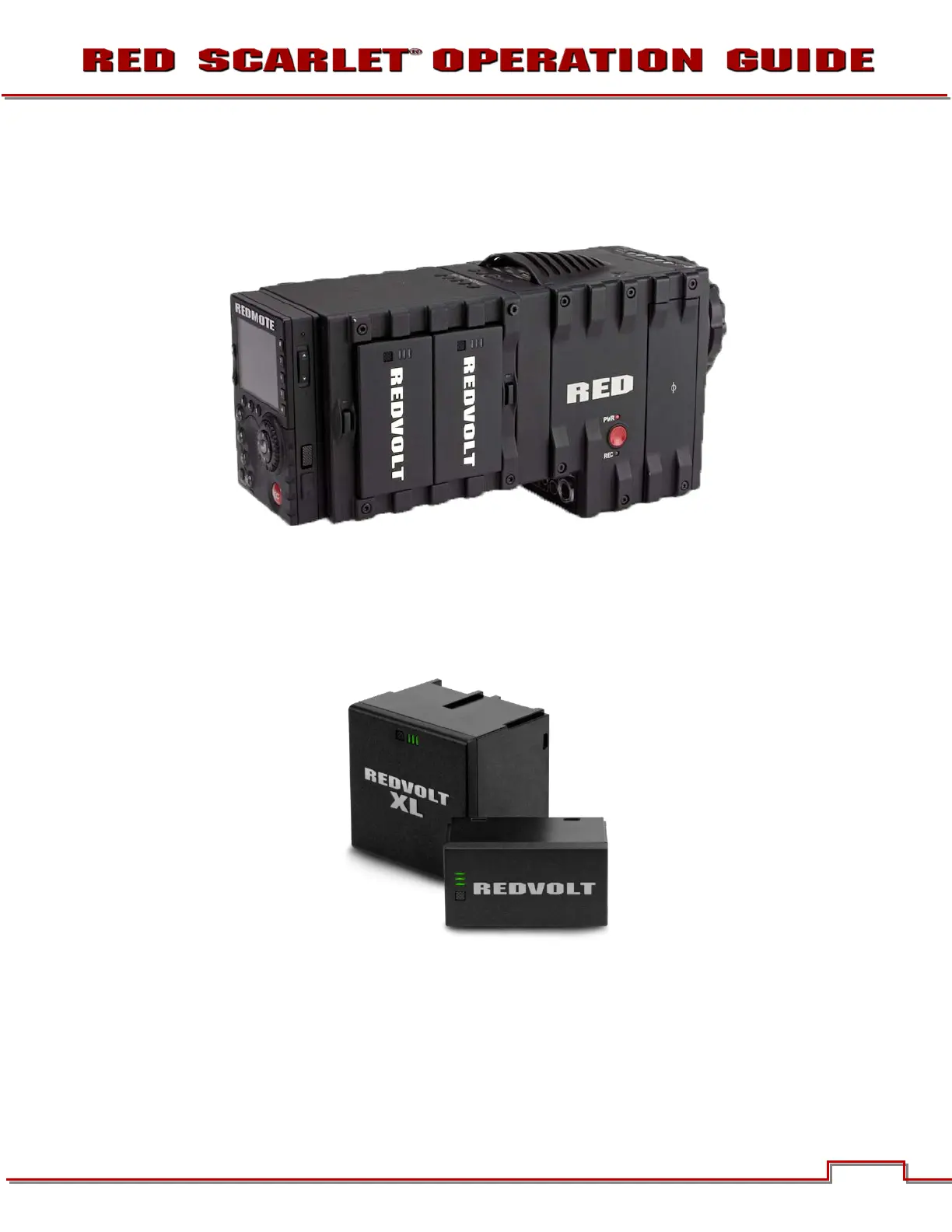

Figure 16: Quad Battery Module
REDVOLT AND REDVOLT XL
REDVOLT and REDVOLT XL
Note: When multiple batteries are installed in the Quad Battery Module, the power management circuit will
select the lowest charged battery to supply power to the camera. On depletion, a battery may be ejected
from the Quad Battery Module for re-charging, and a new charged battery may be inserted in its place. i.e.
batteries may be hot swapped, there is no need for the operator to power down the camera to replace a
REDVOLT battery when using the Quad Battery Module.
