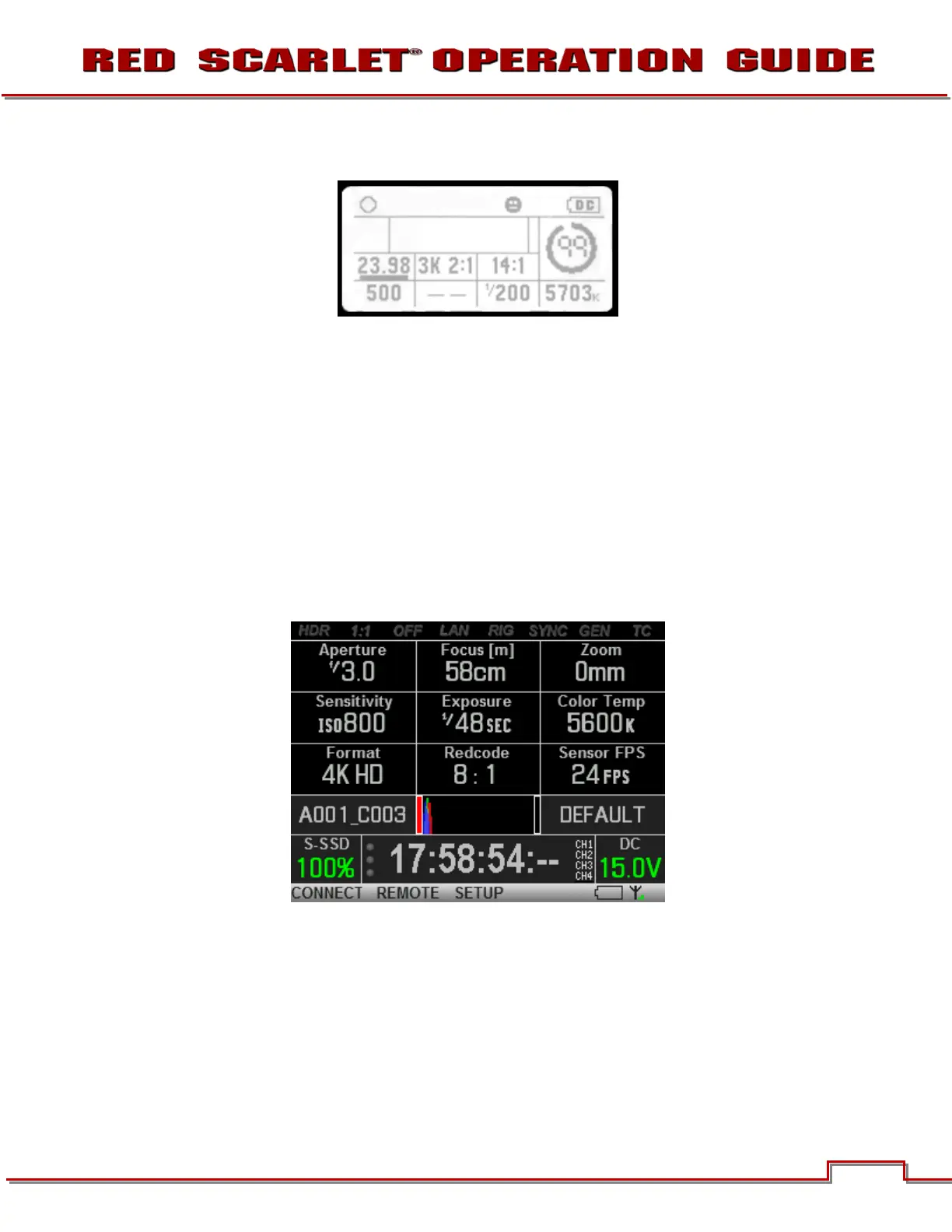

SIDE HANDLE
As you navigate and adjust settings on the camera (main menu settings only), they will be reflected on the
Side Handle LCD display.
The display elements include:
• Power: Camera power status (DC Shown)
• Frame Rate: Image capture rate
• Resolution Recording Resolution
• Quality: REDCODE setting
• ISO Rating: Camera sensitivity
• Shutter Speed: Exposure Time (or Degrees)
• White Balance: Color Temp
REDMOTE
The display elements include:
• Camera ID: Displays camera ID (DEFAULT
shown)
• Wireless Status: Displays signal strength
when connected wirelessly
• Battery Indicator: Displays battery life or
charge status (shown) of REDMOTE
• Resolution Recording Resolution
• Quality: REDCODE setting
• Frame Rate: Image capture rate
• ISO Rating: Camera sensitivity
