11-01
680 High Clearance Sprayer - Parts & Schematics
Section F

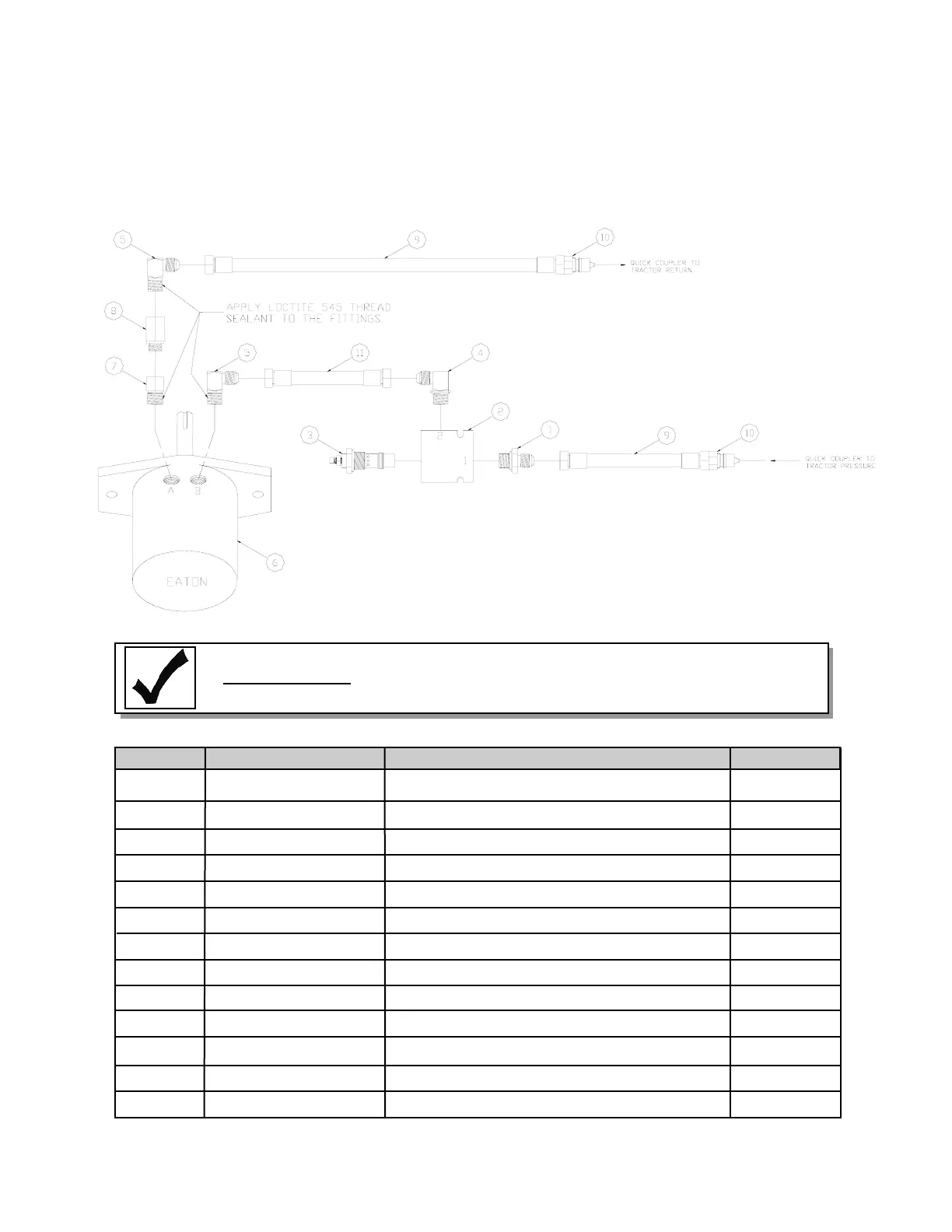

Description: Hydraulically Driven Diaphragm Pump Assembly,
Hydraulic Components Breakdown
38
Section F
1 6400-8-10 8 Male JIC - 10 Male SAE 1
2 7022240 Body 10-2 Port 1
3 FR1223CON Pressure Comp Flow Control 1
4 6801-8-10 8 Male JIC-10 SAE Male 1
5 2501-8-8 1/2” Male NPT-8 JIC Male 90° Elbow 2
6 103-1026* Hydraulic Motor w/.5” NPT Ports 1
7 6404-8-8 1/2” Male NPT -8 SAE Female 1
8 3320-0016 Check Valve, Body 1
3260-0039 Poppet (For Check Valve)
1820-0023 Retainer Ring (For Check Valve)
9 004656 Hyd. Hose; 180” 8FJX x 8 MP 2
10 8010-15P Hyd. Quick Coupler; Univ. Poppet 2
11 AM08HY08FJ-12 Hyd. Hose; Diaphragm Pump 1
Item# Part # Description Quantity
Ref-006294A
Be sure Check Valve, Item 8, goes into Port A.
Pressure compensated flow control, Item 3, is factory set at 10
GPM.
IMPORT
ANT
