Redball 680 - Page 90

11-01
680 High Clearance Sprayer - Parts & Schematics
Section F

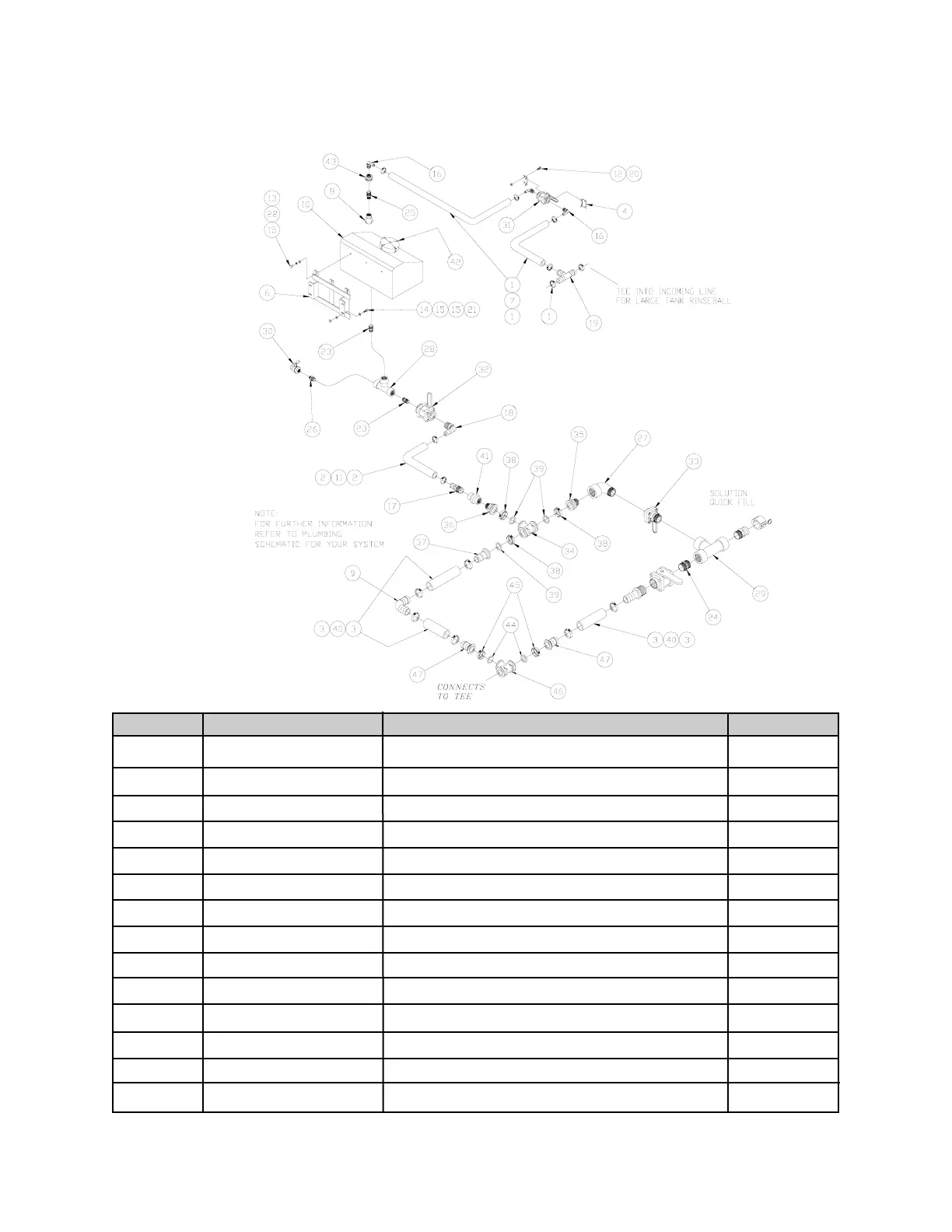

Description: Eductor Kit Assembly (Optional)
39
Section F
1 #16J Clamp, 1” Stainless 6
2 #20J Clamp, 1 1/4” Stainless 2
3 #36J Clamp, 2” Stainless 6
4 004556 Mount, 2 1/2” Valve 2
5* 004769 Decal, Eductor Rinse 1
6 004819 Weld, Eductor Mount 1
7 011612 Hose, 1” 150# Black Rubber
8 2000-6 Rinse Nozzle, Tank Rinse 1
9 3EL200HB Hose Fitting, 2” HBEL x 2” HB 1
10 6000-05 Tank, Eductor (Specify Color) 1
11 600201 Hose, 1 1/4” Wire Reinforce
12 BC-025-075-S Bolt, 1/4” x 3/4” Carriage 4
13 BH-031-075-2 Bolt, 5/16 x 5/8 Gr. 2 6
14 BH-031-100-2 Bolt, 5/16 x 1 Gr. 2 4
Item# Part # Description Quantity
* Not Shown
** Specify Color
Kit P/N 006243**
Ref-006256A
