12 | P36E-10 Zero Clearance Direct Vent Gas Fireplace
|
12
installation
COMBUSTIBLE MANTEL CLEARANCES
Because of the extreme heat this replace emits, the mantel clearances are critical.

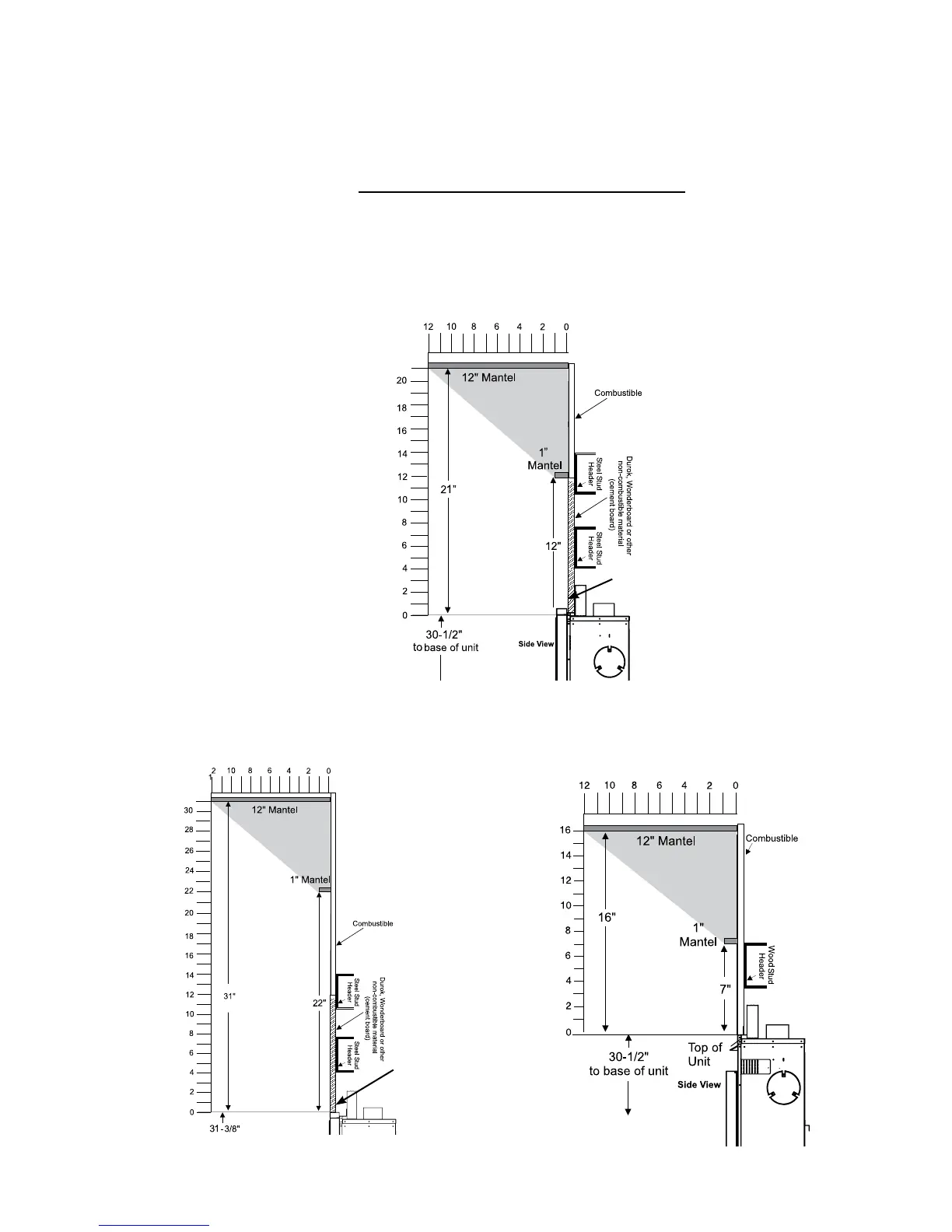

Combustible mantel clearances from top of unit are shown in the diagram below.
Note: Mantel starts at *1" deep and ends at *12" deep. **For Vignette with Vignette Finishing Trim ush nish, all materials (framing & nishing) below
the mantel and the width of the Vignette nishing trim, (37 1/2") must be non-combustible if a lower mantel is desired.
Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.
MANTEL CLEARANCES WITH VIGNETTE +
VIGNETTE FINISHING TRIM STEPPED FINISH
MANTEL CLEARANCES WITH
VIGNETTE + VIGNETTE FINISHING TRIM
FLUSH FINISH
MANTEL CLEARANCES WITH
SAFETY SCREEN AND LOUVERS
Vignette nishing
trim stepped nish.
Finished material
ush to appliance
Vignette nishing
trim, ush nish.
Finished material
ush to Vignette
nishing trim.
