Regency P36E-NG10 - Unit Assembly Prior to Installation; Venting Introduction

P36E-10 Zero Clearance Direct Vent Gas Fireplace | 17
17
|
installation
Side
Nailing Strips
"C" Screw Position:
For a facing material depth of 1-1/4" (32mm), the
top facing support must be reversed.
UNIT ASSEMBLY
PRIOR TO
INSTALLATION

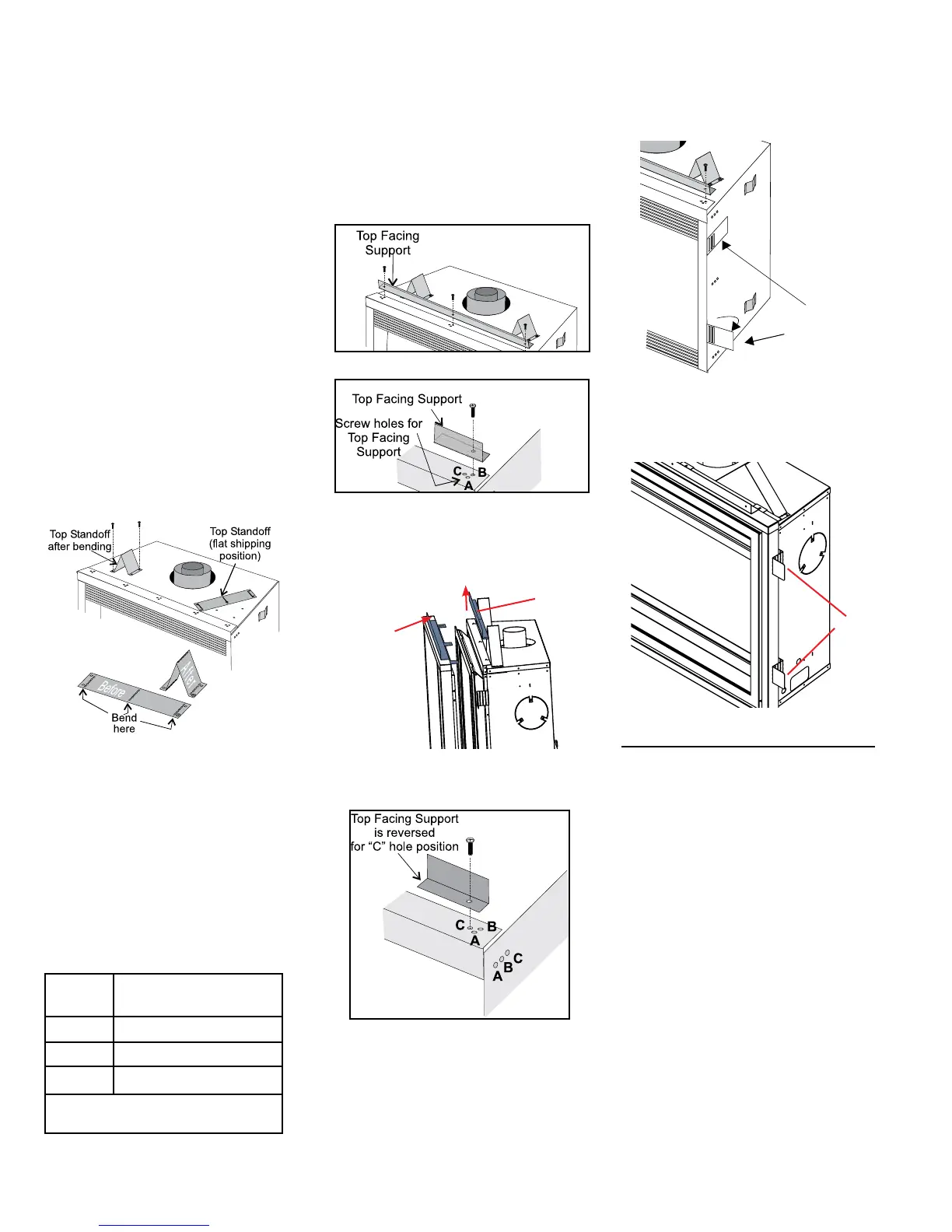

The Top Facing Support, the Side Nailing Strips
and the 2 Top Stando󰀨s must be correctly
positioned and attached to the top before unit
is slipped into position.
Top Stando󰀨 Assembly
The top stando󰀨s are shipped in a at position
and must be folded into shape and attached.
1) Remove the standoffs from the fireplace top.
2) Take each standoff and bend into the correct
shape. Bend up at the bend lines until the
screw holes in the standoff and the pre-
punched screw holes on the fireplace top
line up.
3) Attach the standoff securely to the top with
2 screws per standoff (on opposite corners).
VENTING
INTRODUCTION
The P36-10 uses the "balanced ue"
technology Co-Axial system. The inner liner
vents products of combustion to the outside while
the outer liner draws outside combustion air into
the combustion chamber thereby eliminating the
need to use heated room air for combustion and
losing warm room air up the chimney.
Note: These flue pipes must not be
connected to any other appliance.
The gas appliance and vent system must be
vented directly to the outside of the building,
and never be attached to a chimney serving a
separate solid fuel or gas burning appliance.
Each direct vent gas appliance must use it's own
separate vent system. Common vent systems
are prohibited.
NAILING STRIPS
Determine the total thickness of facing material
(e.g. non combustible plus ceramic tiles) to allow
the nished surface to be ush with the front of
the unit. Total facing thickness can vary from
1/2" (13mm) to 1-1/4" (32mm) thick.
The Top Facing Support can be mounted in 3
di󰀨erent positions depending on the thickness
of the facing material.
Side
Nailing Strips
2) Fold out the two nailing strips on each side.
If nishing ush with the VIgnette Finishing Trim
-bend nailing strips around side trim pieces as
shown below.
1) Mount Top Facing Support using the
3 supplied screws into the three pre-
punched screw holes on the top front of
the unit. Use hole positions A, B, or C
depending on your facing depth.
Screw
Position
Facing Material
Depth
A 1/2" / 13mm
B 7/8" / 22mm
C* 1-1/4" / 32mm
* For "C" screw position the top facing
support is reversed.
NOTE:
If nishing ush with the VIgnette Finishing Trim -
remove top nailing strip (facing support) if already
installed and use the nailing strip supplied with
the Trim.
Nailing strip
supplied with
trim
Remove
Nailing strip
from unit if
installed
Side
nailing
strips bent.
