Regency P36E-NG10 - Optional Vignette Inlay

P36E-10 Zero Clearance Direct Vent Gas Fireplace | 45
45
|
installation

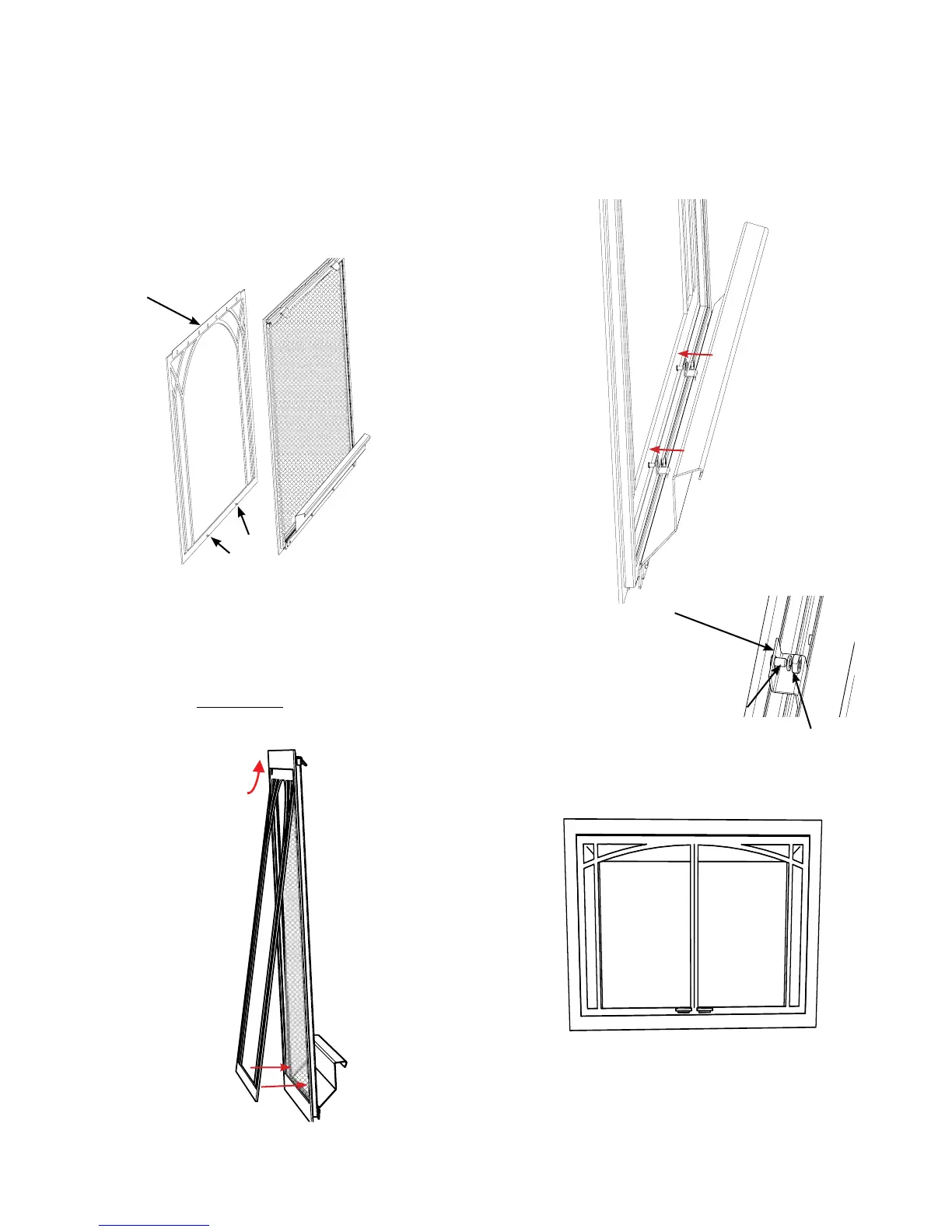

OPTIONAL VIGNETTE INLAY INSTALLATION
919-559
05.21.15
1. Remove Inner Vignette Frame from unit if already installed.
2. Line up the inlay top bracket in the space between the safety
screen frame and Vignette Frame. Slide the Inlay bracket up until it
rests on the inside edge of the Vignette Frame.
OPTIONAL VIGNETTE INLAY
Completed Install
3. Position the Inlay so it is exactly centered from side to side and top
to bottom within the Inner Vignette Frame.
4. With the top of the Inlay in correct position–push the studs at the
bottom of the Inlay through the actual screen.
NOTE: Ensure Inlay is in correct position before pushing studs through
the safety screen.
5. Secure the Inlay in position with supplied brackets, washers, and
nuts as shown.
Bracket
(supplied)
Nut + washer
(supplied)
Stud
Line up Inlay–Push studs on
Inlay through screen
Inlay top
bracket
Studs at back of
Vignette Inlay
Back of Inner
Vignette Frame
NOTE: Inlay not exactly as shown below.
