Regency P36E-NG10 - Framing with Vignette Faceplate; Framing with Vignette Faceplate & Finishing Trim Finished Flush; Framing with Louvers and Safety Screen

14 | P36E-10 Zero Clearance Direct Vent Gas Fireplace
|
14
installation
Frame in the enclosure for the unit with framing
material. The framed opening is 40-3/4" high x
36-1/4" wide x 12-3/4" deep (1036mm high x
921mm wide x 324mm deep).
Frame in the enclosure for the unit with framing
material. The framed opening is 41-5/8" high x
38" wide x 14-3/4" deep (1057mm high x 965mm
wide x 375mm deep).
All other framing may be of combustible
materials, i.e. 2 x 4, 2 x 6
All other framing may be of combustible
materials, i.e. 2 x 4, 2 x 6
Vignette Framing Dimensions
A B C D
36-1/4" 40-3/4" 12-3/4" 46"*
921mm 1036mm 324mm 1168mm*
* 'D' is Minimum height to combustible materials
including the Minimum 2" (51mm) Top clearance
to the Horizontal Vent.
Vignette + Finishing Trim - Flush Finish
Framing Dimensions
A B C D
38" 41-5/8" 14-3/4" 46"*
965mm 1057mm 375mm 1168mm*
* 'D' is Minimum height to combustible materials
including the Minimum 2" (51mm) Top clearance
to the Horizontal Vent.
Safety Screen + Louvers
Framing Dimensions
A B C D
36-1/4" 36-1/4" 12-3/4" 46"*
921mm 921mm 324mm 1168mm*
* 'D' is Minimum height to combustible materials
including the Minimum 2" (51mm) Top clearance
to the Horizontal Vent.

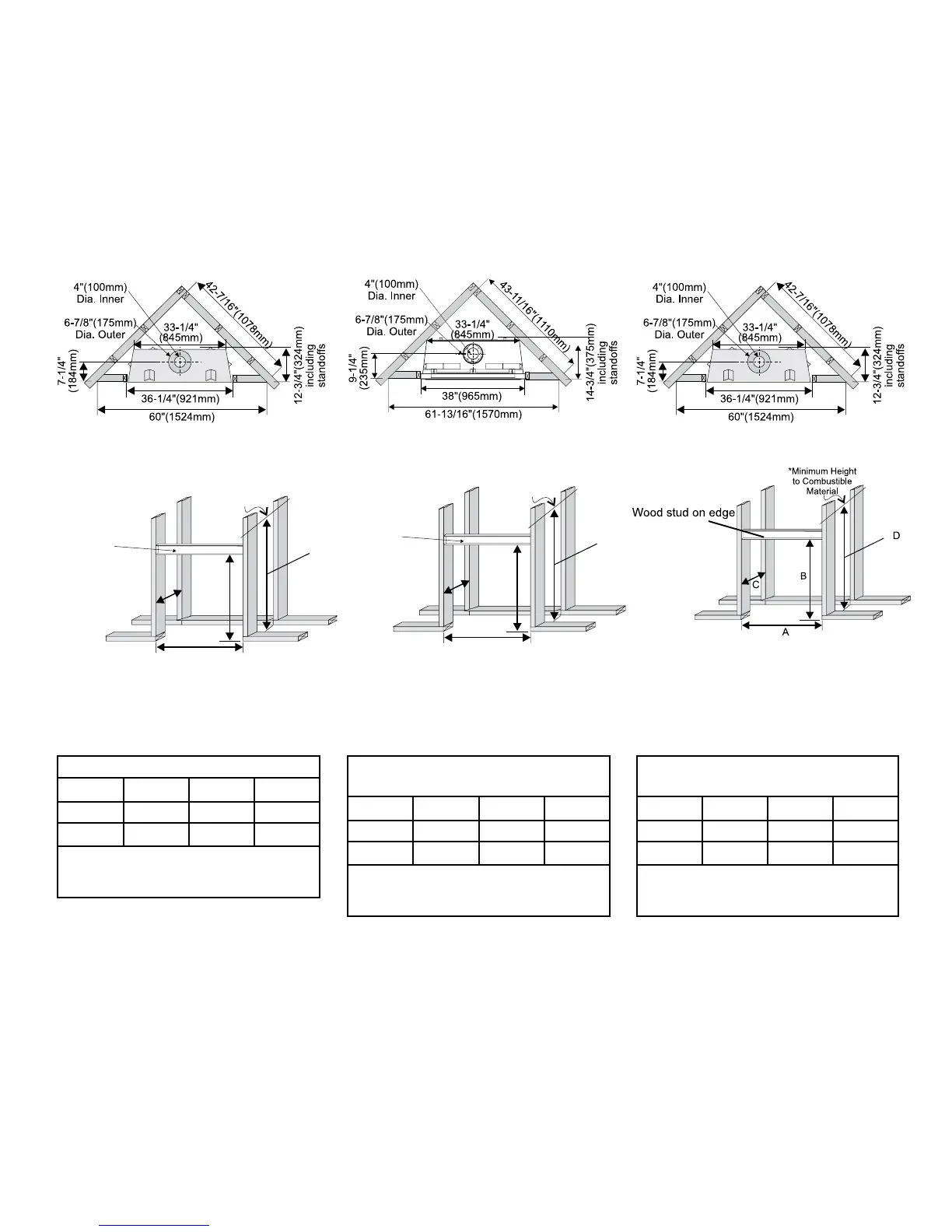

Diagram 1 Diagram 3 Diagram 5
Diagram 6
Diagram 2 Diagram 4
B
Steel stud on edge
A
C
D
*Minimum Height
to Combustible
Material
B
Steel stud on edge
A
C
D
*Minimum Height
to Combustible
Material
Frame in the enclosure for the unit with framing
material. The framed opening is 36-1/4" high
x 36-1/4" wide x 12-3/4" deep (921mm high x
921mm wide x 324mm deep).
FRAMING WITH
VIGNETTE FACEPLATE/VIGNETTE
FINISHING TRIM, STEPPED FINISH
FRAMING WITH VIGNETTE
FACEPLATE & FINISHING TRIM
FINISHED FLUSH
FRAMING WITH
LOUVERS AND SAFETY SCREEN
NOTE: If using the optional Vignette nishing trim, this can be installed as a 3-sided or 4 sided nish trim. If choosing to use this as a 4 sided nish trim the
framing would need to be increased by 1-1/4" inches minimum in order for this to t. This must be to the nished oor. (Eg: Diagram 2 B= 40-3/4" framing
height + 1-1/4". Bottom of 4-sided nishing trim +1/2 thick nished oor = 42-1/2".
If choosing to nish this appliance as a ush nish (Diagram 4) when using the Vignette along with the Vignette nishing trim, see installation
instructions in this manual for details on installation,framing and nishing.
