Regency P36E-NG10 - Finishing

P36E-10 Zero Clearance Direct Vent Gas Fireplace | 15
15
|
installation

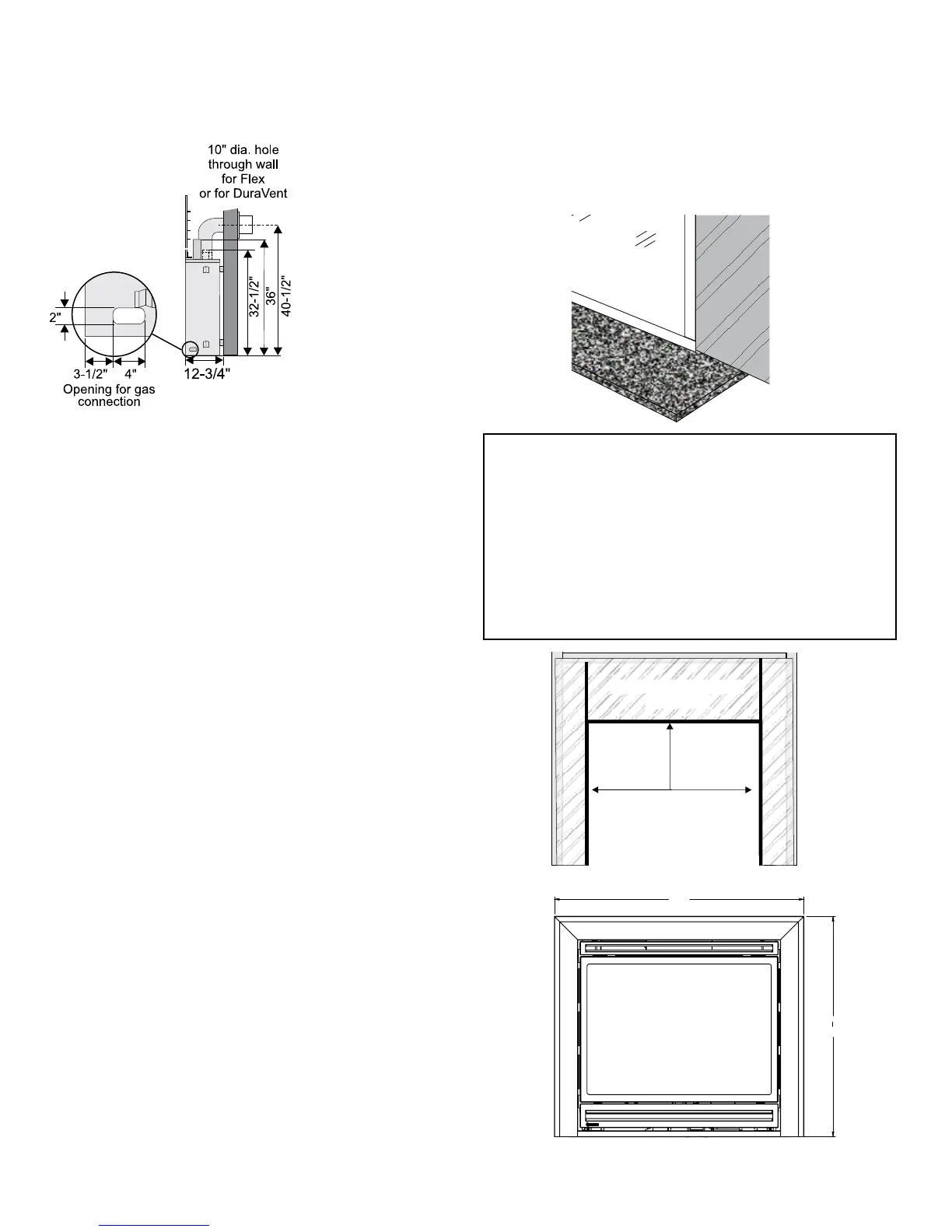

FINISHING
Non-combustible
Material
J-styleTrim
or metal corner bead
may be used to finish these
edges
Combustible
Material
Combustible
Material
Diagram 2
IMPORTANT FINISHING DETAIL NOTE:
Before placing unit into nal position - it is important to know the total
thickness / height of nished hearth (tile, carpet, etc.) The base of the
replace should be level or higher than the nished hearth height.
Diagram 3 Shown with optional nishing trim
Note: All non-combustible and combustible facing material should
butt up cleanly to the flanges around the firebox opening.
Rough edges will be visible from the front view with the Vignette
faceplate - if not using the optional finishing trim.
To maintain a clean finished edge - it is recommended to install
the combustible facing material with the finished edge against the
fireplace / nailing strips.
Alternatively, you can use J Style Trim or Metal Corner Bead
to cover cut edges of the non-combustible facing material.
38
"
33
3
4
"
Diagram 1
Note: 40-1/2" (1029mm) is the minimum height
for both ex termination or rigid pipe
venting.
Note: The unit does not have to be completely
enclosed in a chase. The clearance on
top of the unit is 0" to the stando󰀨s so
combustible building materials can be
laid directly on top of the stando󰀨s. You
must maintain 1-1/2" (38mm) clearance
from the vent to combustible materials
for ex (1-1/4" for Rigid Pipe).
Use steel studs for framing where the 1-1/2"
(38mm) clearance from the vent to combustible
material cannot be maintained, e.g. front top
header.
Diagram 3
