Regency P36E-NG10 - Horizontal or Vertical Terminations; Rigid Pipe Venting Systems

22 | P36E-10 Zero Clearance Direct Vent Gas Fireplace
|
22
installation

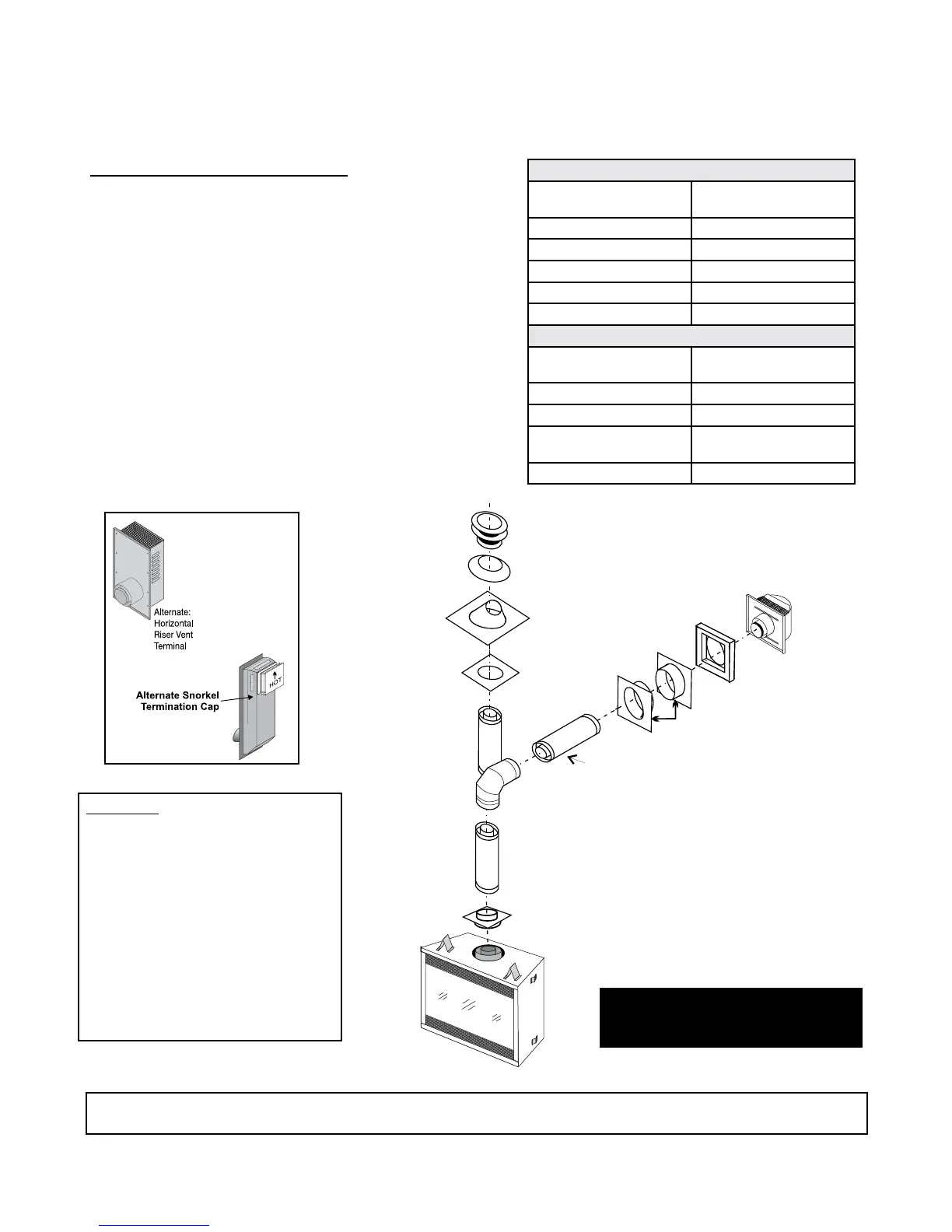

RIGID PIPE VENTING SYSTEMS
Horizontal or Vertical Terminations
The minimum components required for a basic horizontal termination are:
1 Horizontal Termination Cap
1 90
o
Elbow
1 Rigid Pipe Adaptor
1 Wall Thimble
1 Length of pipe to suit wall thickness (see chart)
Wall thickness is measured from the back stando󰀨s to the inside mounting
surface of termination cap. For siding other than vinyl furring strips may be
used, instead of the vinyl siding stando󰀨, to create a level surface to mount the
vent terminal. The Terminal must not be recessed into siding. Measure the wall
thickness including furring strips.
If a Vinyl Siding Stando󰀨 is required (it must be used with vinyl siding), measure
to outside surface of wall without siding and add 2 inches.
Flat Wall Installation
Wall Thickness
(inches)
Vent Length Required
(inches)
4" - 5-1/2" 6"
7" - 8-1/2" 9"
10" - 1-1/2" 12"
9" - 14-1/2" 11" - 14-5/8" Adj. Pipe
15" - 23-1/2" 17" - 24" Adj.
Corner Installation
Wall Thickness
(inches)
Vent Length Required
(inches)
3-1/4" - 6-3/4" 11" - 14-5/8" Adj. Pipe
7-3/4" - 16-1/4" 17" - 24" Adj. Pipe
7-1/4" - 8-3/4" 6" + 12"
9" + 9"
4-1/4" - 5-3/4" 6" + 9"
Rigid Pipe Adaptor
Pipe Length
Vertical
Termination
Cap
Storm Collar
Flashing
Ceiling Firestop
24" Pipe
Length
Adj.Pipe Length
11"-14-5/8"
90 Elbow
o
Horizontal
Termination
Cap
Wall Thimble
Vinyl Siding
Standoff (Optional)
Alternate
Horizontal Ter-
mination Caps
(Must be used with all Rigid Piping)
This product has been evaluated by Intertek
when using a rigid pipe adaptor and use of
any of the specic chimney systems listed in
this manual. Use of these systems with the
rigid pipe adaptor is deemed acceptable and
does not a󰀨ect the Intertek WHI listing of these
components.
WARNING:
Do not combine venting components from
di󰀨erent venting systems.
However use of the the AstroCap
TM
and
Regency Riser is acceptable with all systems.
When using Rigid Vent other than
Simpson Dura-Vent, 3 screws must be
used to secure rigid pipe to adaptor.
The Regency AstroCap
TM
and Regency Riser Vent terminal are certied for installations using Regency venting systems as well as any specic
chimney systems listed in this manual. AstroCap
TM
is a proprietary trademark of Regency Fireplace Products.
