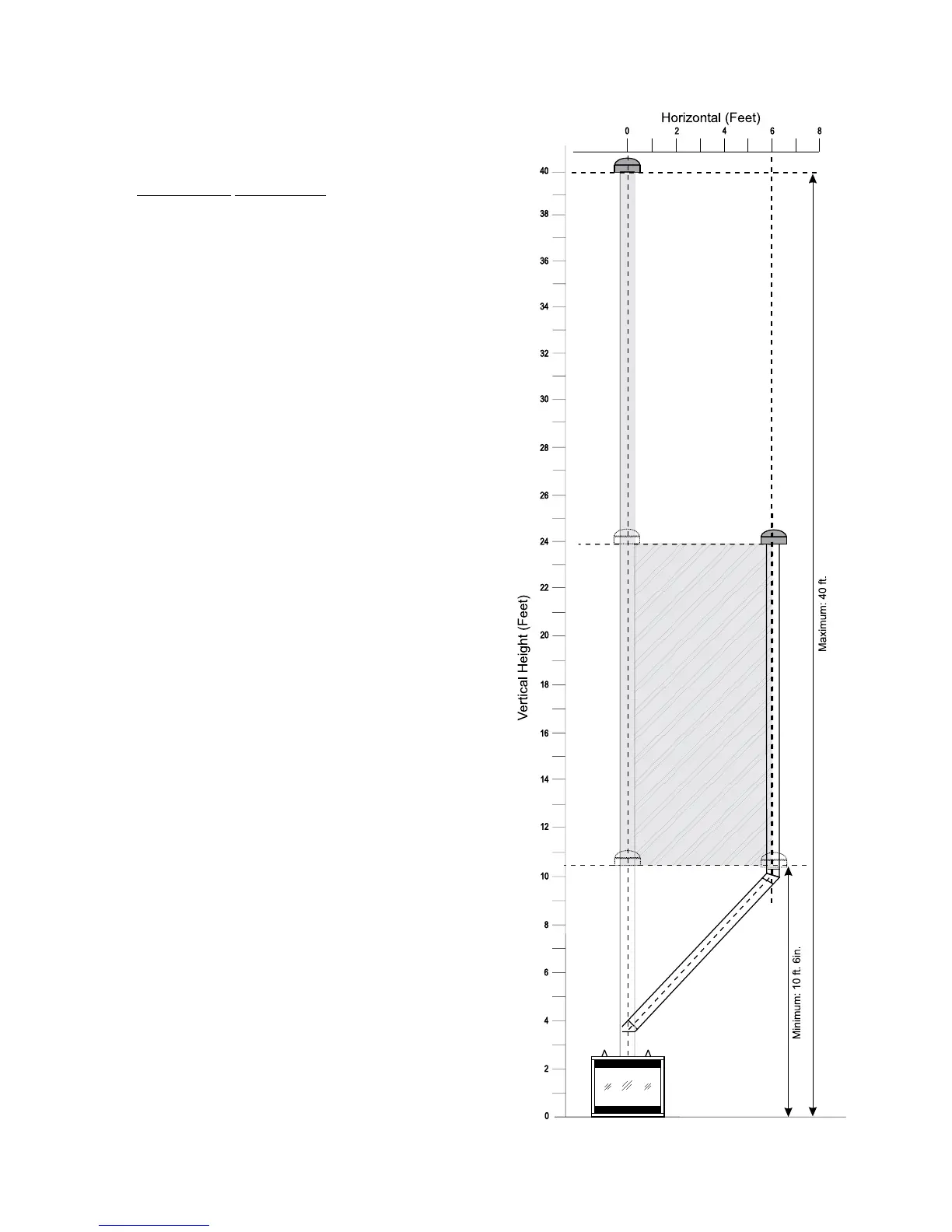

Diagram 1
The P36E is approved for a 40 ft. straight vertical, with rigid pipe vent systems
for Propane and Natural Gas, as per the diagram 1.
The shaded area in the diagram 1 shows all allowable combinations of straight
vertical and oset to vertical terminations with rigid pipe vent systems for Propane
and Natural Gas. Maximum two 45
o
elbows allowed.
• Vent must be supported at offsets.
• Firestops are required at each floor level and whenever passing through
a wall.
• Maintain clearances to combustibles.
