Reliance 7900 - MODEL 7900 INSTRUMENT STAND ASSEMBLY DIAGRAM; Instrument Stand Assembly Exploded View

IN-7900
31

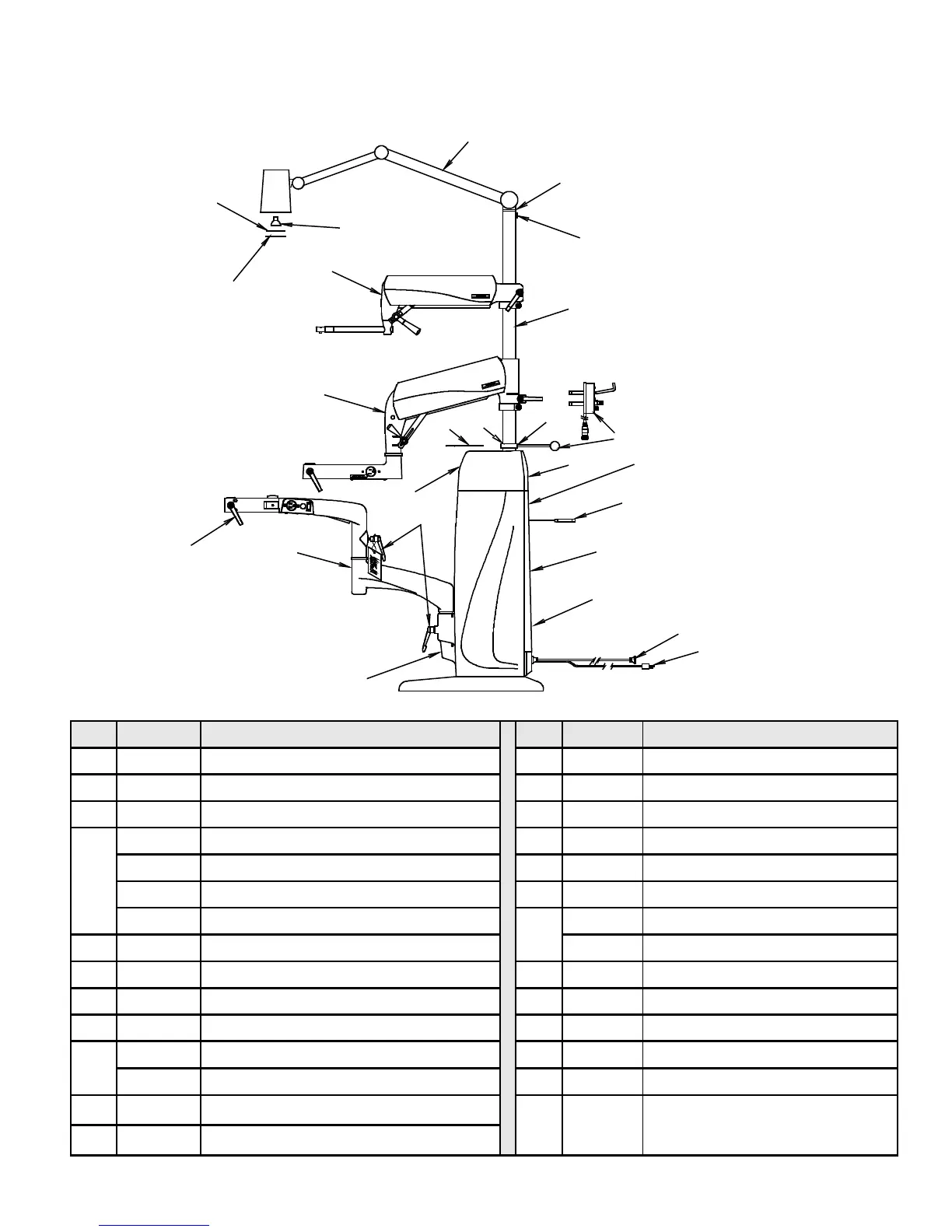

FIGURE 23
MODEL 7900 INSTRUMENT STAND ASSEMBLY
10
14
21
7
8
15
9
6
13
18
3
4
11
22
19
2
19
16
17
20
23
5
MODEL A N D SERIAL
NUMBER PLATE
1
12
ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION
1
Base Assembly* (See Figure 24 )
12
0514780 Collar-Chrome
2
Slit Lamp Arm Assembly* (See Figure 28)
13
0722699 Sckt. H.S.S. 1/4 x 1/4
3
Console* (See Instrument Console Section)
14
1677399 Lens
4
2034392 Dual B/P Assembly
15
0715799 Round H.M.S #10 x 1/4
2034499 Twist Lock Hubbell Receptacle
16
1971599 Lock Cover
2034503 Cover Plate - P.CT*
17
1550599 Chair Control Cable
2040103 Indirect Receptacle Assembly
18
1979592 Instrument Hanger Assembly
5
Refractor Arm Assembly* (See Figure 29) 2054092 Indirect Hanger Kit (I.R. Only)
6
Au
xiliary (Third) Arm* (See Figure 30)
19
2035199 Locking Handle
7
525106 Lamp Assembly*
20
1659299 Power Cord Assembly
8
0541680 Snap Plug
21
1677499 Retaining Ring
9
1974599 Support Tube (Shown)
22
1682199 Caution Label
0537399 Column Stub 23 1969499 Lexan Shelf
10
1569799 Bulb-12vdc, 20w, Type G4
24
1568699 Chair Control Assembly (Not Shown)
(used only to connect new stands to old
chairs)
11
0503599 Support Pin
