REM - GRAINVAC VR12 4. OPERATION
4.9. SHUTDOWN PROCEDURES
9000-00-0042 R3 47

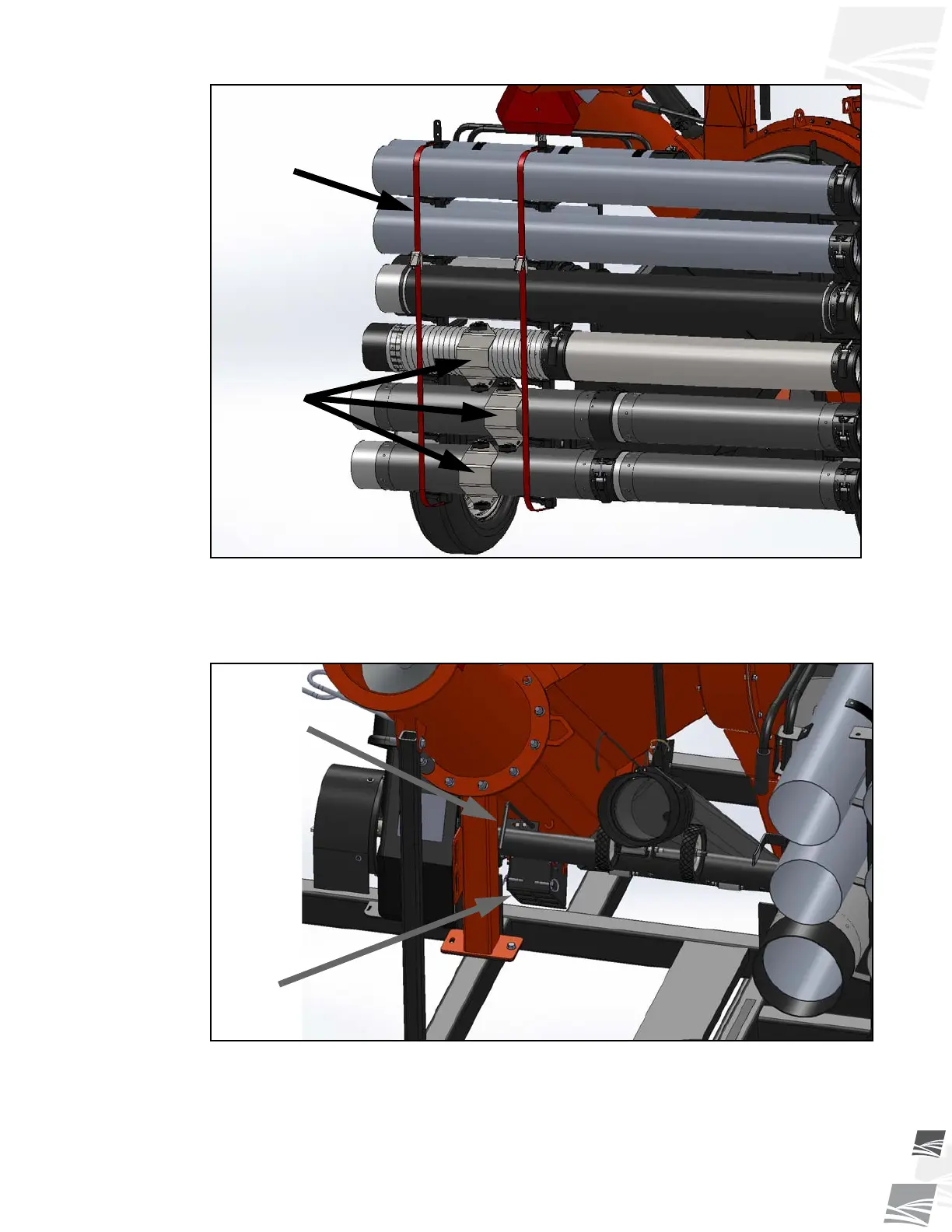

Figure 4.17 Hose Storage
5. Open the auger clean-out door by pulling the handle located under the first auger
section tube and check to ensure the grain drains out and does not bridge around
the mesh (see Figure 4.18).
Figure 4.18 Auger Clean-Out Box
6. Insert the plug into the vac body inlet and secure using the over-center clamp.
7. Check for overhead obstructions to ensure there is adequate clearance to lower the
auger tube into transport position.
RETAINER
STRAPS
HOSE
CADDIES
AUGER
CLEAN-OUT
HANDLE
AUGER
CLEAN-OUT
BOX
