REM - GRAINVAC VR12 6. SERVICE
6.5. REAR & FRONT WEAR WRAPS REPLACEMENT
9000-00-0042 R3 83

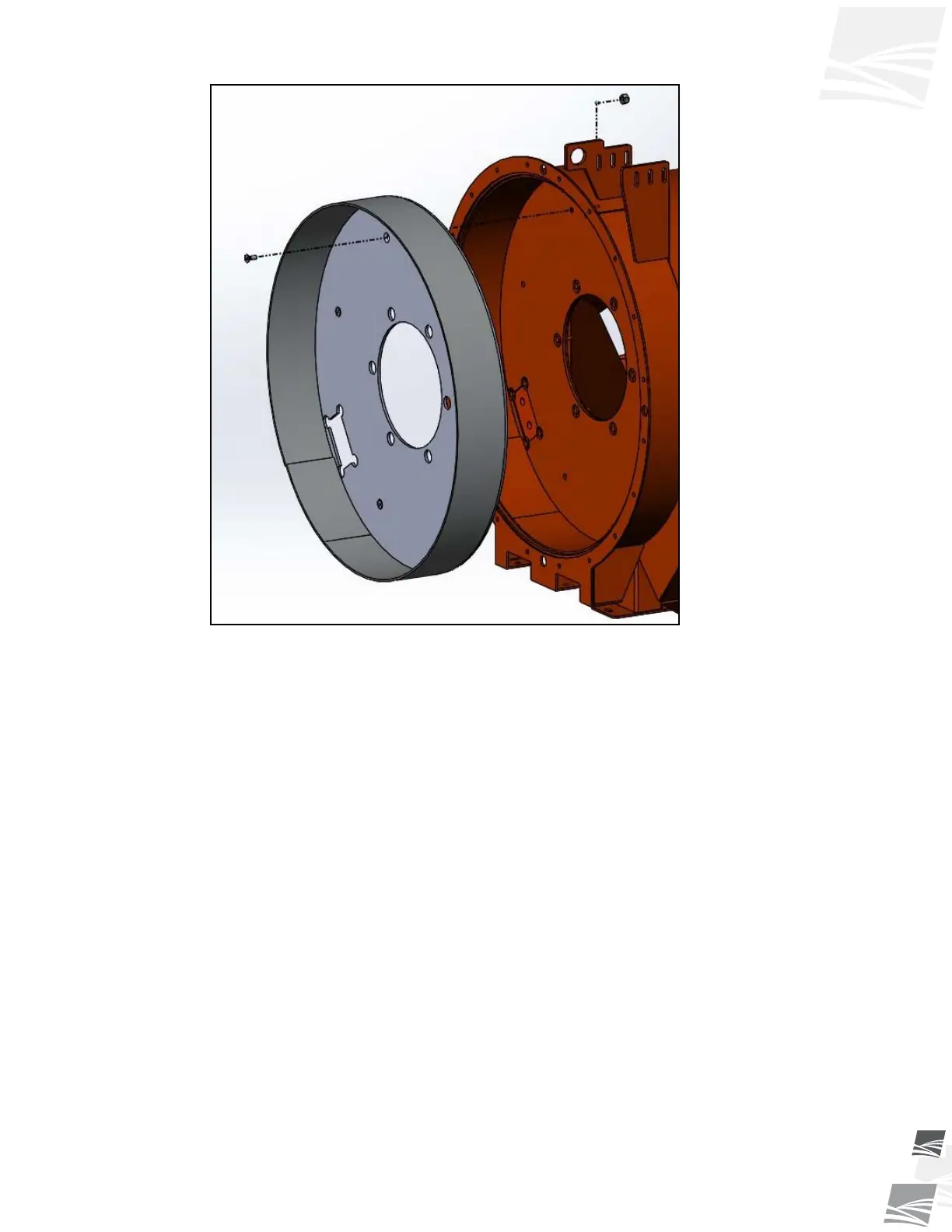

Figure 6.10 Front Wear Wrap
8. CLEAN ALL DEBRIS out of the rotor housing. Inspect the rotor housing for any
excessive wear.
9. Install the new front wear wrap, lining up the bolt holes to the body and making sure
the inspection window is lined up.
10. To reinstall the rotors and stator onto the rotor drive shaft, to reinsert the pedestal/
rotors assembly into the rotor housing on the vac body, and to reinstall the belt idler
assembly, refer to step 21. in Section 6.3.1. Rotors – Removal and Full Inspection.
