Equator Controller specifications and electrical ratings
Controller electrical supply requirements
100 V AC - 240 V AC ±10%, 50 Hz - 60 Hz
Maximum rated power consumption
300 W
Maximum power consumption*
190 W
Typical power consumption**
100 W
Controller dimensions (W × D × H)***
140 mm × 330 mm × 350 mm
Controller weight
8 kg
Communication with Equator
PCIexpress
Display type
HDMI or Display port
Display resolution
1920 x 1080 60hz
* Peak consumption at power-up
** 3-axis gauging system taking touch points under DCC control + peak consumption at power-up
*** Allow an additional 100 mm for cable connectors and cables
Operating conditions
The Equator Controller is specified to operate under the following conditions as defined in BS EN 61010-
1:2001.
Altitude
Maximum 2000 m
Operating temperature
+5 °C to +50 °C
Storage temperature
-25 °C to +70 °C
Relative humidity
Maximum 80% RH at 40 °C, non-condensing
Transition voltages
Installation category II
Pollution degree
2

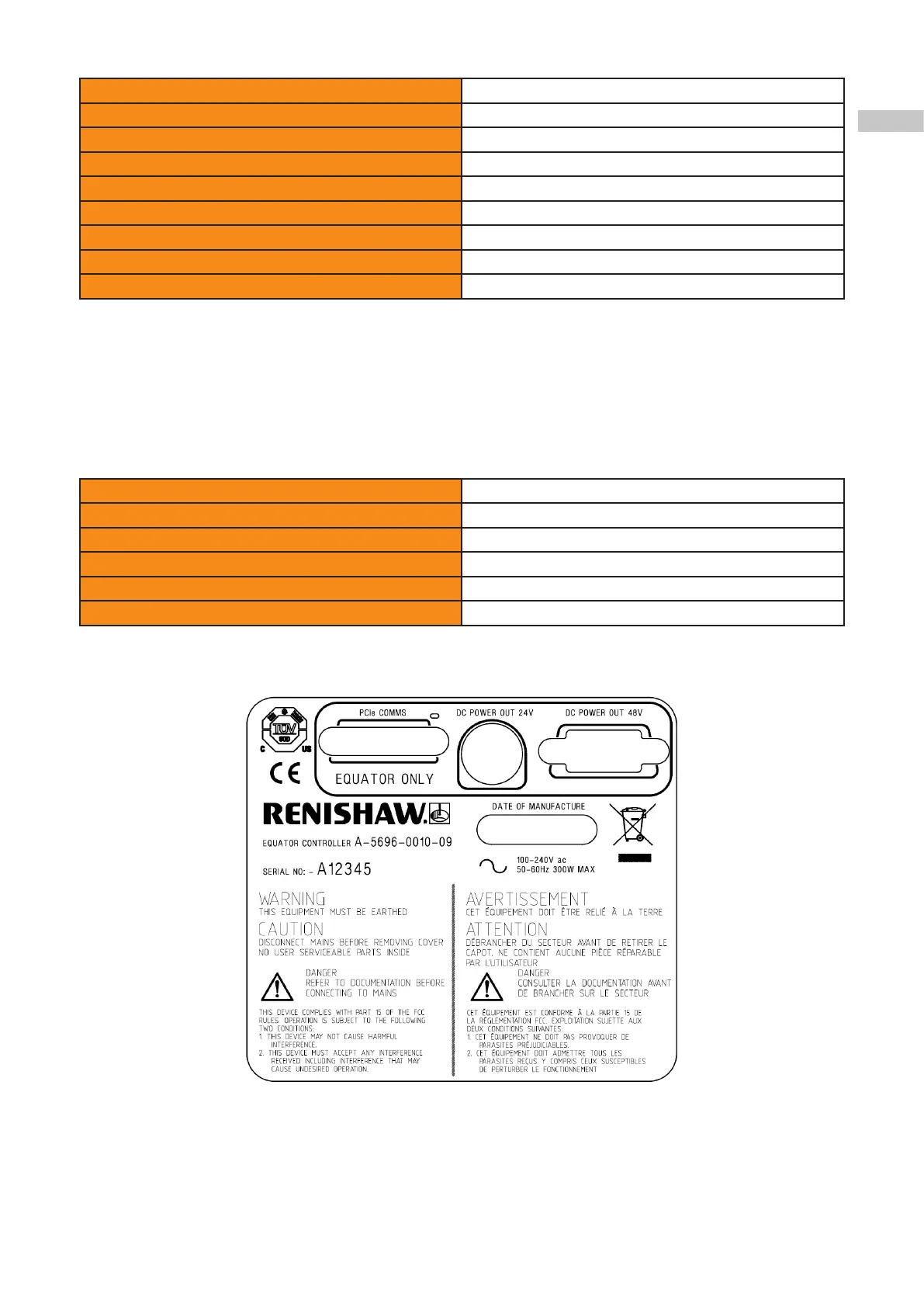

Equator Controller labels
23
