53
Connecting styli
Equator 300

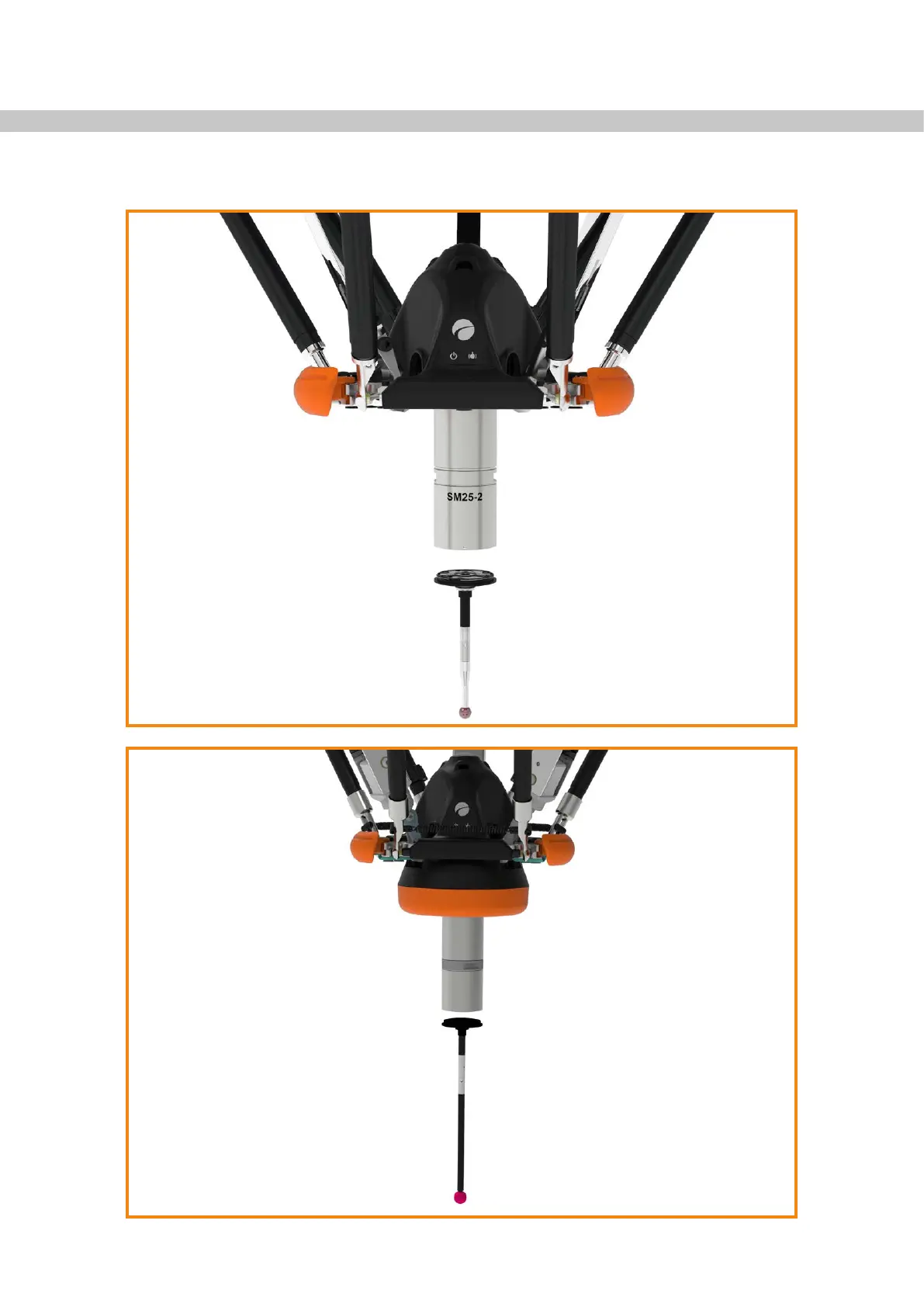

Attach the stylus to the probe module. The silver alignment marking should be towards you. There is a faint click
when the magnets lock the kinematic coupling in place.
Equator 500
