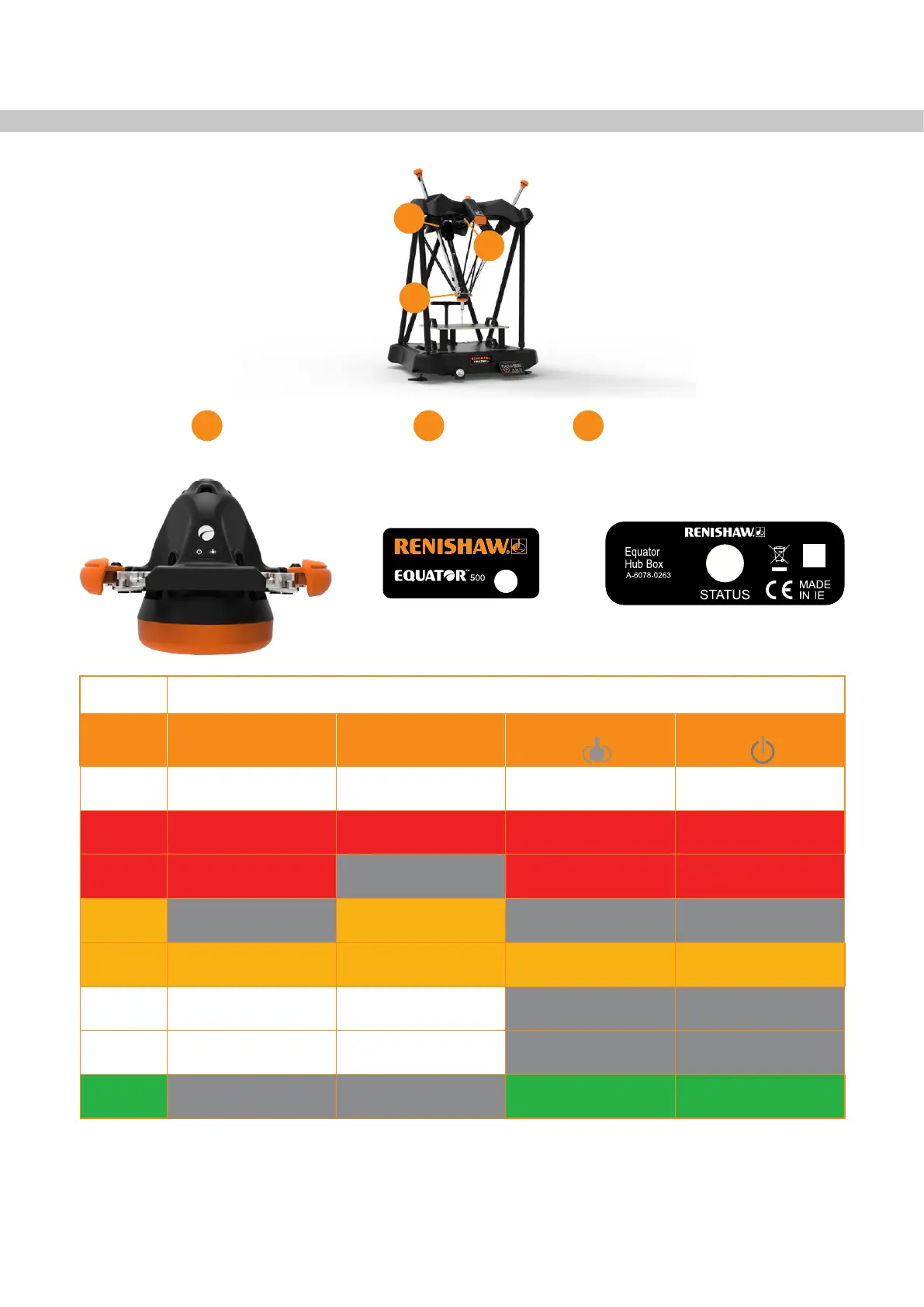

Equator 500 lights and signals
C
M
Y
CM
MY
CY
CMY
K
H-6078-2760-01-A.pdf 1 1/6/2017 12:12:20 PM
A
B
C
A
B
C
Colour Drive Hub Platform left Platform right
Off No power No power No power No power
Solid red
Machine disengaged/
error
Machine disengaged/
error
Machine disengaged/
error
Probe fault
Red
flashing
No communications N/A No communications No probe present
Amber
flashing
N/A
Update failed
Machine initialising
N/A N/A
Solid
amber
Machine initialising/
disengaged
Update failed
Machine initialised
Machine initialising Machine initialising
White Machine engaged Machine initialised N/A N/A
White
pulse
Machine engaged with
idle brake
Machine initialising N/A N/A
Solid
green
N/A N/A Machine engaged Machine engaged
Floating platform Drives Hub
LED
