Renishaw Equator - Equator Button Interface Specifications; Button Interface Controls and Functions

27

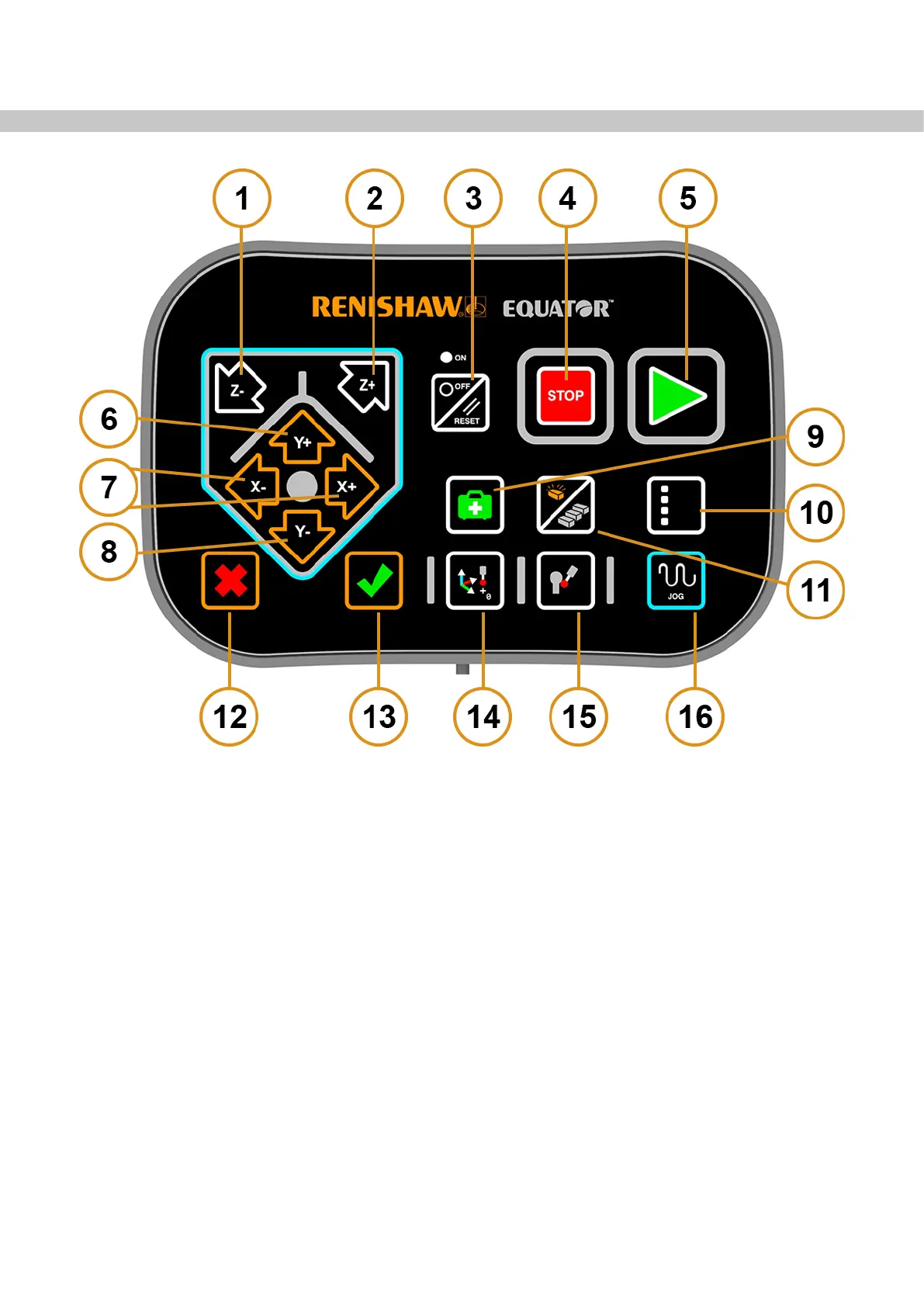

1. Z- direction button
2. Z+ direction button
3. Off/Reset button
4. Stop button
5. Play button
6. Y+ direction button
7. X- and X+ direction buttons
8. Y- direction button
9. Recovery button
10. Switch windows button
11. Switch between Master or Measure mode button
12. Cancel button
13. Confirm button
14. Initial point alignment program button
15. Calibration button
16. Jog enable button
Equator Button Interface specications
