Renishaw Equator - Page 68

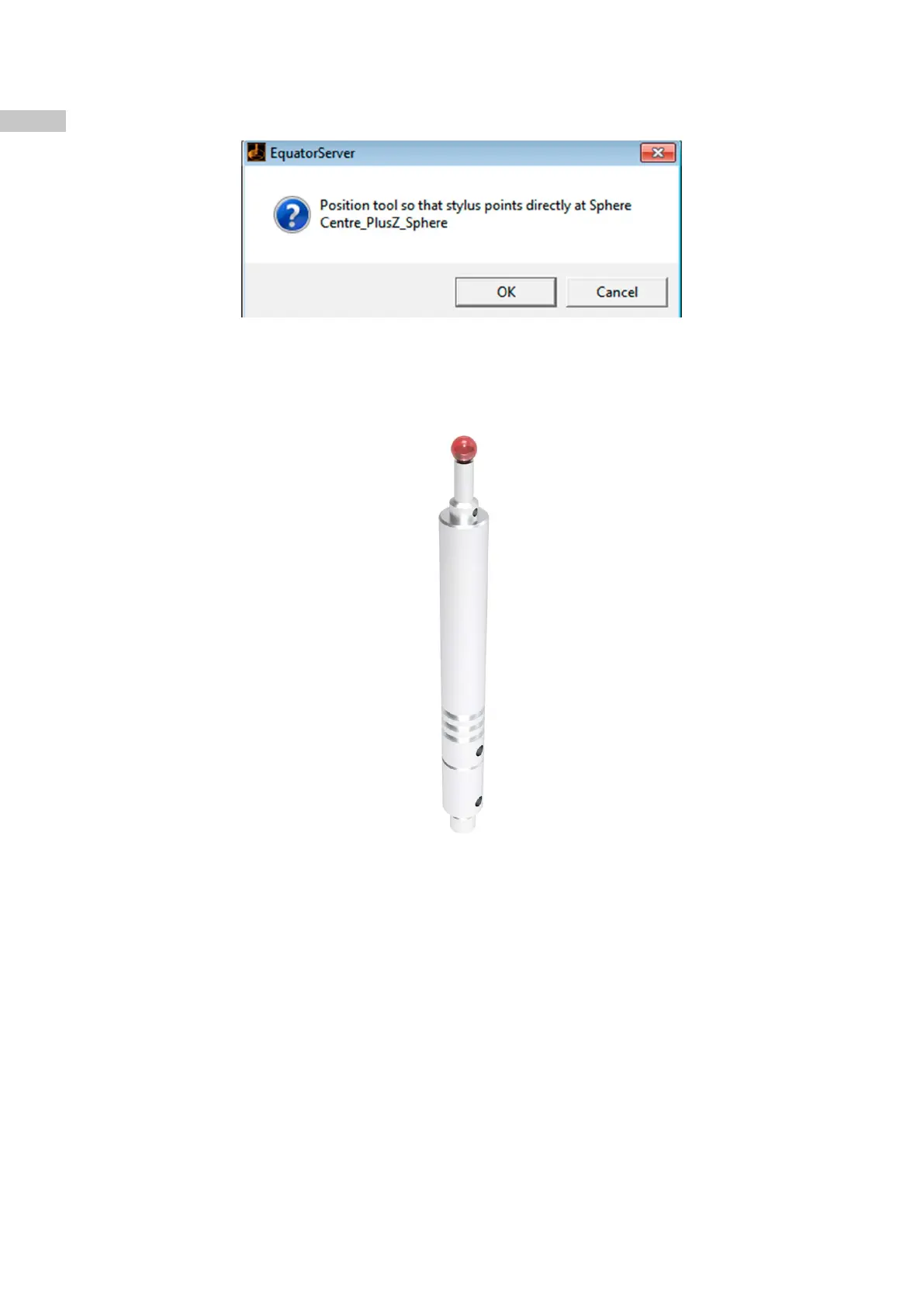

• The following message is displayed (Position tool so that stylus points directly at Sphere Centre_PlusZ_
Sphere).
• Position the tip over the calibration sphere and click “OK”
• The system will automatically measure the calibration sphere; this measurement will pre-set the deflections
of the probe. This measurement will locate the position of the calibration sphere within the machine’s
volume.
68
