Renishaw OMP40-2 - System Installation; Installing OMP40-2 with OMM-2;OMI-2

3.1
System installation
see Section 2, “System installation”
Installing the OMP40-2 with OMM-2 receiver with OSI or OSI-D
interface or OMI-2 / OMI-2T / OMI-2H interface / receiver
Operating envelope
When used with the OMM-2 receiver with OSI or OSI-D interface or the OMI-2 / OMI-2T / OMI-2H
interface / receiver, the OMP40-2 uses modulated transmission.
Natural reflective surfaces within the machine may increase the signal transmission range.
Coolant and swarf residue accumulating on the probe or receiver / interface windows will have a
detrimental effect on transmission performance. Wipe clean as often as necessary to maintain
unrestricted transmission.
WARNING: Ensure the machine tool is in a safe condition and power is removed before removing
covers. Only qualied persons should adjust switches.

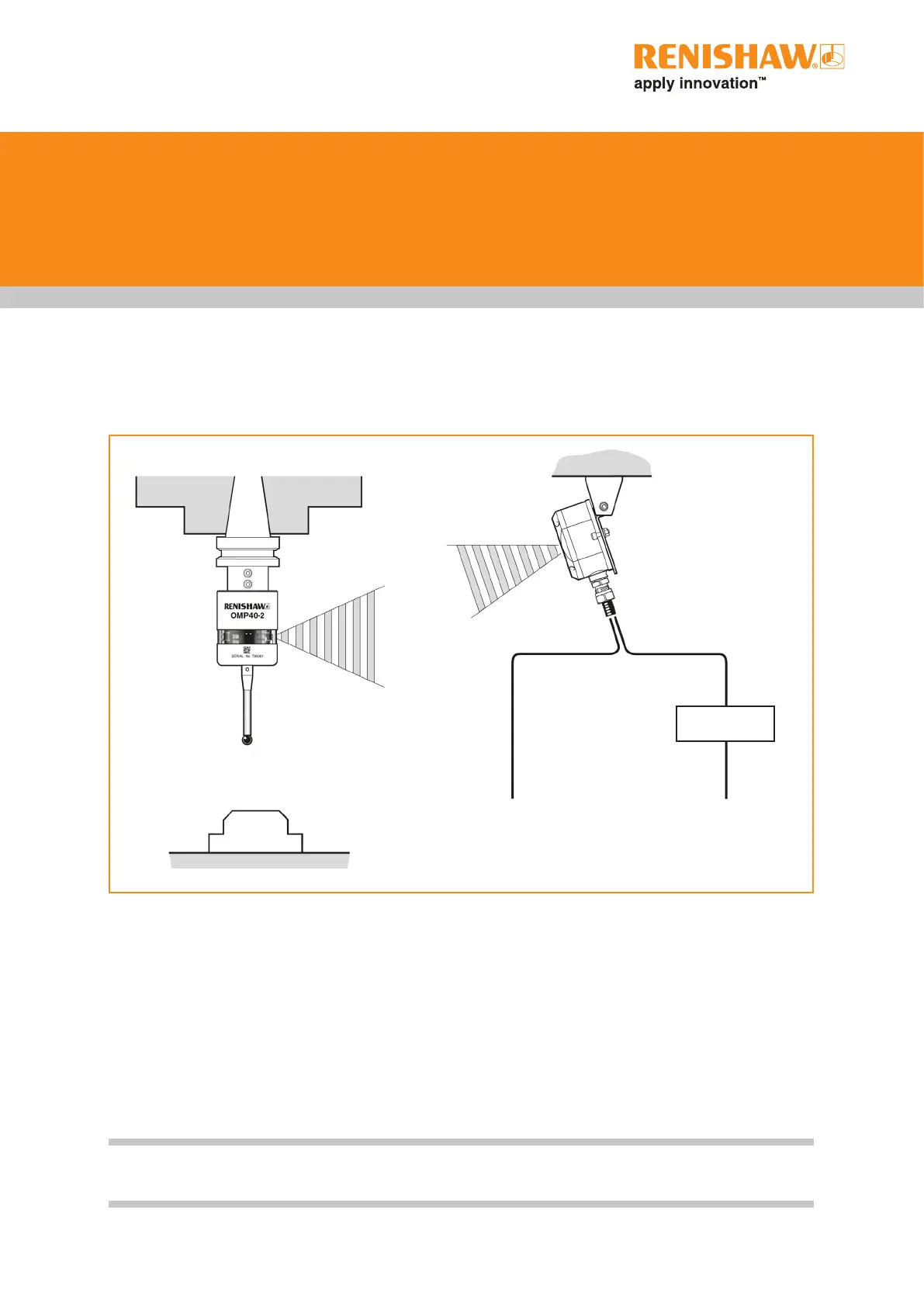

OMP40-2 probe
Workpiece
CNC machine
controller
OMI-2 / OMI-2T
or OMI-2H
OMM-2
CNC machine
controller
OSI or OSI-D
interface unit
