Renishaw OMP40-2 - Master Reset Function

OMP40-2 installation guide
4.4
Trigger Logic
Master reset function
OMP40-2 features a master reset function to assist users who have mistakenly changed the probe
settings into an unintended state.
The application of the master reset function will clear all current probe settings and return the probe to
default settings.
The default settings are as follows:
• Optical switch-on
• Optical switch-off
• Enhanced trigger filter off
• Modulated PROBE 1
• Standard optical power
The default settings may not be representative of the required probe settings. Further configuration of
OMP40-2 may subsequently be necessary to achieve the required probe settings.

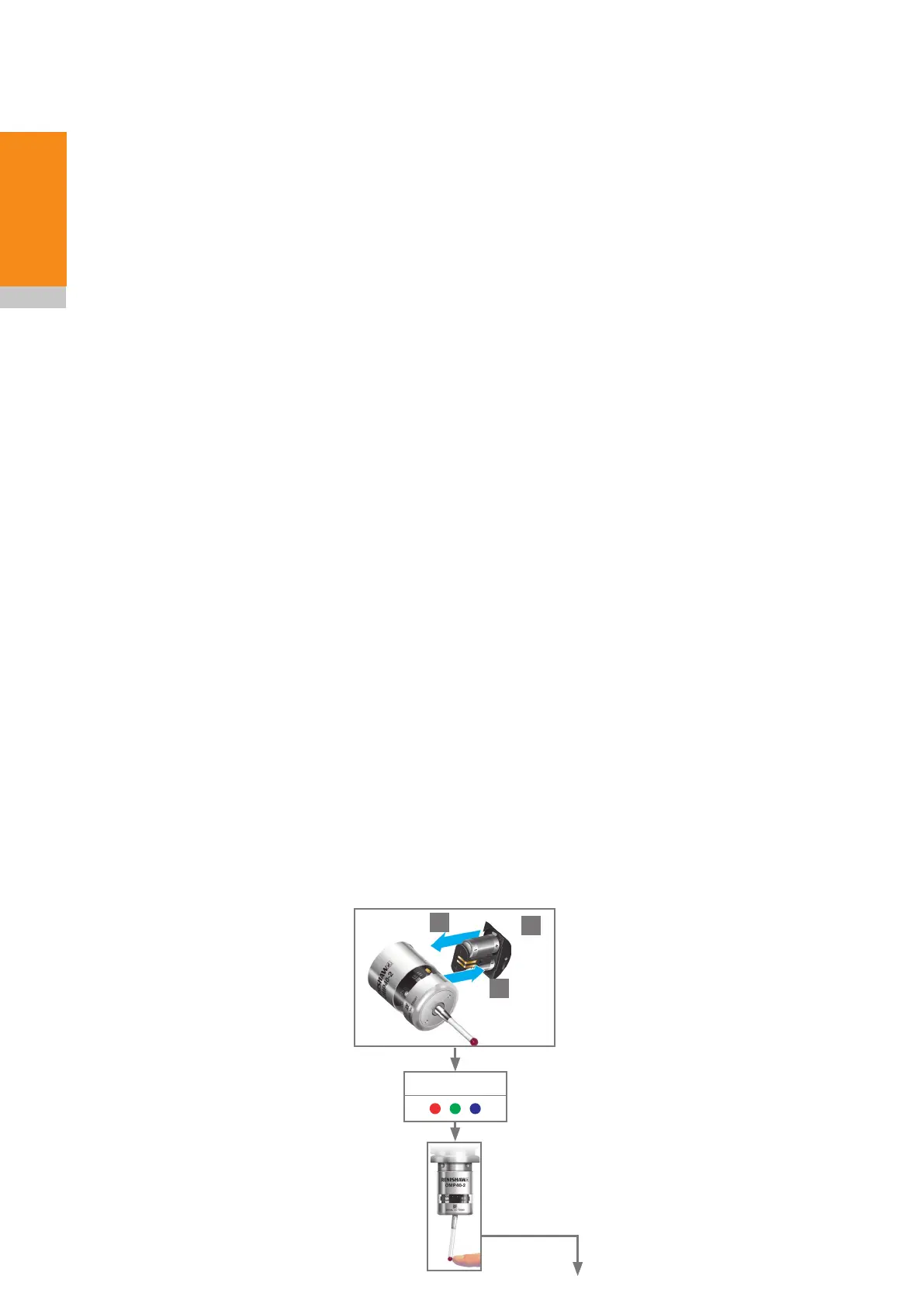

To reset the probe
1. Insert the batteries or, if they have already been installed, remove them for five seconds and then
refit them.
Following the LED check, immediately deflect the stylus and hold it deflected until eight red flashes
have been observed (if the battery power is low, each red flash will be followed by a blue flash).
Keep the stylus deflected until the “Switch-off method” setting is displayed, then release it.
2. Hold the stylus deflected for 20 seconds. After this the status LEDs will proceed to flash yellow
eight times. A confirmation for master reset is required, if nothing is done the probe will timeout.
To confirm that a master reset is required, release the stylus and then hold the stylus deflected
again until the eight yellow flash sequence has ended. This action will clear all probe settings and
return the probe to default settings. Following an LED check the OMP40-2 will then go back into
Trigger Logic and will display “Switch-off method”.
3. Further configuration using Trigger Logic may be necessary to achieve the required probe settings.
1
> 5 s
2
3

LED check
1.
