OMP40M system
OMP40M system
OMP40M is a special modular version of OMP40-2 which has an enhanced window and metal battery
cassette. It enables probe inspection of part features inaccessible to OMP40-2, by fitting selected
adaptors and extensions as shown below.
See page 9.1, “Parts list”, for more information.

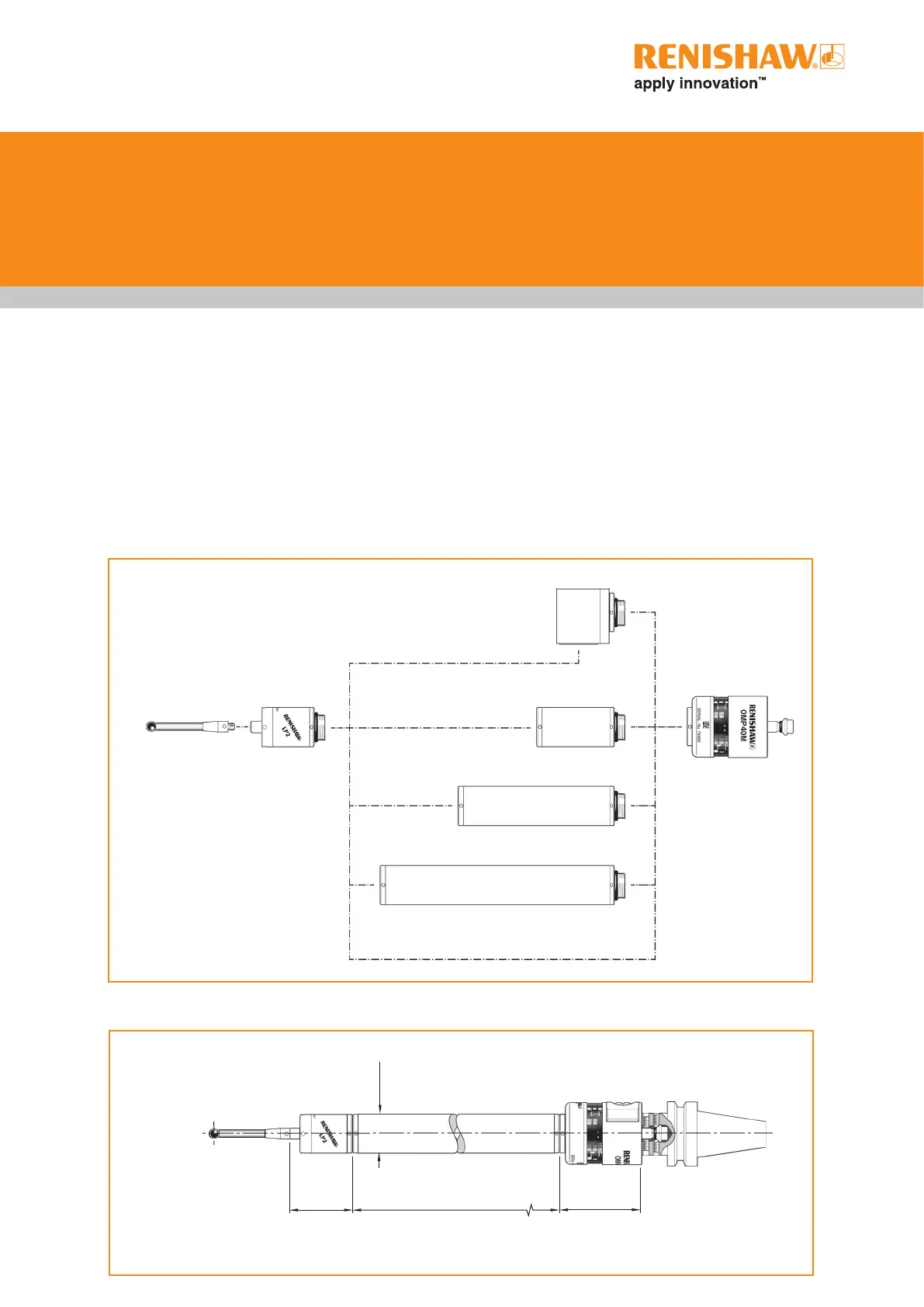

OMP40M dimensions
M4 stylus
LP2 probe
LPE3 extension bar (150mm)
LPE2 extension bar (100mm)
LPE1 extension bar (50mm)
MA4 90° adaptor
OMP40M module
Dimensions given in mm (in)
54
(2.13)
50 / 100 / 150
(1.97 / 3.94 / 5.91)
40.75
(1.60)
Ø25
(Ø0.98)
