Renishaw OMP40-2 - Trigger Logic; Reviewing the Probe Settings

4.1
Key to the symbols
LED short flash
LED long flash
Switch-off method
Optical off
or
Short timeout
12 s
or
Medium timeout
33 s
or
Long timeout
134 s
LED check
Probe in standby mode (after 8 seconds)

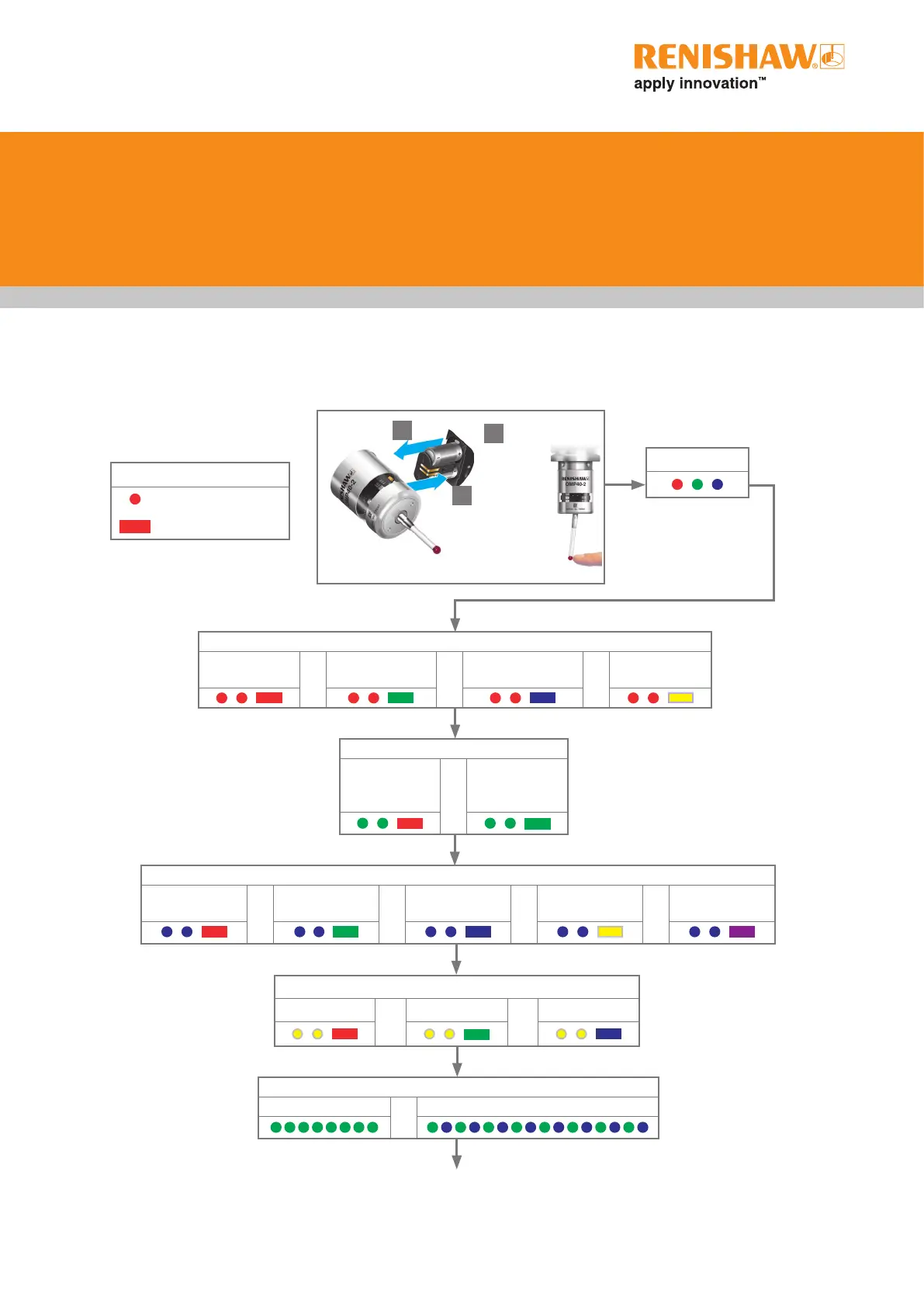

Reviewing the probe settings
Trigger Logic™
see Section 3, “Trigger Logic™”
1
> 5 s
2
3
×
Enhanced trigger filter
Off
0 ms
or
On
10 ms
Optical transmission method
Legacy
(start filter off)
or
Legacy
(start filter on)
or
Modulated
PROBE 1
or
Modulated
PROBE 2
or
Modulated
PROBE 3
Optical power
Low
or
Standard
or
Ultra low
Battery status
Battery good
or
Battery low
