OMP40-2 installation guide
3.2
System
installation
OMP40-2
OMM-2
OMI-2T
OMI-2H
OMI-2
0°
Optical centre line
60°
45°
45°
15°
30°
30°
15°
60°
0°
60°
45°
45°
15°
30°
30°
15°
60°
75°
4 (13.1)
3 (9.8)
2 (6.5)
5 (16.4)
4 (13.1)
3 (9.8)
2 (6.5)
5 (16.4)
75°
75°
75°
Typical plot at 20 °C (+68 °F) 360° transmission around probe axis in m (ft)
1 (3.3)
1 (3.3)
Switch-on / switch-off
Operating – standard power mode
Operating – low power mode
Operating – ultra low power mode
CAUTION:
If two or more systems are operating in close proximity to each other, take care to ensure that signals
transmitted from the OMP40-2 on one machine are not received by the receiver on the other machine,
and vice versa. When this is the case it is recommended that the OMP40-2 low or ultra low optical
power is used and that the low range setting is used on the receiver.
Positioning the OMM-2 receiver with OSI or OSI-D interface or OMI-2 / OMI-2T /
OMI-2H interface / receiver
WARNING: Ensure the machine tool is in a safe condition and power is removed before removing
covers. Only qualied persons should adjust switches.
To assist in nding the optimum position for the OMM-2 receiver with OSI or OSI-D interface or the
OMI-2 / OMI-2T / OMI-2H receiver / interface, signal condition is indicated on a multicoloured LED.

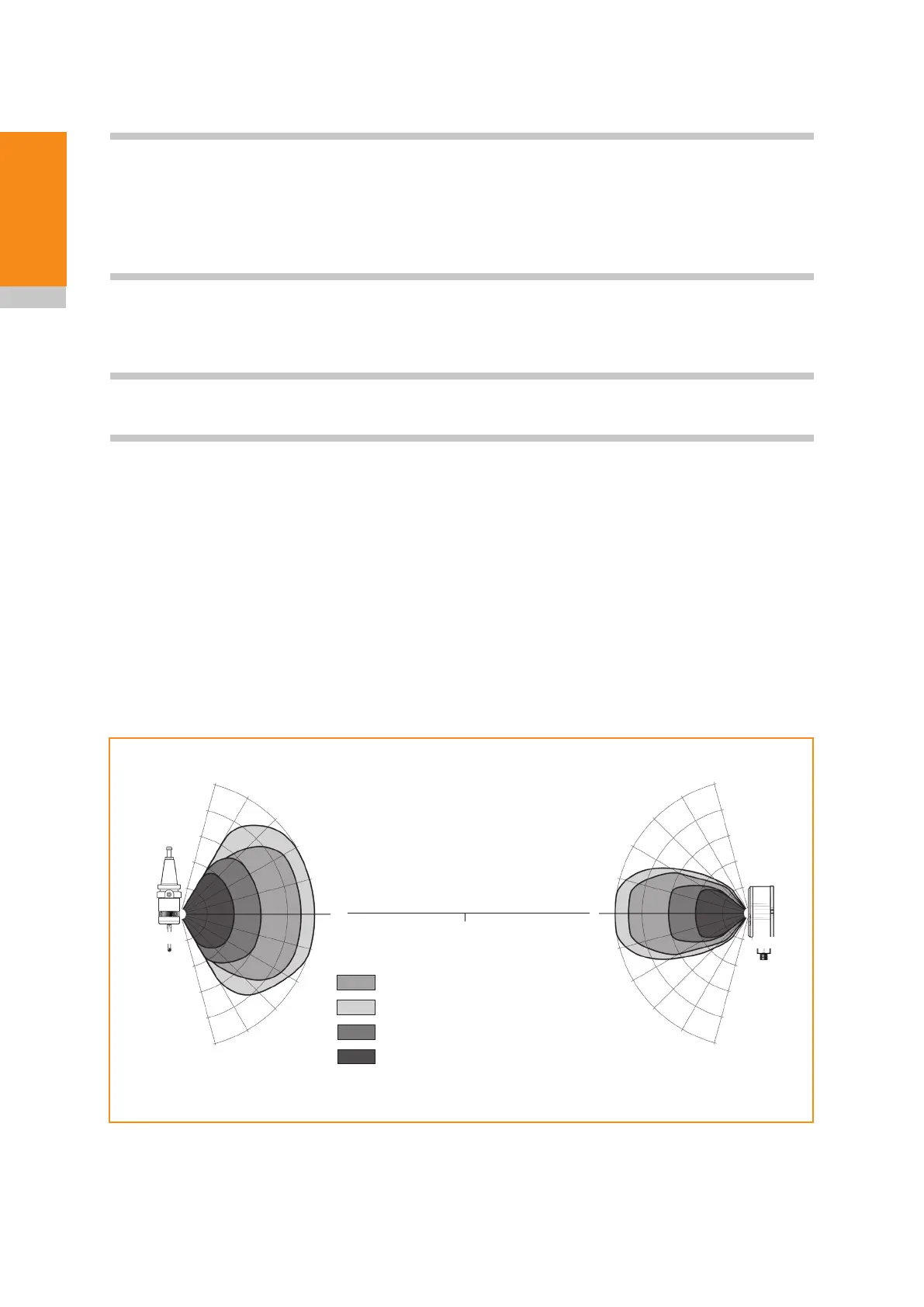

Performance envelope when using the OMP40-2 with a OMM-2 receiver or OMI-2 / OMI-2T or
OMI-2H interface / receiver (modulated transmission)
The diodes of the OMP40-2 and the OMM-2 receiver / OMI-2 / OMI-2T / OMI-2H interface / receiver
must be in each other’s field of view and within the performance envelope shown. The OMP40-2
performance envelope is based on the optical centre line of the OMM-2 / OMI-2 / OMI-2T / OMI-2H
being at 0° and vice versa.
