Renishaw OMP40-2 - Stylus On-Centre Adjustment

3.9
System installation

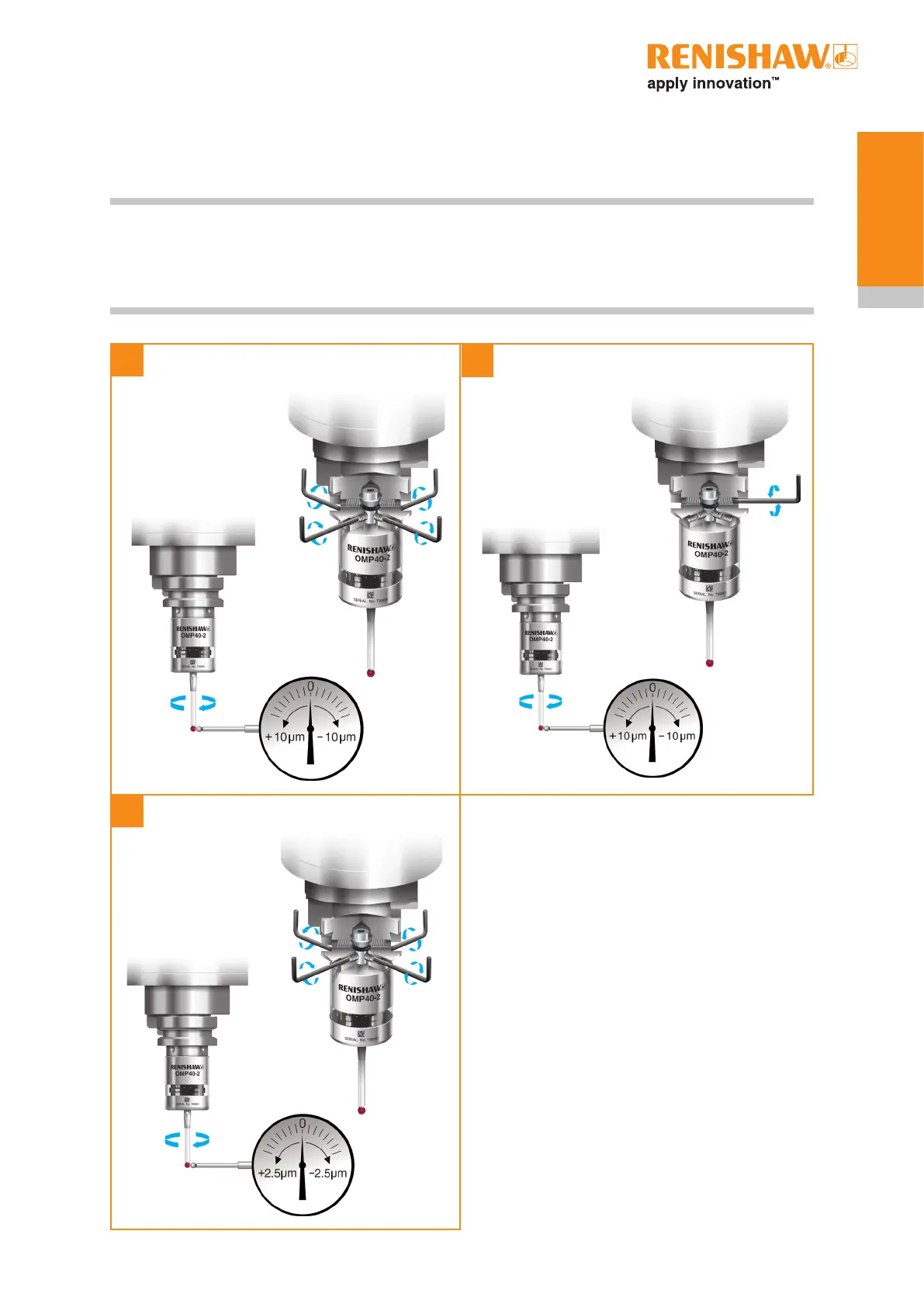

Stylus on-centre adjustment
2
1.5 Nm – 2.2 Nm
(1.1 lbf.ft – 1.6 lbf.ft)
NOTES:
If a probe and shank assembly is dropped, it must be rechecked for correct on-centre adjustment.
Do not hit or tap the probe to achieve on-centre adjustment.
× 2
1
× 4
360° 360°
3
1.5 Nm – 2.2 Nm
(1.1 lbf.ft – 1.6 lbf.ft)
