OMP40-2 installation guide
3.6
System
installation
Stylus weak link
NOTE: Must be used with steel styli. For optimum metrology performance do not use a weak link with
ceramic or carbon bre styli.

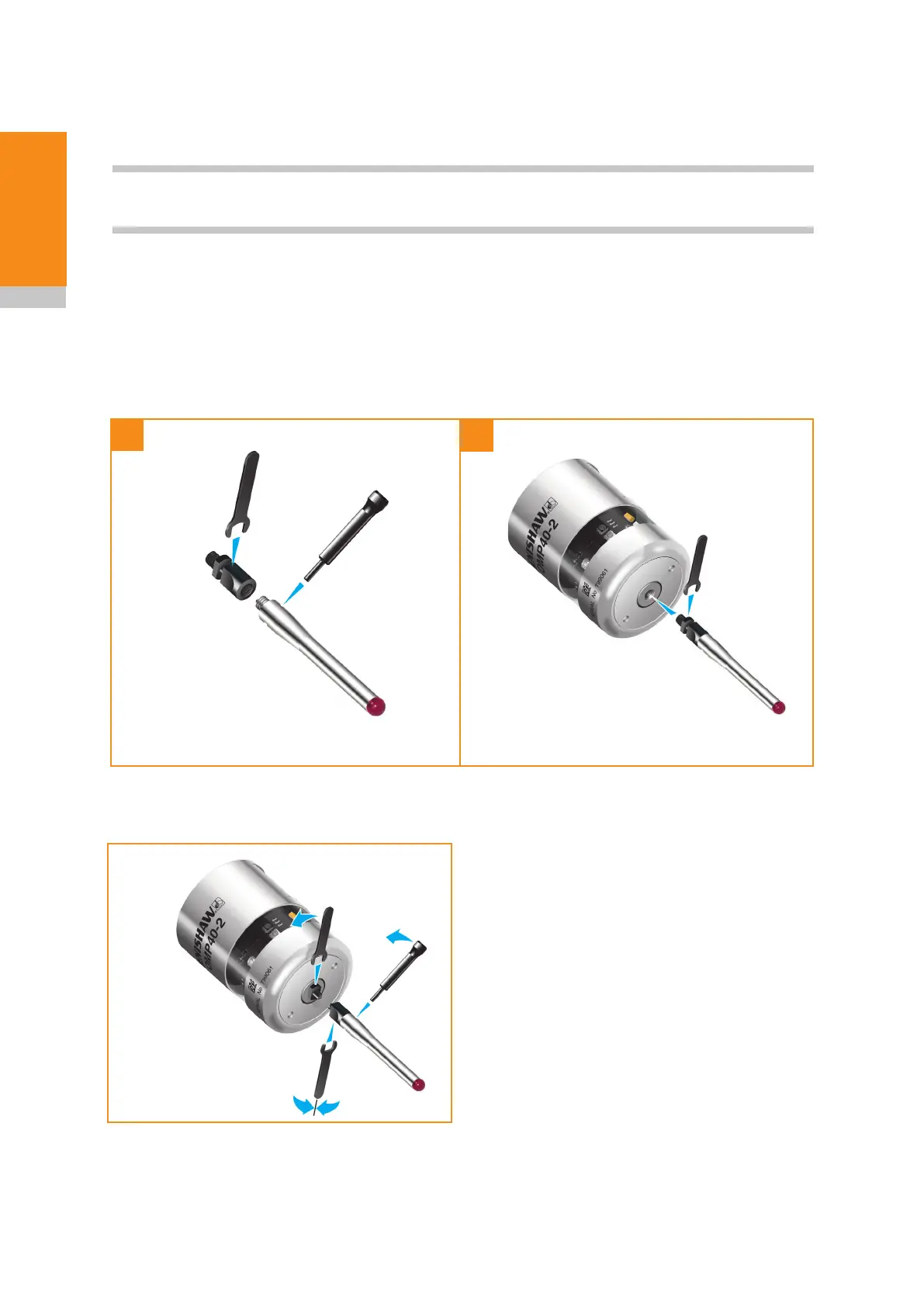

Fitting a stylus with a weak link onto the OMP40-2
In the event of excessive stylus overtravel, the weak link is designed to break, thereby protecting the
probe from damage.
Take care to avoid stressing the weak link during assembly.
Removing a broken weak link
1
1.8 Nm – 2.2 Nm
(1.3 lbf.ft – 1.6 lbf.ft)
2
5 mm A/F
2 Nm (1.7 lbf.ft)
